SM482_TRM(Ver3.8_CS14.24)_2EE66 - 第110页
Page SAMSUNG TECHWIN 106 SM482(L) AIR Ass’y(4/5) AIR P ANEL ASSY AIR INDICA TOR CABLE ASSY FEEDER BASE ASSY (ST) FEEDER BASE ASSY(REAR-ST) FEEDER BASE ASSY(FRONT -ST) Feeder Base U2-4-4*2.5 J1301 187 KQ2L12-04 J1301 187 …
Page
SAMSUNG TECHWIN
105
SM482(L)
AIR Ass’y(3/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC14-900724 PLUG [PT 1/8] 1
2 HP14-900026 SOLENOID VALVE [K180-4E1-21-DC24V] 2
3 HP14-900092 CHECK VALVE[AKH06-00] 1
4 HP06-900271 UNION Y FITTING [BUYD06-04] 1
5 HP09-900163 SILENCER [AN101-01] 1
6 HP06-900048 ELBOW FITTING [KQ2L06-M5] 1
7 HP06-900014 FITTING [KQ2L06-01/PL6-01] 5
8 HP06-900018 FITTING [KQ2U06-00/PY6M] 5
9 J6711019A UNION Y FITTING[PU6M] 1
10 HP14-900089 SPEED CON[AS2201F-01-06S] 1
11 HP06-900293 ELBOW FITTING[PT18EF] 2
12 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
13 HP14-900090 SPEED CON[ASP330F-01-06S] 1
14 HP06-900300 PLUG[KS-4-M5-SA34698KR] 2
15 FC28-000105 NIPPLE-STRAIGHT NIPPLE M3/8-ID9.5;BRASS 1
16 HP13-000037A TUBE-M-TUBE UML-412 3.7M;12x4 1
17 HP13-000042 TUBE-NYLON TUBE N2-4-12x9-MW;12,OD12/ID9 1
18 HP11-000059 PUMP-PUMP KHA400A-301-G1 1
19 HP06-000250 FITTING-FITTING KQ2VT12-03S;ELBOW 1
20 HP06-000234 FITTING-KQ2R08-12;STRAIGHT 1
21 HP06-900046 JOINT KQ2R04-08 1
22 HP06-000235 FITTING-KQ2U12-00;Y-SHAPE,ONETOUCH 1
23 HP09-000148 MANIFOLD-AIR_KM11;PC 1
24 HP06-900093 STRAIGHT FITTING[KQ2H04-00/PU4] 1
Page
SAMSUNG TECHWIN
106
SM482(L)
AIR Ass’y(4/5)

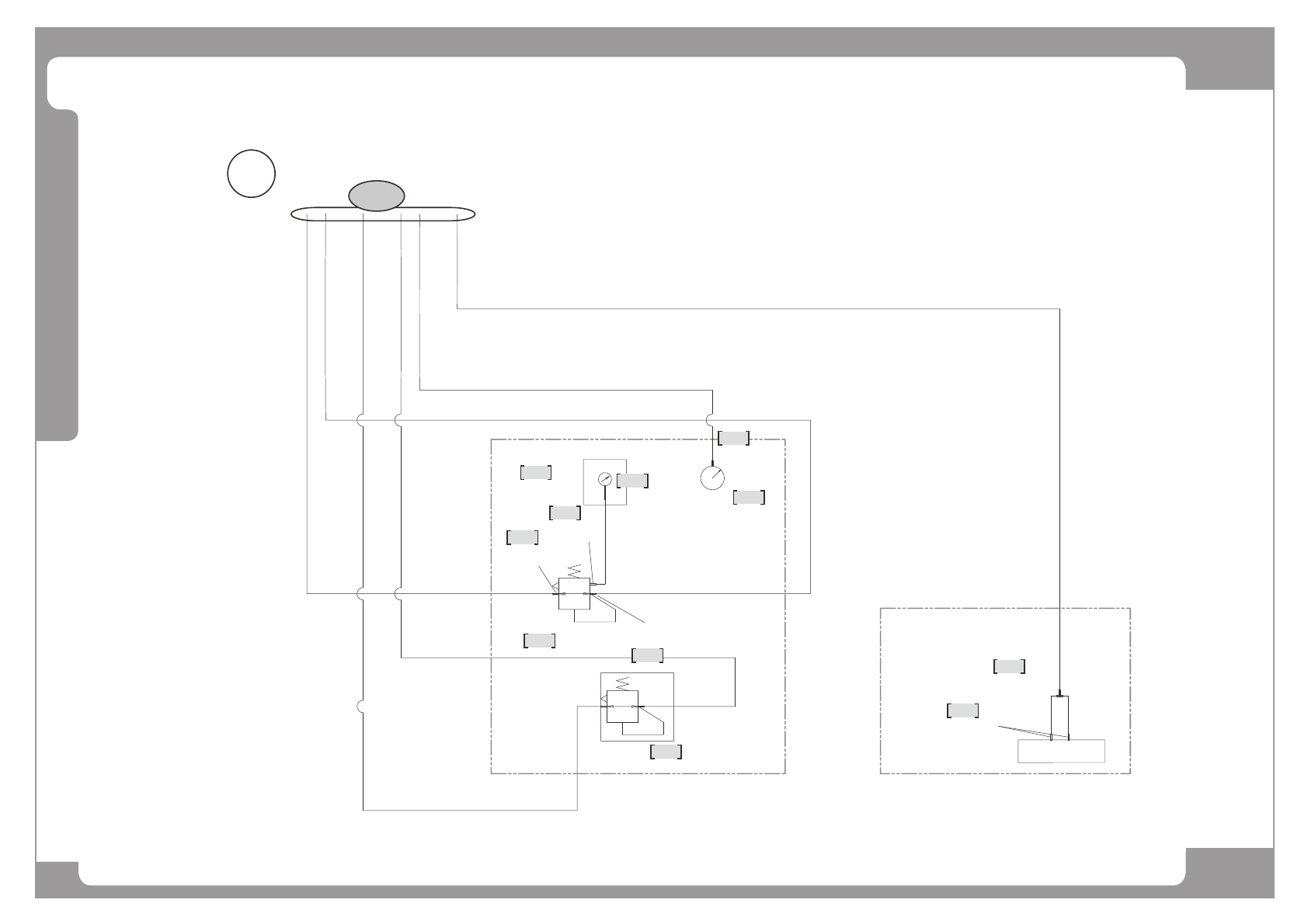

AIR PANEL ASSY
AIR INDICATOR CABLE ASSY
FEEDER BASE ASSY (ST)
FEEDER BASE ASSY(REAR-ST)
FEEDER BASE ASSY(FRONT-ST)
Feeder Base
U2-4-4*2.5
J1301187
KQ2L12-04
J1301187
KQ2L12-04
U2-4-12*8
J6711028A
KQ2L04-01
HP09-000150
SPABT-P10-R18-2N-K1-
J6711147A
SQL04-M5-W
J6709012A
TAR4000-04
J61191167A
FITTING KQ2F04-01
J61191172A
METER GZ46-K-01-C1
J67091014A
AR08-T2-DOMO-J346A
U2-4-12*8
U2-4-4*2.5
J6711168A
BUYD06-04
U2-4-4*2.5
2-J1301188
KQ2L04-M5
전면
U2-4-6*4
U2-4-6*4
U2-4-12*8
U2-4-4*2.5
U2-4-6*4
U2-4-12*8
1
2
3
4
5
6
7
8
6
C
A-C
9
10
Page
SAMSUNG TECHWIN
107
SM482(L)
AIR Ass’y(4/5)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP06-900043 JOINT KQ2F04-01 1
2 HP09-000150 COMPONENTS,ELECTRIC-SPABT-P10-R18-2N-K1- 1
3 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
4 TE07-900096 METER GZ46-K-01-C1 1
5 HP06-900056 ELBOW FITTING KQ2L04-01/SQL04-01S-W 2
6 HP06-900026 ELBOW FITTING PL12-04/SQL12-04S-W 2
7 HP09-900112 REGULATOR [TAR4000-04] 1
8 HP09-900123 REGULATOR AR08-T2-D0M0-J346A 1
9 HP06-900271 UNION Y FITTING [BUYD06-04] 1
10 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
