Page SAMSUNG TECHWIN 17 SM482(L) Feeder Base Ass'y - ST NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC07-000033B BLOCK-VERTICAL LOCA TOR;ME1:S teel 1 2 J7057026 2C CAP-T OP PLA TE 5 3 HP…
Page
SAMSUNG TECHWIN
16
SM482(L)
Feeder Base Ass'y - ST
5
13
A
6
7
9
8
5
3
3
12
14
14
14
10
10
10
1
4
11
2
Page
SAMSUNG TECHWIN
17
SM482(L)
Feeder Base Ass'y - ST
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC07-000033B BLOCK-VERTICAL LOCATOR;ME1:Steel 1
2 J70570262C CAP-TOP PLATE 5
3 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2
4 FC05-000122A BASE-SM411_FEEDER_BASE_BODY2;GCD 450-10 1
5 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
6 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
7 AM03-000694A ASSY,BOARD-FBLN 1
8 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
9 AM03-000693A ASSY,BOARD-FBRN 1
10 FC18-901830 BUTTON HEAD SOCKET SCREW M3*6 (SUS) 6
11 FC18-902866 FLAT_HEAD_CROSS_SCREW M3*8_BLACK 32
12 FC18-902757 SOCKET HEAD CAP SCREW M5*15 (NI/ZN) 32
13 FC14-000876 COUPLER 60 HP06-900169
14 FC18-902787 SOCKET HEAD CAP SCREW M8*20 (NI/ZN) 7
Page
SAMSUNG TECHWIN
18
SM482(L)

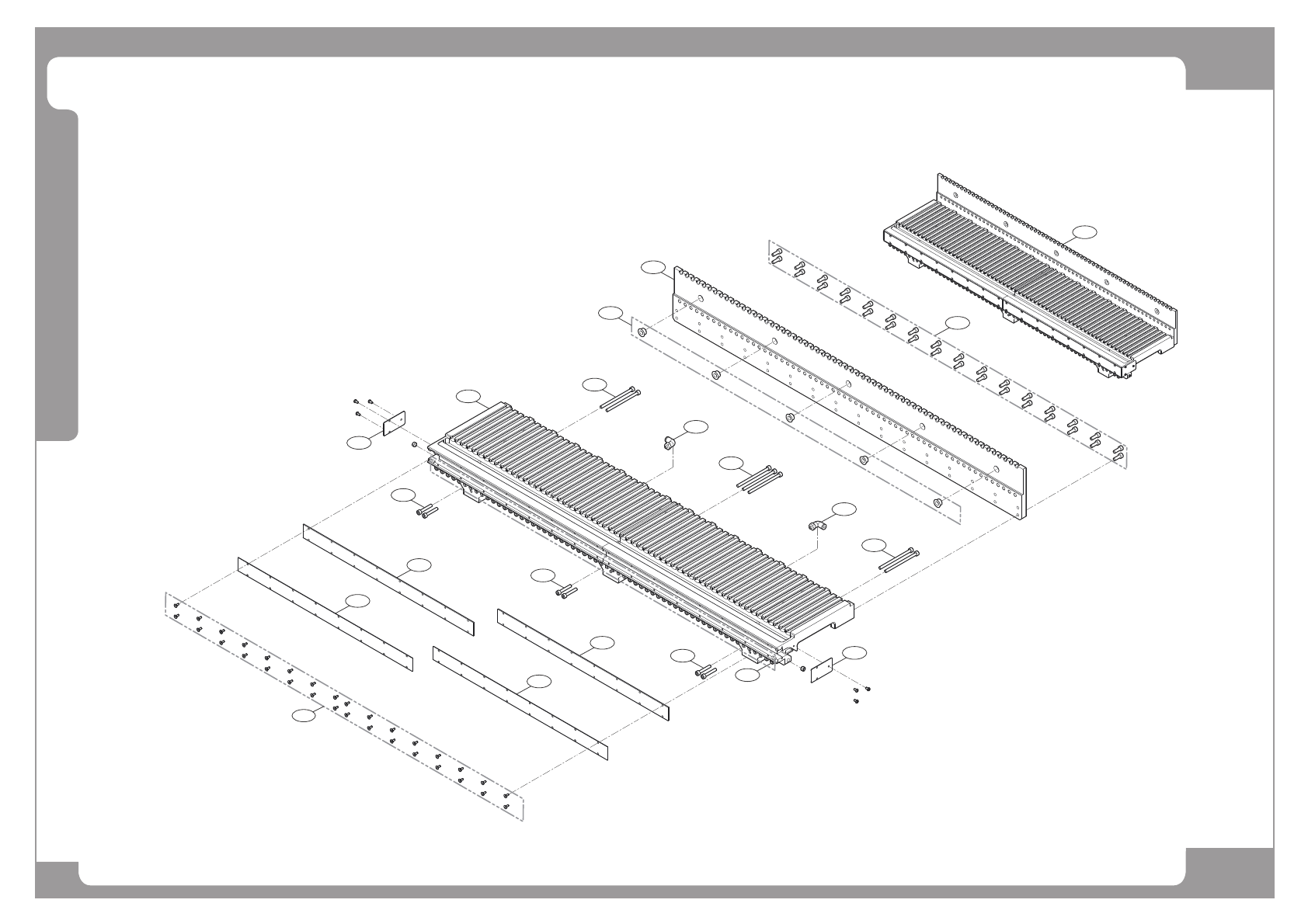

Feeder Base Ass’y - DC (1/4)
4
3
2
13
1
4
17
16
4
18
5
6
8
9
19
20
7
20
10
11
14
12
4
18
17
15
16
14
12
13
19
