Page SAMSUNG TECHWIN 30 SM482(L) Stage CAM Ass'y 1 1 2 2 9 9 3 26 26 25 4 7 10 11 12 8 5 6 13 14 15 16 17 18 19 19 24 23 22 20 27 21 11
Page
SAMSUNG TECHWIN
29
SM482(L)
Page
SAMSUNG TECHWIN
30
SM482(L)

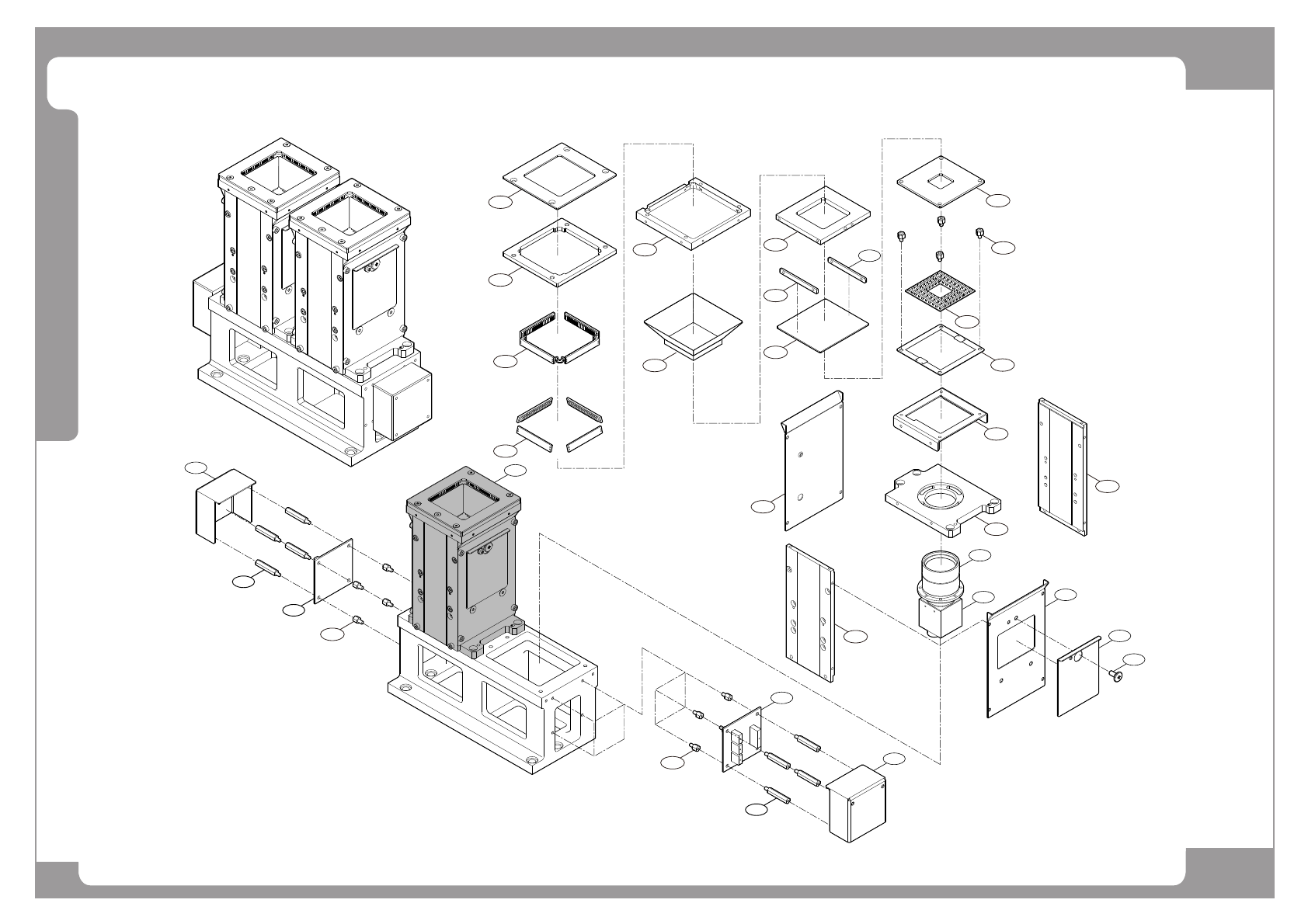

Stage CAM Ass'y
1
1
2
2
9
9
3
26
26
25
4
7
10
11
12
8
5
6
13
14
15
16
17
18
19
19
24
23
22
20
27
21
11
Page
SAMSUNG TECHWIN
31
SM482(L)
Stage CAM Ass'y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70590095C BOARD COVER 1
2 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
3 FC15-001295B LIGHT_COVER 1 FC15-001295A
4 FC09-002220B BRACKET-LIGHT_G_1 1 FC09-002220A
5 J90600075B STAGE SIDE LIGHT BOARD ASSY STAGE SIDE LIGHT 1
6 J90600074B STAGE OUTER LIGHT BOARD ASSY STAGE OUTER LIGHT 1
7 FC09-002219A BRACKET-LIGHT_G_2 1
8 FC15-001491A COVER-LIGHT COVER 1
9 FC29-900611 HEX SUPPORT 8
10 FC15-001294B COVER-PROFILE_2 1 FC15-001294A
11 FC09-002218A BRACKET-GLASS_STOP 2
12 EP12-000044A GLASS,OPTICS-GLASS 1
13 PT02-000048A DIFFUSER,OPTIC-DIFFUSER 1
14 FC29-900610 HEX SUPPORT 4
15 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
16 FC09-002222A MT82P-OP105A-PCB_BASE_2 1
17 FC09-002221A BRACKET-PCB_BASE_1 1
18 FC05-000225A MT82P-OP101A-BASE 1
19 FC15-001293A MT82P-OP110A-PROFILE_1 2
20 AM03-007709A ASSY,OPTICS-F45-60-ASSY 1
21 PT02-900001 CCD CAMERA 1
22 FC15-001290A COVER_1 1
23 FC15-001292A COVER_COMP 1
24 J706600087 T LINK1 SHAFT1 1
25 FC15-001291A COVER_2 1
26 FC29-900613 HEX SUPPORT 8
27 AM03-007707B ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1
AM03-008165B ASSY,STAGE MODULE-SM482_STAGE_NON_M_35 1 OPTION
AM03-008166B ASSY,STAGE MODULE-SM482_STAGE_NON_M_45 1 OPTION
