Page SAMSUNG TECHWIN 38 SM482(L) Control Rack Ass’y 1 8 6 7 5 5 4 3 2
Page
SAMSUNG TECHWIN
37
SM482(L)
Cover Ass’y (3/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP07-901528 FAN_FILTER 120MM(NMB) 2
2 EP07-901508 COOLING FAN[4715MS-22T-B50] 4
3 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
4 FC15-000952A COVER-LOWER_SIDE_1 1
5 FC15-000949B COVER-LOWER FL 1 FC15-000949A
6 FC29-900217 SLIDE_LATCH A3-40-625-12 1
7 FC15-000960A LOWER_OPEN_DOOR-A 1
8 FC29-900144 DRAWER PULL [HD-108] 2
9 FC15-001138A COVER-COVER_LFM 2
10 FC15-001341A COVER-FB SIDE COVER FL 1
11 FC15-001344A COVER-FB COVER FRONT 1
12 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2
13 FC15-000948B COVER-LOWER FR 1 FC15-000948A
14 FC29-900217 SLIDE_LATCH A3-40-625-12 1
15 J70511018B CABLE_DUCT_S-V 2
16 J70521049A SIDE_COVER_SUPPORT 1
17 FC15-000944B LOWER_SIDE_2_R 1 FC15-000944A
18 FC15-000949B COVER-LOWER FL 1 FC15-000949A
19 FC15-000961A COVER-OPEN_DOOR_B 1
20 FC29-900217 SLIDE_LATCH A3-40-625-12 1
21 FC15-000961A COVER-OPEN_DOOR_B 1
22 FC29-900217 SLIDE_LATCH A3-40-625-12 1
23 FC15-000951B COVER-LOWER RR 1 FC15-000951A
24 FC15-001340A COVER-FB SIDE COVER FR 1
25 FC15-001342A COVER-FB SIDE COVER RR 1
26 FC15-001345A COVER-FB COVER REAR 1
27 FC15-001343A COVER-FB SIDE COVER RL 1
28 FC15-001297A COVER-COVER LFM DC SM481 2
29 FC15-001744A COVER-LOWER_SIDE_R2;SPCC 1
Page
SAMSUNG TECHWIN
38
SM482(L)

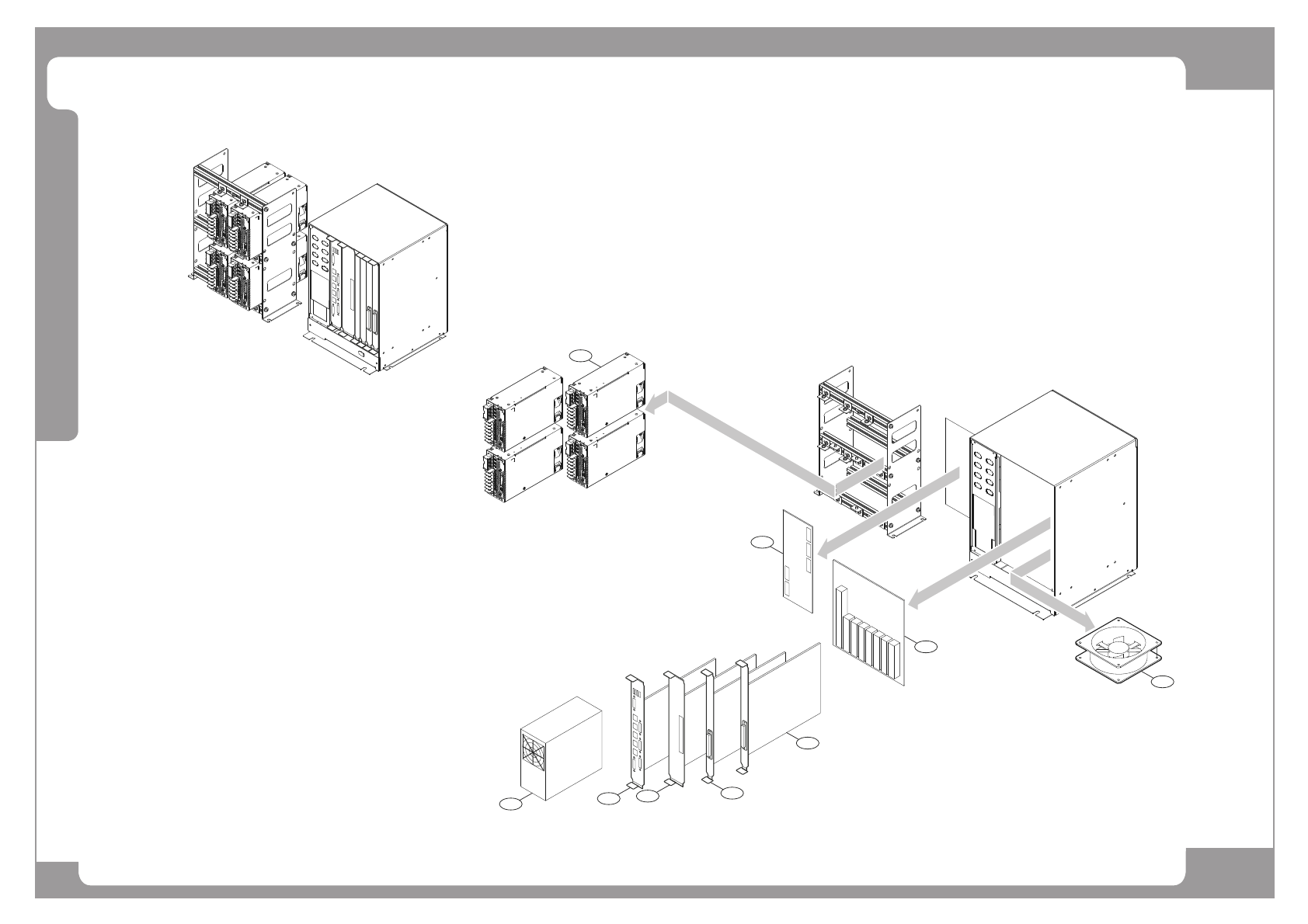

Control Rack Ass’y
1
8
6
7
5
5
4
3
2
Page
SAMSUNG TECHWIN
39
SM482(L)
Control Rack Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 400W 4
2 EPO6-000384 SUPPLY,POWER,AC-DC-STW350-ABDDATX 1
3 CD05-000059 MOTHERBOARD,CPU-CPCI-6626;CPCI,HM65 1
4 J9060364A IT FEEDER MASTER BOARD ASSY 1
5 EP06-000338 PROCESSOR BOARD-NT-A8 2
6 AM03-014089A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT_N 1
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359A VISION_IF_BD 1
