Page SAMSUNG TECHWIN 40 SM482(L) Base Frame Ass’y 1 3 4 5 6 2
Page
SAMSUNG TECHWIN
39
SM482(L)
Control Rack Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 400W 4
2 EPO6-000384 SUPPLY,POWER,AC-DC-STW350-ABDDATX 1
3 CD05-000059 MOTHERBOARD,CPU-CPCI-6626;CPCI,HM65 1
4 J9060364A IT FEEDER MASTER BOARD ASSY 1
5 EP06-000338 PROCESSOR BOARD-NT-A8 2
6 AM03-014089A ASSY,ELECTRIC-MAIN_CPU BOX 6U*8SLOT_N 1
7 AM03-014333A CABLE ASSY-CPU-BOX FAN 1
8 AM06-000359A VISION_IF_BD 1
Page
SAMSUNG TECHWIN
40
SM482(L)

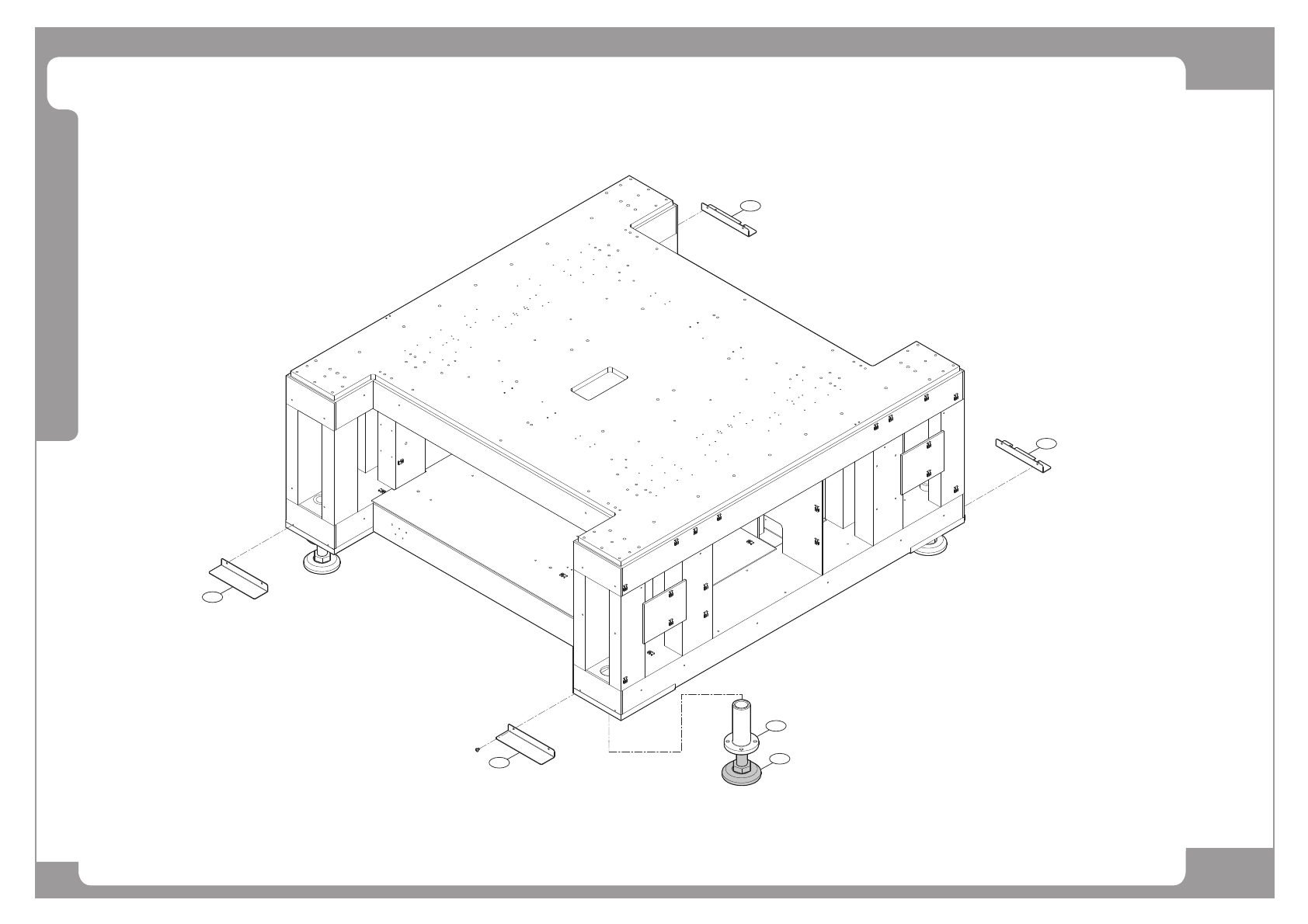

Base Frame Ass’y
1
3
4
5
6
2
Page
SAMSUNG TECHWIN
41
SM482(L)
Base Frame Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000983A COVER BOTTOM FR 1
2 FC15-000984A COVER BOTTOM FL 1
3 FC15-000985A COVER BOTTOM RR 1
4 FC15-000986A COVER-BOTTOM RL 1
5 J7051010D HOUSING-FOOT[J7051010D] 4
6 FC28-000176 ASSY,MAIN FRAME-MFUR-98(M30-2.0P) 4 AM03-000098
