Page SAMSUNG TECHWIN 49 SM482(L) X-Y Frame Ass'y(4/4) NO. P ART NO. P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 J70541 1 15A COVER_BKT J70541 1 15A 1 2 FC09-000980B B RACKET -Y_CABLE_DUCT ;SS400 2 3 …
Page
SAMSUNG TECHWIN
48
SM482(L)

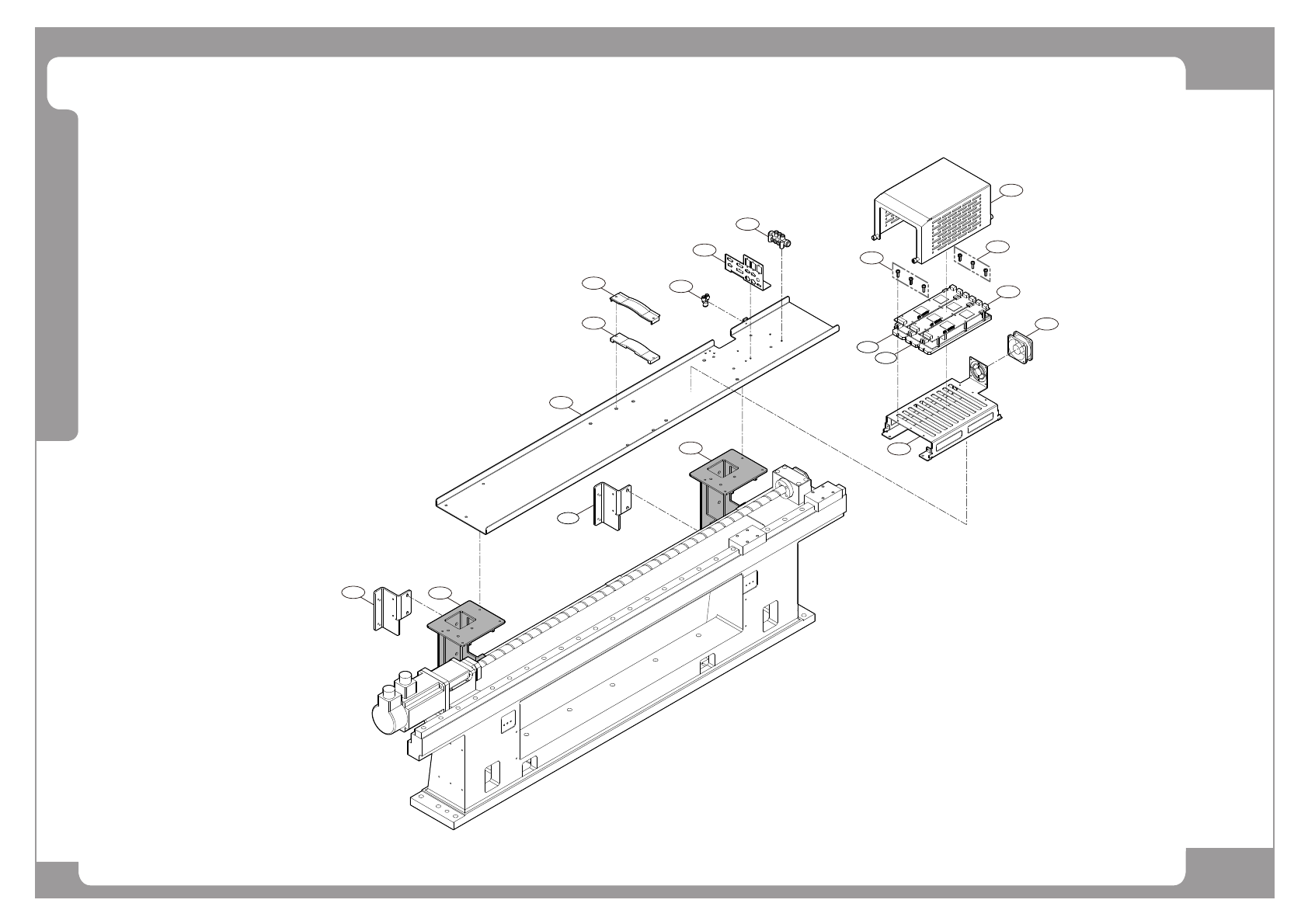

X-Y Frame Ass'y(4/4)
5
6
14
7
9
4
1
2
2
3
8
9
10
11
12
1
10
10
Page
SAMSUNG TECHWIN
49
SM482(L)
X-Y Frame Ass'y(4/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70541115A COVER_BKT J70541115A 1
2 FC09-000980B BRACKET-Y_CABLE_DUCT;SS400 2
3 FC09-001880A BRACKET-SM421_Y_CABLE_DUCT;SPCC 1
4 J7354024A CABLE CUSHION Y[J7354024A] 1
5 J7054256A CUSHION BRACKET Y[J7054256A] 1
6 FC09-000671A BRACKET,CONNECTOR-CONNECTOR_PANEL_Y;SPCC 1
7 HP09-000148 MANIFOLD-AIR_KM11;PC 1
8 FC15-001496A COVER-Z_AMP_482;SPCC 1 FC15-001283A
9 FC18-902639 SEMUS NABE SCREW_M4*16 6
10 AM03-007228B ASSY,ELECTRIC-SM482_HDCB_ASSY 3 AM03-007228A
11 AM03-006409A CABLE ASSY-CABLE ASSY-LR_ZR_DRV_FAN 1
12 FC09-002205B BRACKET-Z_MOTOR_DRIVER_82;SPCC 1 FC09-002205A
13 J70541115A COVER_BKT J70541115A 1
14 HP06-000457 FITTING 1
Page
SAMSUNG TECHWIN
50
SM482(L)

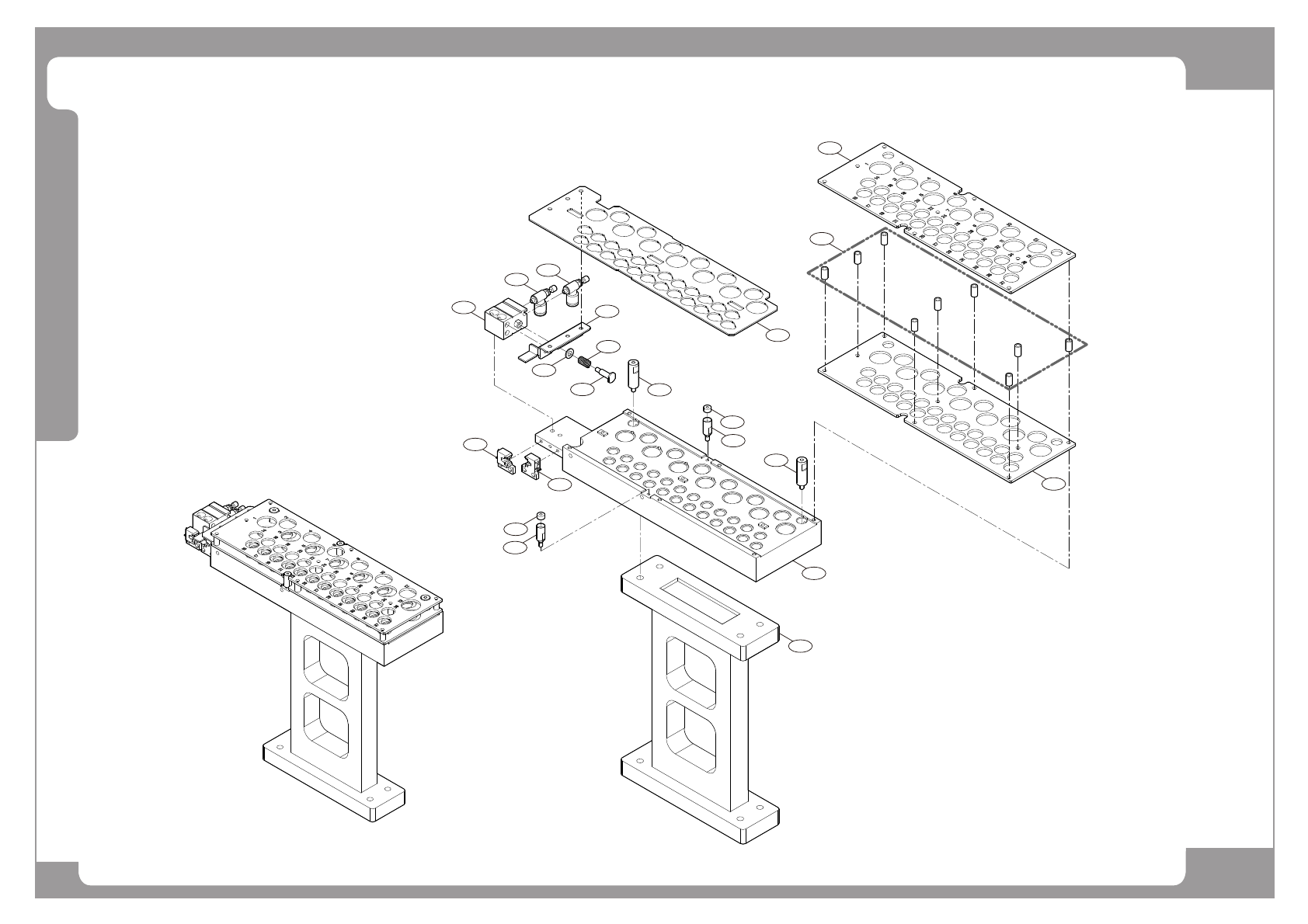

ANC Ass'y
5
14
5
6
11
1
2
9
7
10
16
12
13
15
14
8
13
12
11
3
4
