Page SAMSUNG TECHWIN 54 SM482(L) Conveyor Ass'y(2/4) 1 2 31 2 27 40 3 4 5 3 29 28 41 9 42 3 4 5 24 8 18 8 25 26 33 37 39 28 29 3 28 3 29 6 30 30 8 8 16 8 3 4 5 10 12 3 8 4 5 15 43 17 8 22 23 18 19 19 20 11 12 44 45 …
Page
SAMSUNG TECHWIN
53
SM482(L)
Conveyor Ass'y(1/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-006854A ASSY,CONVEYOR-FIX_RAIL_P 1
2 AM03-006855A ASSY,CONVEYOR-MOVE_RAIL_P 1
3 AM03-006853A ASSY,CONVEYOR-RAIL_TRANSFER_R 2
4 MC05-900044 TIMING BELT 1
Page
SAMSUNG TECHWIN
54
SM482(L)

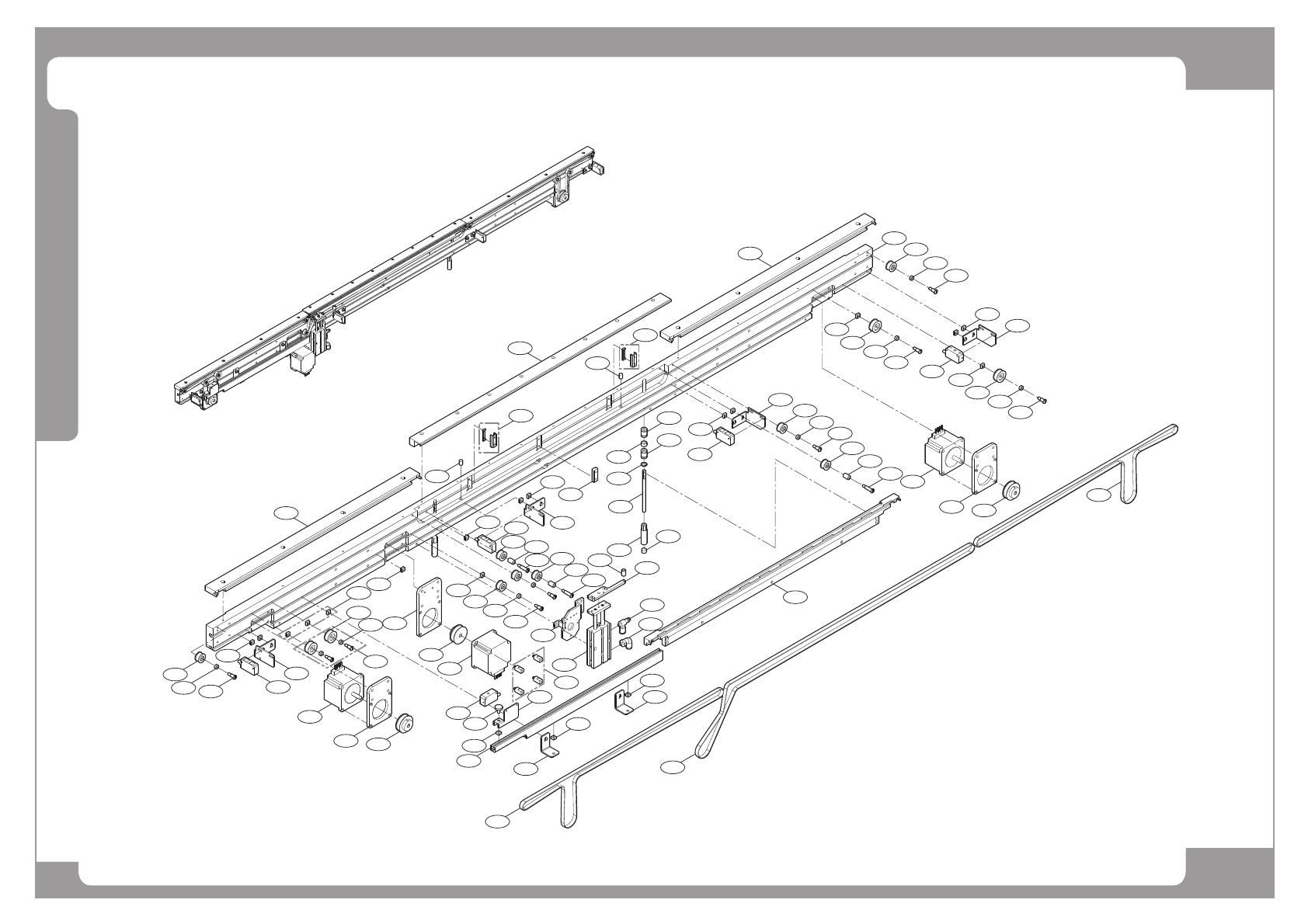

Conveyor Ass'y(2/4)
1
2
31
2
27
40
3
4
5
3
29
28
41
9
42
3
4
5
24
8
18
8
25
26
33
37
39
28
29
3
28
3
29
6
30
30
8
8
16
8
3
4
5
10
12
3
8
4
5
15
43
17
8
22
23
18
19
19
20
11
12
44
45
11
12
13
8
31
32
34
35
36
8
6
38
43
8
8
9
4
5
9
8
21
14
5
7
6
7
4
5
9
4
Page
SAMSUNG TECHWIN
55
SM482(L)
Conveyor Ass'y(2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70530785B PCB GUIDE-FC J70530785B 1
2 J71531048B PCB_GUIDE_END 2
3 J7253007A IDLER 2 8
4 FC18-001478A IDLER SPACER-S 9 J7053047A
5 J7053009A IDLER SHAFT-S2 9
6 EP19-900099 PHOTO SENSOR[E3S-LS3N] 3
7 J70531088B WORK_SENSOR_BRACKET 2
8 J7053184A SQUARE NUT 19
9 J7253006A IDLER 1 4
10 AM03-007403A CABLE ASSY-CONV_BELT2_STEP_MOTOR 1 L460-W400 TYPE CONVEYOR
J90831440B CONV_BELT2_STEP_MOTOR_ASSY 1 L610-W400 TYPE CONVEYOR
11 J70531106A BRACKET_BELT_MOTOR_S J70531106A 2
12 J7153111A TEP MOTOR PULLEY [J7153111A] 3
13 J70531084A BRACKET_BELT_MOTOR_B J70531084A 1
14 J70531083A ALT_MOTOR_SUPPORT J70531083A 4
15 J7053689A QUICK SENSOR KNOB[J7053689A] 1
16 FC09-002034A Q_SENSOR_BKT 1
17 J7153331A RAIL SENSOR[J7153331A] 1
18 J70531086A BRACKET_RAIL J70531086A 2
19 MC05-900068 BELT_410_1 2
20 MC05-900069 BELT_410_F MAM-5P-1517-7W 1
21 J71530399C CLAMP FRONT FRAME 1
22 AM03-007165B CABLE ASSY-SM482_CON_PCB_SENSOR 1 L460-W400 TYPE CONVEYOR
J91671588B CONV_PCB_SENSOR_CABLE_ASSY 1 L740-W460 TYPE CONVEYOR
23 FC09-002808A BRACKET-CON_STOP_CYLINDER_SMC;SPCC 1 J70531089A
24 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1 HP06-900047
25 HP14-900083 THROTTLE VALVE(ELBOW) 1
26 FC30-001359A PLATE-STOPPER_TOP_SMC-CYL;SS400 1 J70531050A
27 J70531029B STOPPER_POST 1
28 J7053770A IDLER SHAFT-M[J7053770A] 3
29 J7053048A IDLER SPACER-M 3
