Conveyor Ass'y(2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
30 MC13-900013 LM SLIDE 2
31 FC29-004427A STOPPER 2 2 J7253009B
32 J7153036A SLIDE GUIDE 1
33 FC29-004426A STOPPER 2 J7253008A
34 FC01-000022A ADJUST SHAFT 2 J7153010B
35 J7153034A CLAMP SHAFT 2
36 FC18-901355 C-RING DIA11(HOLE) 2
37 MC06-900006 BALL_BUSH LMU5 2
38 FC18-001480A BUSH SPACER 2 J7153033A
39 MC06-900006 BALL_BUSH LMU5 2
40 J70531100B BRACKET_SENSOR_IN 1
41 FC09-002127A BRACKET-SENSOR_OUT_P;SPCC 1
42 FC39-000975A FRAME-CONV_FRONT_P;A6N01S-T5 1
43 EP19-900092 PHOTOELECTRIC SENSOR [BYD30-DDT] 2
44 AM03-007407A CABLE ASSY-WORK_BELT2_STEP_MOTOR 1 L460-W400 CONVEYOR
J90831441B WORK_BELT2_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR
45 AM03-007405A CABLE ASSY-CONV_BELT4_STEP_MOTOR 1 L460-W400 CONVEYOR
J90831431B CONV_BELT4_STEP_MOTOR_ASSY 1 L610-W400 CONVEYOR
Page
SAMSUNG TECHWIN
57
SM482(L)
Page
SAMSUNG TECHWIN
58
SM482(L)

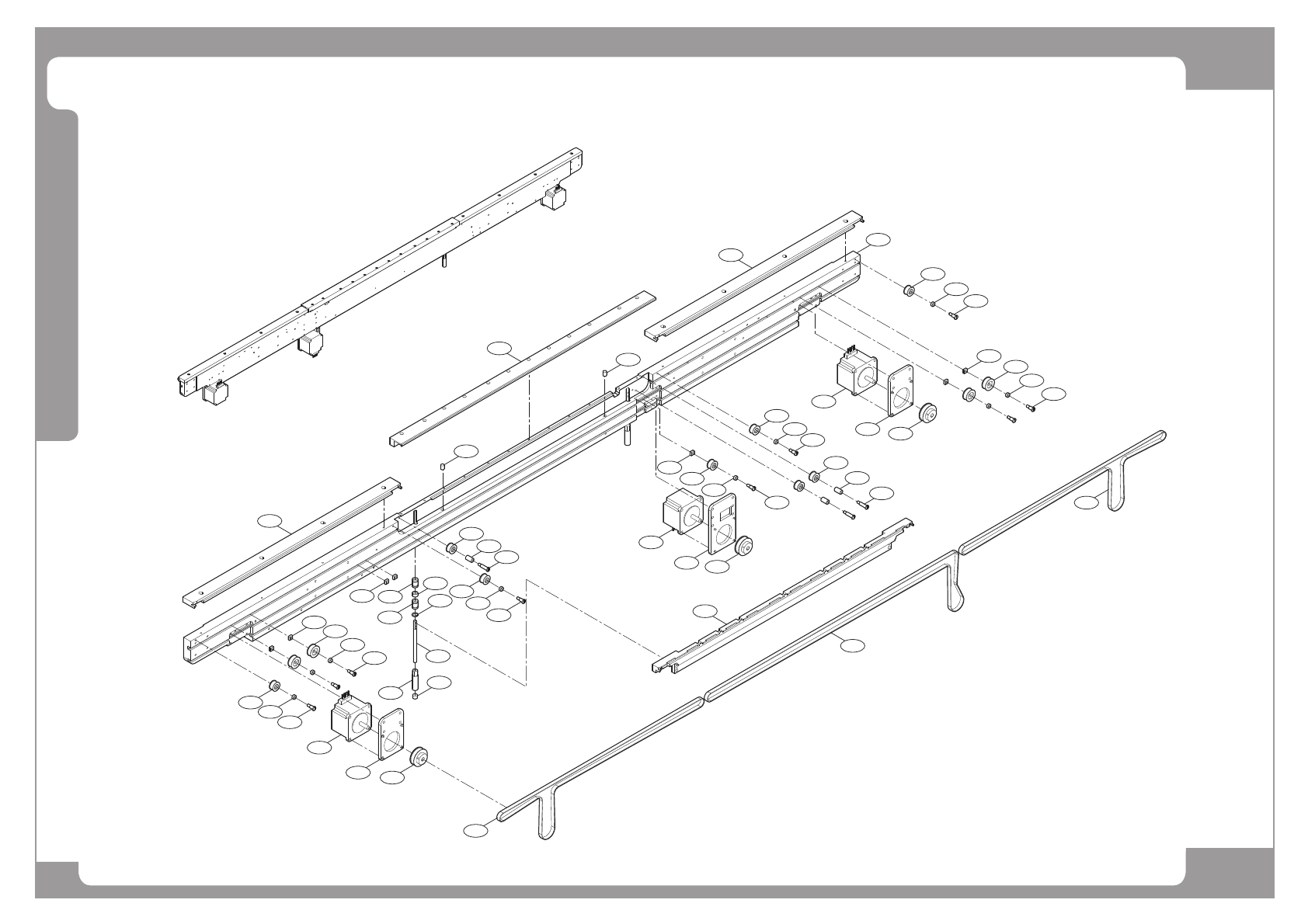

Conveyor Ass'y(3/4)
1
22
2
2
6
24
12
15
17
19
5
5
6
24
25
7
8
4
3
3
20
20
5
24
6
5
6
8
24
27
26
10
13
23
8
5
6
16
18
11
11
9
10
11
21
24
14
8
5
6
24
7
6
24
5
19
25
