Page SAMSUNG TECHWIN 62 SM482(L) L1200 Conveyor Assembly(1/4) - OPTION
Page
SAMSUNG TECHWIN
61
SM482(L)
Conveyor Ass'y(4/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC19-900014 PULLEY-WIDTH 20-XL-025 1
2 MC03-900008 BALL BEARING [6000ZZ] 2
3 MC13-000042A SCREW,LEAD-SM421_P;SCM435 1
4 J7053194A BEARING NUT [J7053194A] 1
5 J7153330A PULLEY SHAFT[J7153330A] 1
6 MC05-900026 TIMING BELT [258-3M-9] 1
7 MC19-900015 PULLEY-MOTOR P32-3M-9 1
8 FC09-002134A BRACKET-SERVO_MOTOR_P;SS400 1
9 EP08-900121 SERVO MOTOR 1
10 FC09-002125A BRACKET-SCREW_STAND_P;A6N01S-T5 1
11 FC09-002126A BRACKET-MOVE_STAND_P;A6N01S-T5 1
12 MC13-900029 LM GUIDE[SBG20-SL-1-575-N] 1
13 FC18-900870 LOW PROFILE MOUNTS[DALM5 (NYLON)] 2
14 FC05-000207C BASE-WIDE_ADJUST_SM421_P;SS400 1 FC05-000207A/ FC05-000207B
15 FC09-002124A BRACKET-FIX_STAND_P;A6N01S-T5 1
Page
SAMSUNG TECHWIN
62
SM482(L)

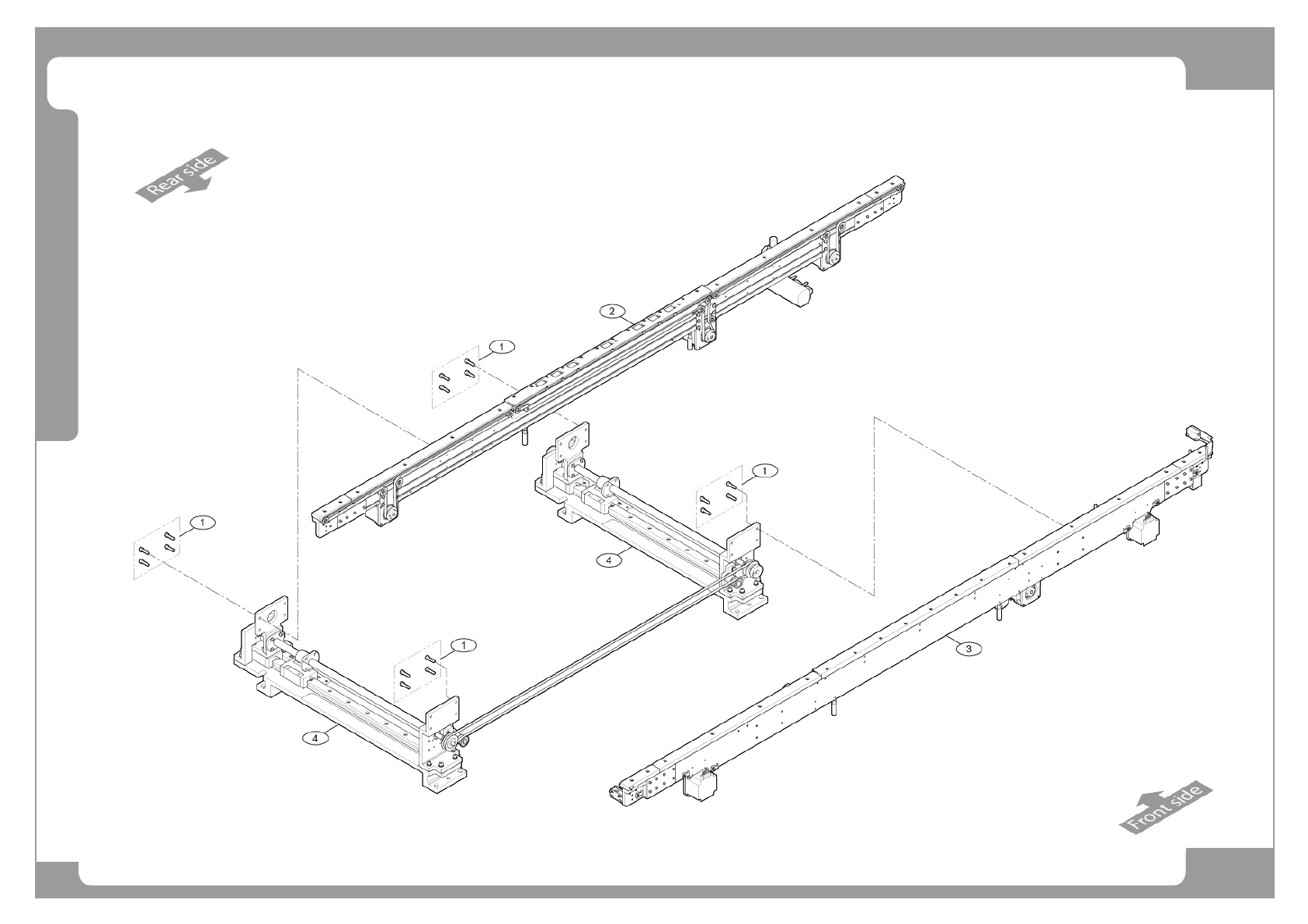

L1200 Conveyor Assembly(1/4) - OPTION
Page
SAMSUNG TECHWIN
63
SM482(L)
L1200 Conveyor Assembly(1/4) - OPTION
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC18-902761 SOCKET HEAD CAP SCREW M5*20 (NI/ZN) 16
2 AM03-014407A ASSY,CONVEYOR-MOVE_RAIL_SM168 1
3 AM03-014405A ASSY,CONVEYOR-FIX_RAIL_SM168 1
4 AM03-014406A ASSY,CONVEYOR-TRANSFER_RAIL_SM168 2
