SM482_TRM(Ver3.8_CS14.24)_2EE66 - 第96页
Page SAMSUNG TECHWIN 92 SM482(L) Electric Device Ass’y(1/4) 11 12 13 16 16 15 14 14 2 1 9 9 10 7 4 3 8 5 6
Page
SAMSUNG TECHWIN
91
SM482(L)
Electric Panel Ass’y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 EP06-000445 SERVO_MOTOR_RIVER_A5E MADHT1505E 2 EP06-900172
2 EP06-000389 SERVO_MOTOR_DRIVER_A5E MCDHT3520E 1 EP06-900170
3 EP06-000393 SERVO_MOTOR_DRIVER_A5E MDDHT5540E 2 EP06-900171
5 FC09-002147A BRACKET-DRIVER_BRACKET-LOWER;SPCC,t2 1
6 FC09-002146A BRACKET-DRIVER_BRACKET-UPPER;SPCC,T2 1
7 FC09-002143A BRACKET-DRIVER BRACKET-SIDE_SM482;SPCC 2
8 J90831356C SERVO_FAN_FG_CABLE_ASSY 1
10 AM03-007204A CABLE ASSY-Y2_REGEN_RESISTOR 3
11 FC09-002148A BRACKET-SM482_RESISTOR_BKT;SPCC,t2 1
12 FC09-002144A BRACKET-SM482_AXIS_BD_BKT;SPCC,T2 1
13 FC09-002140A BRACKET-AXIS_BD_SUB_BKT;SPCC,t1 1
14 AM03-007102B ASSY,BOARD-SM481 FIX ILL 1 AM03-007102A
15 AM06-000943B ASSY,PCB-AP5_AXIS_IO_BOARD 1 AM06-000943A
16 FC09-002139A BRACKET-AXIS_BD_COVER;SPCC,t1.6 1
17 J7251007A BOARD COVER[J7251007A] 1
18 AM03-001814B ASSY,BOARD-SAFETY_FROP_REV 2.0 1 AM03-001814A
19 AM03-006976B ASSY,ELECTRIC-TERMINAL_BLOCK_SM48 1
20 AM03-007204A AM03-007204A_SM48_MD037 12
21 AM03-007205B CABLE ASSY-X_REGEN_RESISTOR 1
22 AM03-007203A CABLE ASSY-Y1_REGEN_RESISTOR 1
23 J91741357A BOARD ASSY- AP5 AXIS SLAVE BOARD 1
24 J7251012A WIRING DUCT-5[J7251012A] 1
25 FC29-900555 HEX SUPPORT[M3*50 (BOLT-NUT)] 4
26 FC29-900612 HEX SUPPORT 4
27 J7251013A WIRING DUCT-6[J7251013A] 2
28 EP03-000083 DUCT,CABLE-WIRING DUCT_60x60x910 1
29 J7251015A WIRING DUCT-8[J7251015A] 1
30 FC09-002145A BRACKET-SM482_DRIVER_BASE_BRACKET;SPCC 1
Page
SAMSUNG TECHWIN
92
SM482(L)

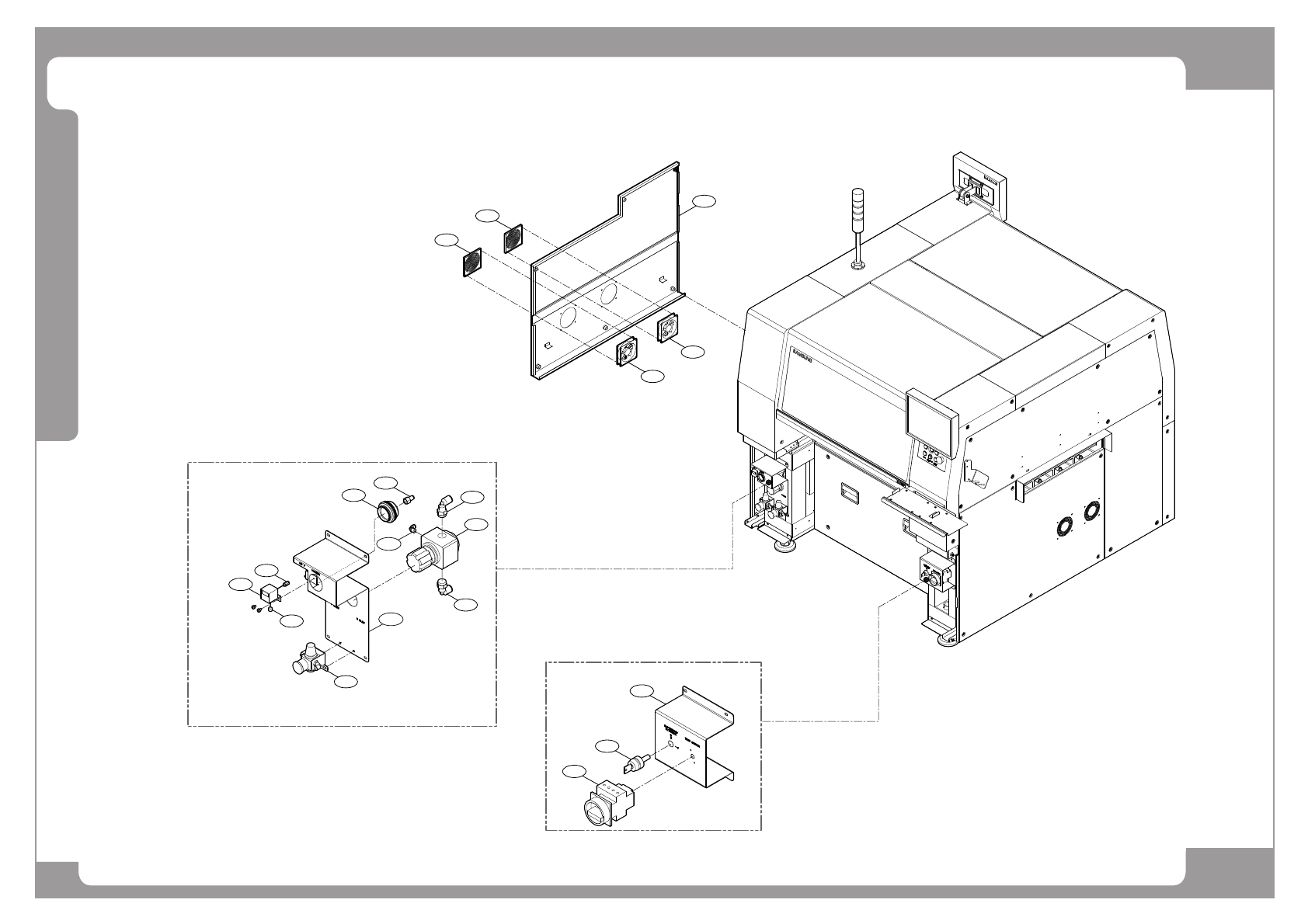

Electric Device Ass’y(1/4)
11
12
13
16
16
15
14
14
2
1
9
9
10
7
4
3
8
5
6
Page
SAMSUNG TECHWIN
93
SM482(L)
Electric Device Ass’y(1/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 HP09-900123 REGULATOR AR08-T2-D0M0-J346A 1
2 FC14-900724 PLUG [PT 1/8] 1
3 AM03-007638A CABLE ASSY-AIR INDICATOR 1
4 HP06-900255 STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
5 FC09-001465A BRACKET-AIR F SMU 1
6 HP06-900191 ELBOW_MINI_FITTING SCL04-01 1
7 TE07-900096 METER GZ46-K-01-C1 1
8 HP06-900043 JOINT KQ2F04-01 1
9 HP06-900026 ELBOW FITTING PL12-04/SQL12-04S-W 2
10 HP09-900108 REGULATOR 1
11 AM03-013512A MAIN_SWITCH_TB2_CABLE_ASSY 1 AM03-900132
12 J90831059C SAFEGUARD_OV_SW_KEY_CABLE_ASSY 1
13 FC09-001672A BRACKET-BKT F POWER 1
14 J6309025 FAN 2
15 FC15-000943B COVER-LOWER_SIDE_2_L 1 FC15-000943A
16 EP07-901508 COOLING FAN[4715MS-22T-B50] 2
