Page SAMSUNG TECHWIN 95 SM482(L) Electric Device Ass’y(2/4) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-003542A CAB LE ASSY INLINE_IN_OUT 1 2 EP07-900027 MAIN CIRC UIT BREAKER[GV2-ME20] …
Page
SAMSUNG TECHWIN
94
SM482(L)

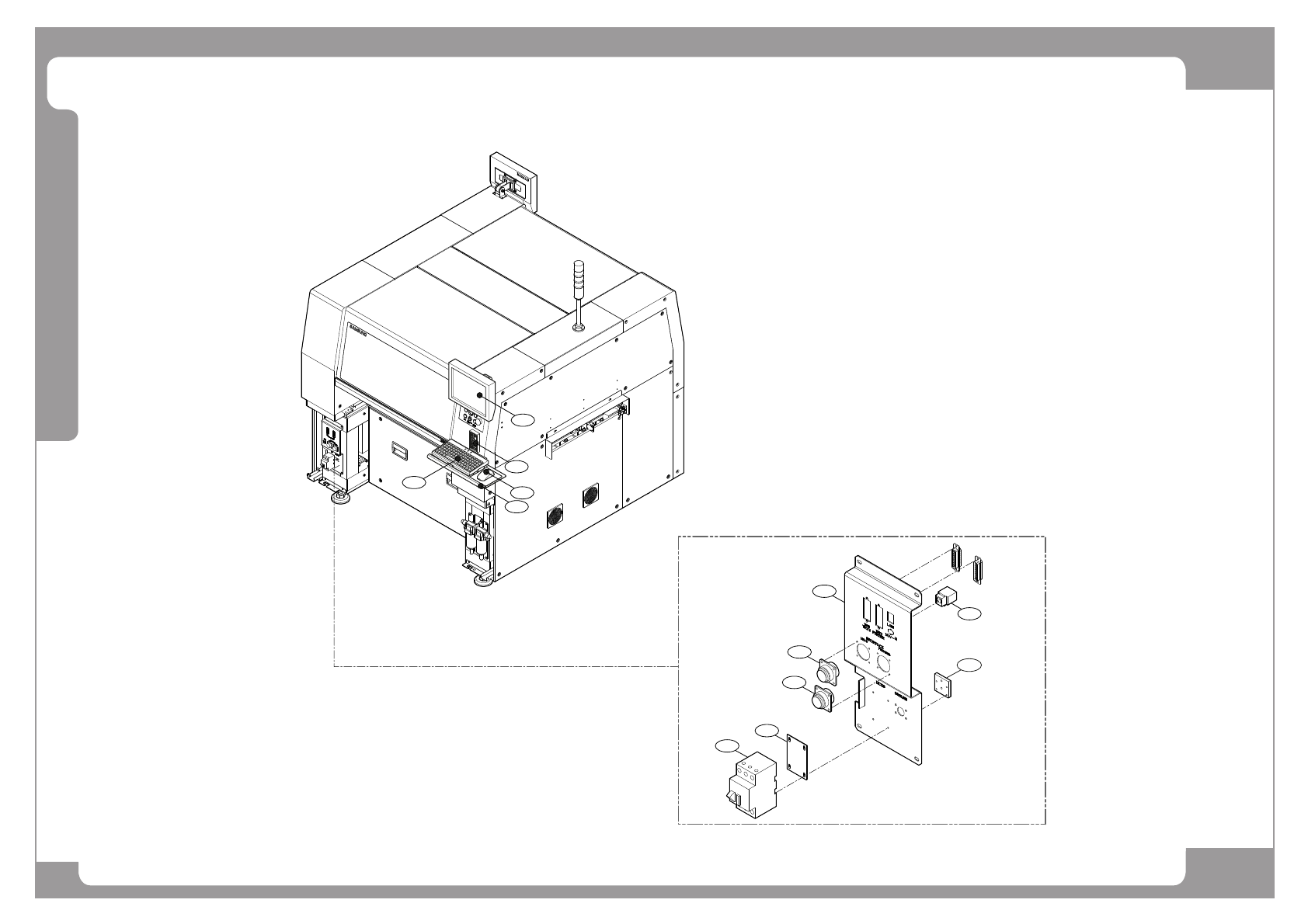

Electric Device Ass’y(2/4)
5
2
3
4
1
1
6
7
8
9
10
11
Page
SAMSUNG TECHWIN
95
SM482(L)
Electric Device Ass’y(2/4)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003542A CABLE ASSY INLINE_IN_OUT 1
2 EP07-900027 MAIN CIRCUIT BREAKER[GV2-ME20] 1
3 EP21-900008 PANEL_GV2_AF 1
4 J70521076B POWER_PANEL_R J70521076B 1
5 AM03-003573A CABLE ASSY-LAN_EXT 1
6 FC30-002551A GROUND TERMINAL [J7152027A] 1 J7152027A
7 CD04-900026 MINI_KEYBOARD 5510UH 2
8 J7452038A MOUSE PAD - OPTICAL[J7452038A] 2
9 CD04-900012 OPTICAL_MOUSE 2
10 J90601023B TEACHING_BOX 1
11 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 2 CD05-900126
Page
SAMSUNG TECHWIN
96
SM482(L)

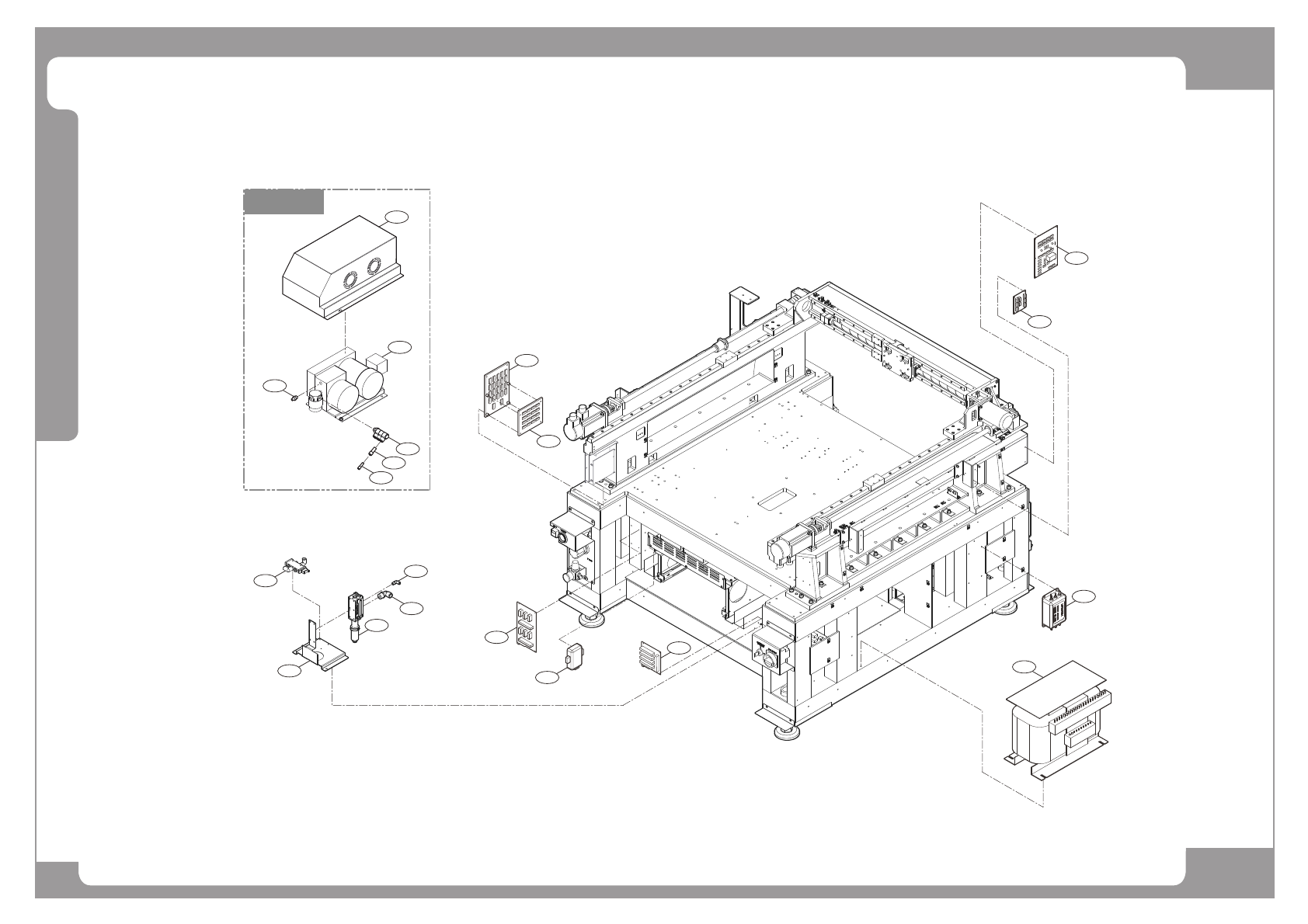

Electric Device Ass’y(3/4)
CAN FEEDER BOARD
6
7
CAN CONVEYOR BOARD
18
19
20
23
21
22
Option
11
12
1
2
4
3
9
8
5
10
13
17
