Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 23 4S200100 RELA Y 2 1091401300-023 24 23N10019 BRACKET_WIRING 2 1091401300-024 26 23N30708 ACCESSORY_WIRING 6 1091401300-026 27 0914B30J P ANEL 1 1091401300-027 31 4S2101…

100%1 / 378

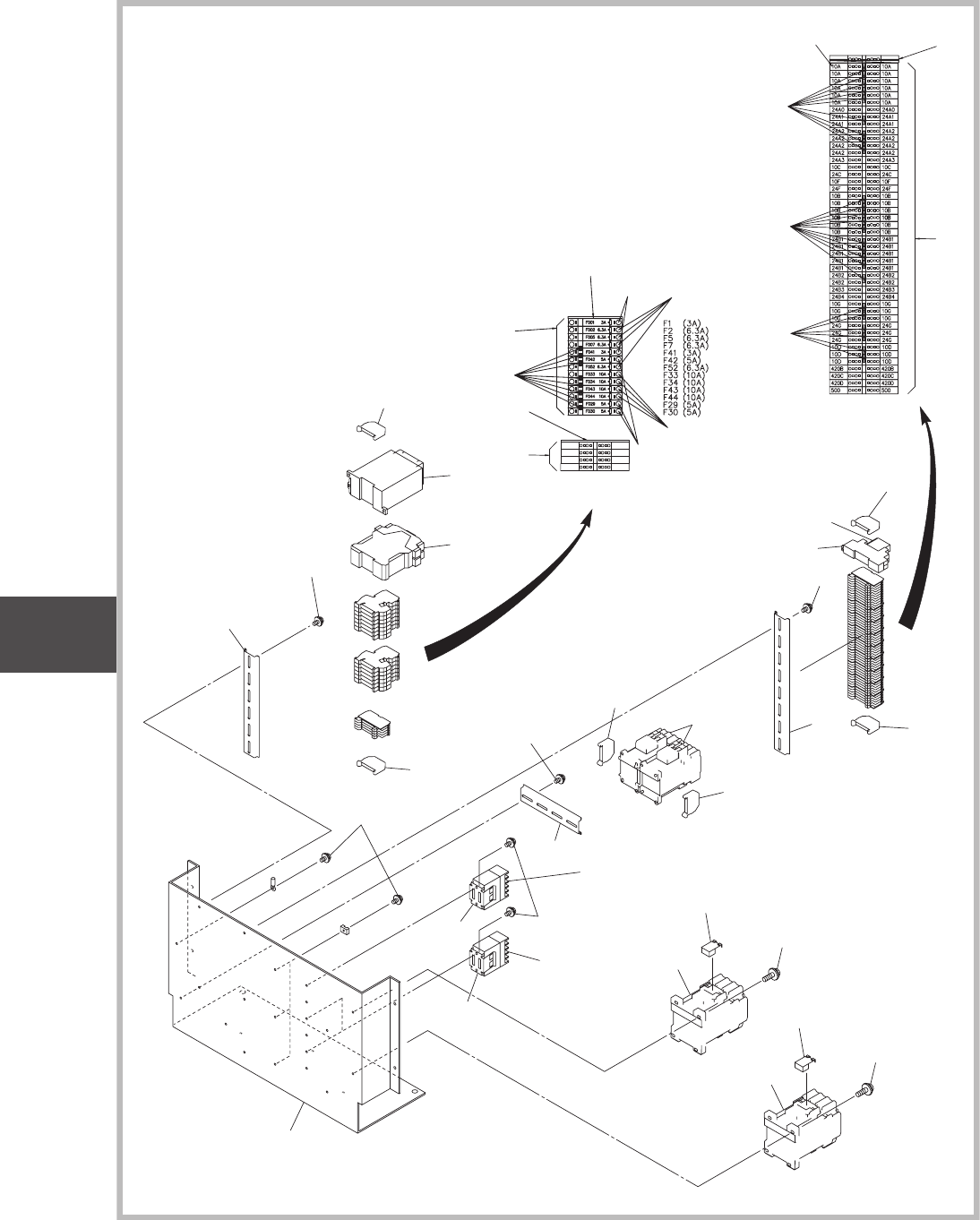

Fig. D3-1
パネル２
Panel 2
0912-002
41
74
65
75
75
75
72
79
80
23
24
26
26
32
40
40
81
40
40
82
40
58
71
83
73
64
77
67
84
27
34
78
95
40
66
66
66
B7
A3
31
33
B7
A3
A3
A3
A7
DETAIL
DETAIL
74
76
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
23 4S200100 RELAY 2 1091401300-023
24 23N10019 BRACKET_WIRING 2
1091401300-024
26 23N30708 ACCESSORY_WIRING 6
1091401300-026
27 0914B30J PANEL 1
1091401300-027
31 4S210132 EM-CONTACTOR 1
1091401300-031
32 4S210132 EM-CONTACTOR 1
1091401300-032
33 4F400028 COMP_CR 1
1091401300-033
34 4F400028 COMP_CR 1
1091401300-034
40 23N10027 BRACKET_WIRING 6
1091401300-040
41 4J320241 TERMINAL 1
1091401300-041
58 0914B30E PLUGGABLE FUSE 13
1091401300-058
64 0914B30H JUMPER 8
1091401300-064
65 23N30524 ACCESSORY_WIRING 2
1091401300-065
66 23N30668 ACCESSORY_WIRING 1
1091401300-066
67 4S300024 FUSE 250V 5A 3
1091401300-067
71 0914B30G END PLATE 1
1091401300-071
72 4S210127 EM-CONTACTOR 2
1091401300-072
73 4S300023 FUSE 250V 6.3A 4
1091401300-073
74 4J320187 TERMINAL 51
1091401300-074
76 23N30612 ACCESSORY_WIRING 1
1091401300-076
77 0914B30F TERMINAL 13
1091401300-077
78 4S200121 RELAY 1
1091401300-078
79 4S200100 RELAY 1
1091401300-079
80 23N10019 BRACKET_WIRING 1
1091401300-080
81 4S200097 RELAY 1
1091401300-081
82 4J120082 SOCKET 1
1091401300-082
83 4V320011 FUSE 250V 3.15A 2
1091401300-083
84 4V301007 FUSE 250V 10A 4
1091401300-084
A3 221DA053 MACHINE SCREW 12
1091401300-183
A7 221DA207 MACHINE SCREW 4
1091401300-187
B7 221DA063 MACHINE SCREW 4
1091401300-737
Fig. D3
0912-002
Fig. D3-1
UNIT-3
Fig. D3
ELEC2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. D3-2
パネル１、３
Panel 1, 3
0912-002
149
151
141
174
175
176
160
166
161
162
163
165
150
128
135
140
130
140
138
155
146
147
144
145
143
147
140
137
136
139
140
141
144
145
147
148
140
140
146
147
143
147
129
See Fig. D3-1
Key No.27
142
166
166
192
198
197
192
198
197
192
198
197
195
182
188
195
196
183
187
183
183
187
140
DETAIL
187
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
