Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 128 21 1C1546 P ANEL 1 1091401300-028 129 21 1C1489 P ANEL 1 1091401300-029 130 4S230093 BREAKER 1 1091401300-030 135 4S250386 CIRCUIT PROTECT OR 1 1091401300-035 136 4S21…

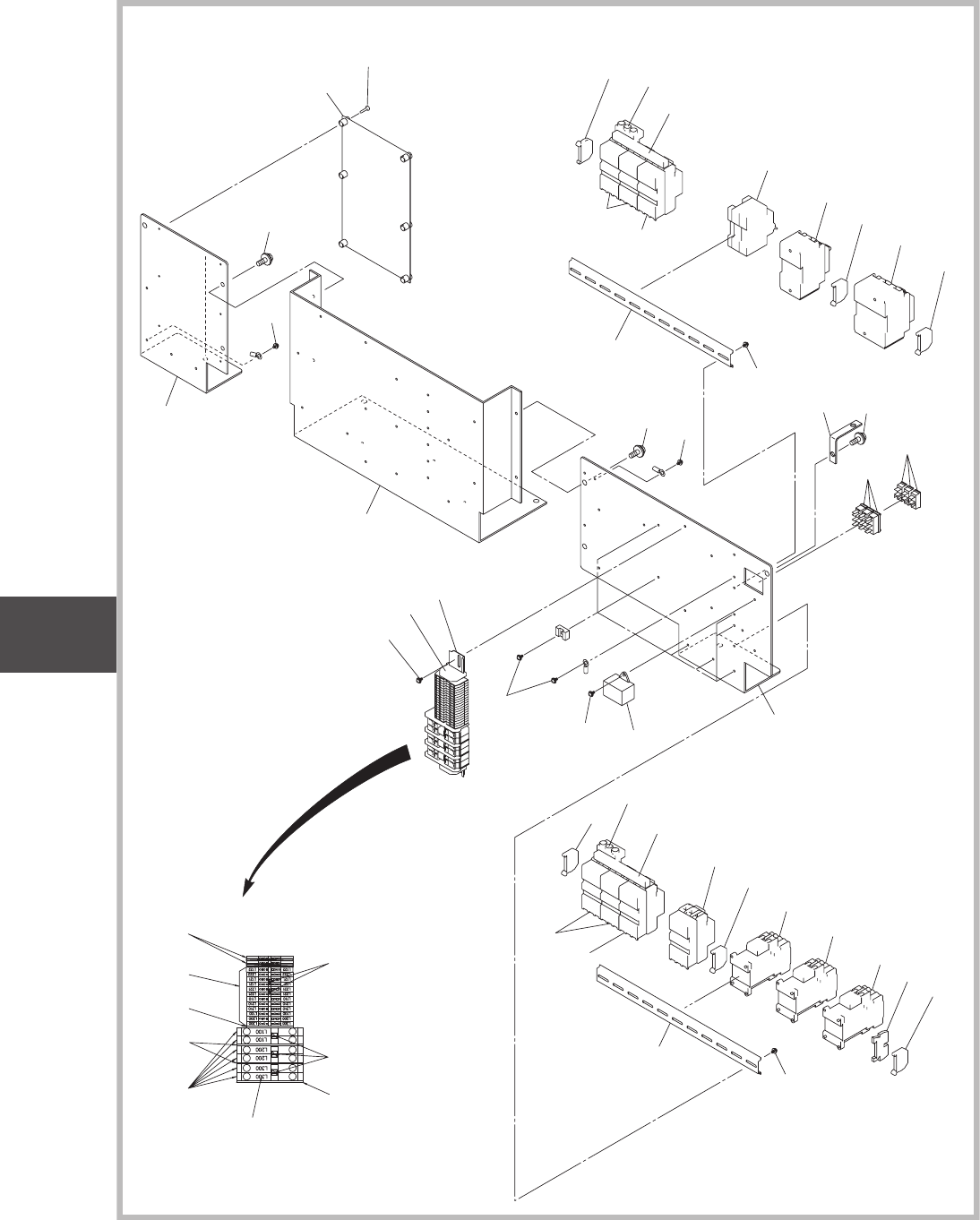

Fig. D3-2
パネル１、３
Panel 1, 3
0912-002
149
151
141
174
175
176
160
166
161
162
163
165
150
128
135
140
130
140
138
155
146
147
144
145
143
147
140
137
136
139
140
141
144
145
147
148
140
140
146
147
143
147
129
See Fig. D3-1
Key No.27
142
166
166
192
198
197
192
198
197
192
198
197
195
182
188
195
196
183
187
183
183
187
140
DETAIL
187
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
128 211C1546 PANEL 1 1091401300-028
129 211C1489 PANEL 1
1091401300-029
130 4S230093 BREAKER 1
1091401300-030
135 4S250386 CIRCUIT PROTECTOR 1
1091401300-035
136 4S210127 EM-CONTACTOR 1
1091401300-036
137 4S210127 EM-CONTACTOR 1
1091401300-037
138 4S230110 BREAKER 1
1091401300-038
139 4S210127 EM-CONTACTOR 1
1091401300-039
140 23N10027 BRACKET_WIRING 9
1091401300-040
141 4J320241 TERMINAL 3
1091401300-041
142 211FE676 BRACKET 1
1091401300-042
143 4S250322 CIRCUIT PROTECTOR 2
1091401300-043
144 23N30652 ACCESSORY_WIRING 2
1091401300-044
145 23N30653 ACCESSORY_WIRING 2
1091401300-045
146 4S250323 CIRCUIT PROTECTOR 4
1091401300-046
147 23N30651 ACCESSORY_WIRING 7
1091401300-047
148 4S250321 CIRCUIT PROTECTOR 1
1091401300-048
149 4V360007 SEMICONDUCTOR_VARISTOR 1 1091401300-049
150 4S300006 FUSE,SPECIAL 3
1091401300-050
151 4J200032 FUSE HOLDER 3
1091401300-051
155 0914B32K P.C.B,MOUNT 1
1091401300-055
160 23N30716 ACCESSORY_WIRING 1
1091401300-060
161 23N30717 ACCESSORY_WIRING 2
1091401300-061
162 23N30718 ACCESSORY_WIRING 3
1091401300-062
163 4J320271 TERMINAL 6
1091401300-063
165 23N30524 ACCESSORY_WIRING 1
1091401300-065
166 23N30668 ACCESSORY_WIRING 1
1091401300-066
174 4J320187 TERMINAL 12
1091401300-074
175 23N30519 ACCESSORY_WIRING 2
1091401300-075
176 23N30612 ACCESSORY_WIRING 1
1091401300-076
182 221DA058 MACHINE SCREW 6
1091401300-182
183 221DA053 MACHINE SCREW 6
1091401300-183
187 221DA207 MACHINE SCREW 12
1091401300-187
188 221DA221 ROHS:MACHINE SCREW 1 1091401300-188
192 221AA030 ROHS:BOLT_HEX-SCT 5
1091401300-192
195 221HA004 WASHER 1
1091401300-195
196 221HA104 WASHER 1
1091401300-196
197 221HA303 ROHS:WASHER 5
1091401300-197
198 221HA005 WASHER 5
1091401300-198
Fig. D3
0912-002
Fig. D3-2
UNIT-3
Fig. D3
ELEC2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. D3-3
ドライバ、基板
Driver, PCB
0912-002
2B2
2C4
2B2
2C4
2C0
2C8
2C9
2B5
2B2
2B4
214
211
212
216
217
221
254
256
257
222
202
221
222
220
269
269
268
268
2B2
2C4
257
269
268
2C1
2C8
2C7
2A5
2A6
2B7
2B7
2C0
2C8
2C9
2C0
2C8
2C9
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
