Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE B03 9W3101 1 1 CORD 1 1091401300-503 B05 9W3101 13 CORD 1 1091401300-505 B06 9W3101 14 CORD 1 1091401300-506 B07 9W3101 15 CORD 1 1091401300-507 B08 9W3101 16 CORD 1 10914…

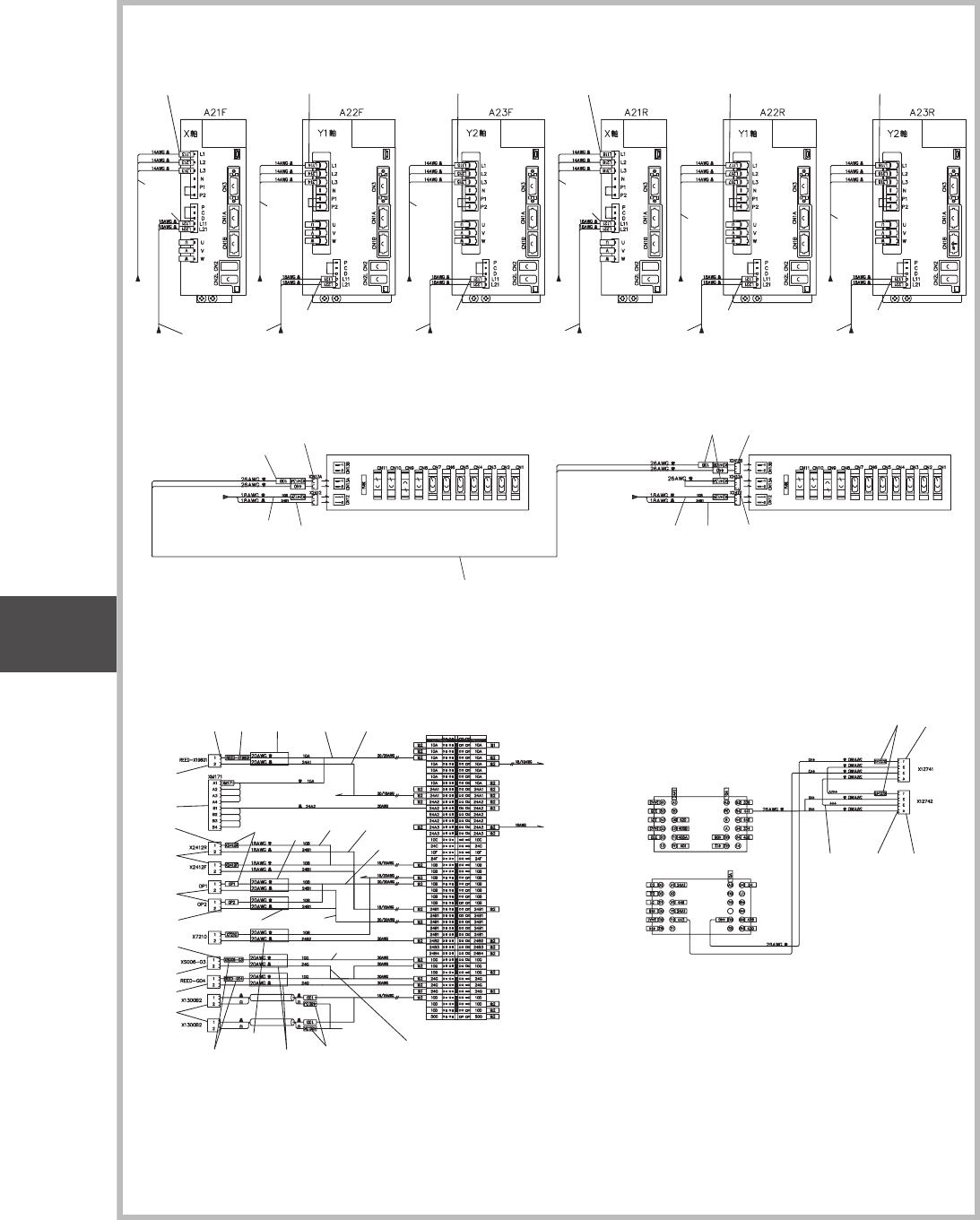

Fig. D3-12
電源ケーブル２
Power Supply Cable 2
0912-002
Q221F
TB:P1
Q222F
TB:P1
Q223F
TB:P1
Q221R
TB:P1
Q222R
TB:P1
Q223R
TB:P1
TB DC1TB DC1
BA5
BA5
B05
BA6
B05
BA5
BA5
BA6
B05
BA6
B05
BA5
BA6
B05
BA6
B05
B03
B03
B03
BA6
B03
B03
B03
BA6
B38
B37
BA6
B38
B37
B38
B37
B10
B05
B06
B05
B06
BA5
K3
K4
TB DC1
X2701-6(U27)
K50-4,-6
X2701-1,-2(U27)
B70
B25
B23
B25
B21
B22
B26
B26
BA6
BB6
B06
B05
B08
BB9
BB7
BA6
B07
B57
B23
B24
BA6
BB6
BB8
B08
B07
BA6
BC5
B40
BC5
BB6
B08
B07
B10
Fig. D3
電装部２
ELECTRICAL SECTION 2
UNIT-3
Fig. D3
ELEC2
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
B03 9W310111 CORD 1 1091401300-503
B05 9W310113 CORD 1
1091401300-505
B06 9W310114 CORD 1
1091401300-506
B07 9W310115 CORD 1
1091401300-507
B08 9W310116 CORD 1
1091401300-508
B10 9W310118 CORD 1
1091401300-510
B21 23K10147 CASE CONN 2
1091401300-521
B22 4J300139 CABLE JOINT TERMINAL 4 1091401300-522
B23 23K10002 CASE CONN 1
1091401300-523
B24 4J300002 CABLE JOINT,TERMINAL 2 1091401300-524
B25 23K10263 CASE_CONN 5
1091401300-525
B26 4J300193 CABLE JOINT TERMINAL 10 1091401300-526
B37 23K10149 CASE_CONN 3
1091401300-537
B38 4J300057 CABLE JOINT_TERMINAL 3 1091401300-538
B40 4J300194 CABEL JOINT TERMINAL 2 1091401300-540
B57 4W204750 CORD(FAN-POWER) 1
1091401300-557
B70 4W205279 CORD 2
1091401300-570
BA5 23N20107 TUBE,WIRING 1
1091401300-645
BA6 23N20103 TUBE_WIRING 2
1091401300-646
BB6 23N20121 TUBE WIRING 3
1091401300-656
BB7 23N20122 TUBE WIRING 1
1091401300-657
BB8 23N20123 TUBE WIRING 1
1091401300-658
BB9 23N20124 TUBE WIRING 1
1091401300-659
BC5 23K10153 CASE_CONN 2
1091401300-665
Fig. D3
0912-002
Fig. D3-12
UNIT-3
Fig. D3
ELEC2
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
