Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 101 9W310130 CORD 1 1091401700-501 102 9W3101 12 CORD 1 1091401700-502 103 23N20109 TUBE,WIRING 17 1091401700-503 104 4J300124 CABLE JOINT TERMINAL 4 1091401700-504 105 4J…
Fig. D4-2
ケーブル
Cable
113
103
122
117
118
116
125
128
120
124
116
123
121
117
122
128
119
114
115
126
126
127
G2
XG01
G07
5VOP1
5J1
CN1
CN2
G01B
X12702
G01A
G02,04
G1
G4
G8
F61
G7
102
103
105
102
103
105
102
103
105
104
112
104
107
111
101
174
175
173
103
105
108
102
103
105
105
110
106
109
CN2
B
A
DETAIL”B”
DETAIL”A”
176
180
178
179
177
0912-002

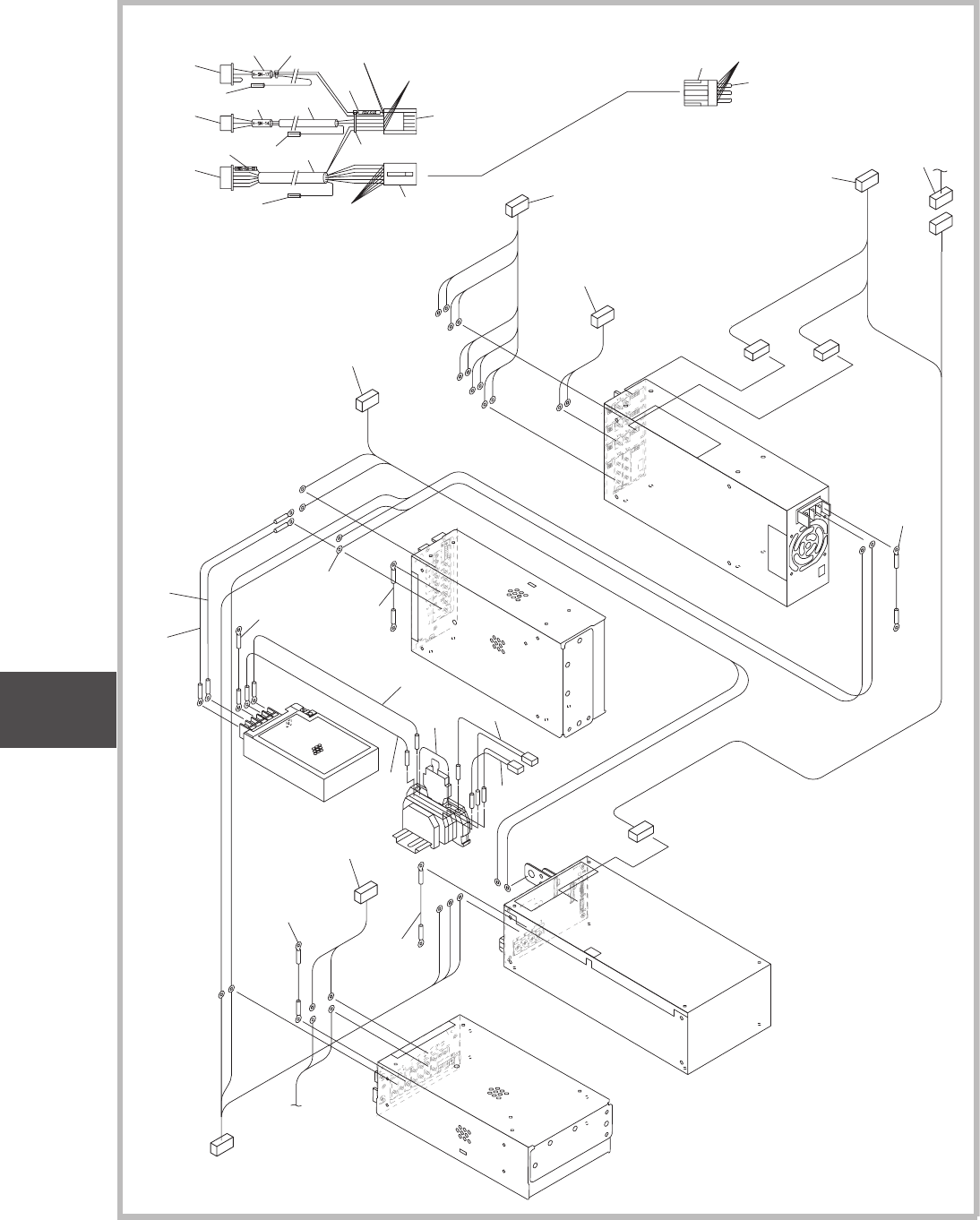

Fig. D4 DC
電源部
DC POWER SUPPLY SECTION
UNIT-3
Fig. D4
DC POWER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 9W310130 CORD 1 1091401700-501
102 9W310112 CORD 1
1091401700-502
103 23N20109 TUBE,WIRING 17
1091401700-503
104 4J300124 CABLE JOINT TERMINAL 4 1091401700-504
105 4J300016 CABLE JOINT TERMINAL 23 1091401700-505
106 4J300015 CABLE JOINT TERMINAL 11 1091401700-506
107 4J300017 CABLE JOINT TERMINAL 2 1091401700-507
108 4W204778 CORD 1
1091401700-508
109 0914B702 CORD(G01) 1
1091401700-509
110 4W204726 CORD(G01B-24V) 1
1091401700-510
111 4W204126 CORD(G02_G04) 1
1091401700-511
112 4W204729 CORD(G07) 1
1091401700-512
113 4W204708 CORD 1
1091401700-513
114 4W204707 CORD 1
1091401700-514
115 4W204803 CORD 1
1091401700-515
116 23K10406 CASE,CONN 2
1091401700-516
117 4J300175 CABLE JOINT,TERMINAL 8 1091401700-517
118 4J300191 CABLE JOINT,TERMINAL 4 1091401700-518
119 23K10175 CASE CONN 1
1091401700-519
120 4J300193 CABLE JOINT TERMINAL 6 1091401700-520
121 9W310129 CORD 1
1091401700-521
122 23N20103 TUBE_WIRING 2
1091401700-522
123 23N20112 TUBE WIRING 1
1091401700-523
124 23N20113 TUBE WIRING 1
1091401700-524
125 23N20114 TUBE WIRING 1
1091401700-525
126 23N20110 TUBE WIRING 6
1091401700-526
127 23N20111 TUBE WIRING 1
1091401700-527
128 23N30737 ACCESSORY_WIRING 1
1091401700-528
173 0914B70F 5V_E_CORD 1
1091401700-073
174 0914B70K 5VOP3_CORD 1
1091401700-074
175 0914B70L 5VOP4_CORD 1
1091401700-075
176 0914B70M 5V_OP_TB_CORD 1
1091401700-076
177 0914B70N BRACKET 1
1091401700-077
178 0914B70A 5V_OP1_CORD 1
1091401700-078
179 0914B709 5V_TB_CORD 1
1091401700-079
180 0914BA0Y CORD 1
1091401700-080
Fig. D4
0912-002
Fig. D4-2
UNIT-3
Fig. D4
DC POWER
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
