P-309-002e - 第169页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 201 09141A0B ASSY_V AL VE 1 3091401 105-001 202 09141A0C ASSY_V AL VE 1 3091401 105-002 203 21 1FC547 BRACKET 1 3091401 105-003 204 225F0656 PIPE FITTINGS 2 3091401 105-00…

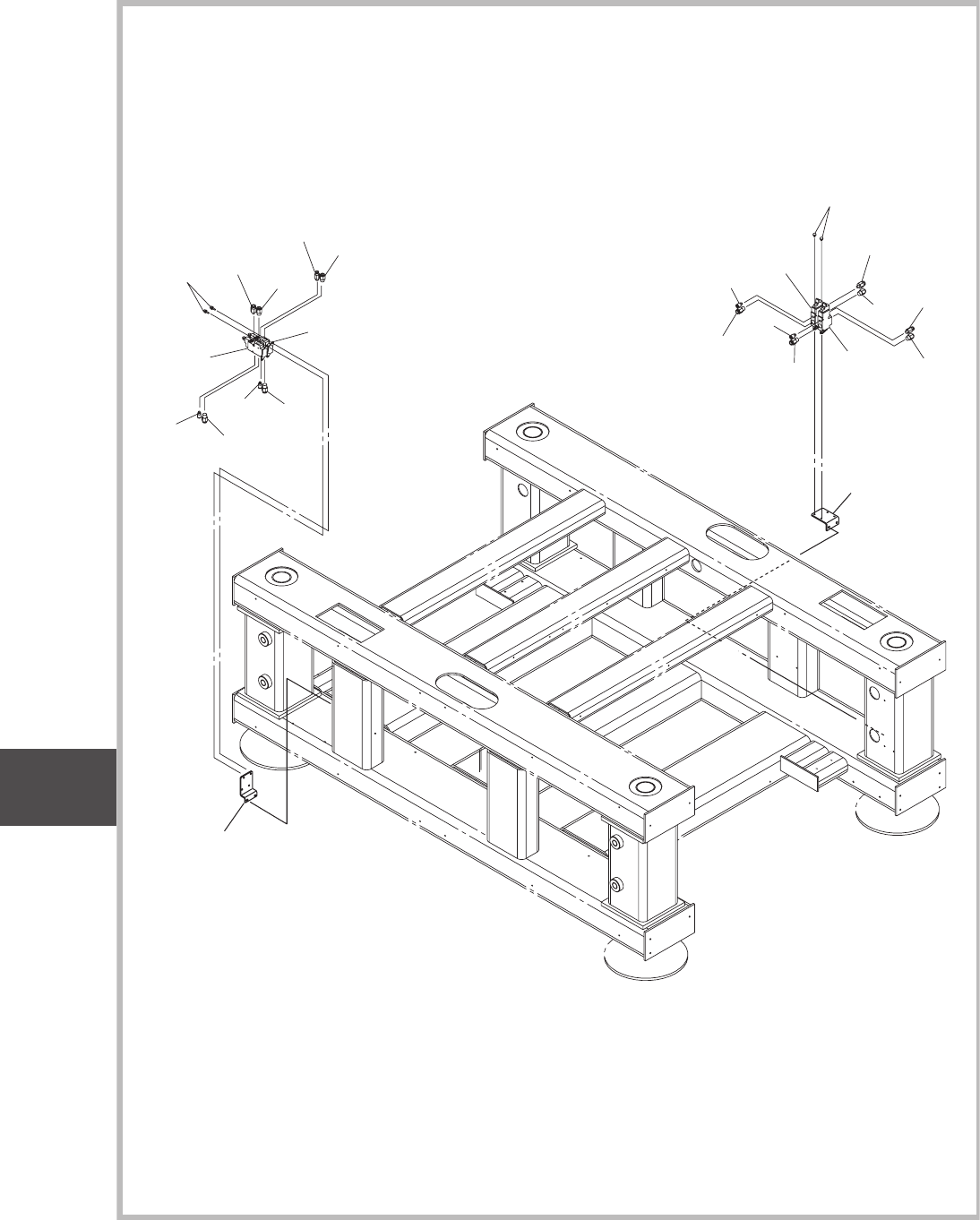

Fig. D5-3
ソレノイドバルブ
Solenoid Valve
222
221
226
224
226
226
227
224
228
225
229
230
231
204
208
201
202
209
210
211
204
206
205
207
206
206
203
223
0907-001
Fig. D5
エア供給部
AIR SUPPLY SECTION
UNIT-3
Fig. D5
AIR SUPPLY
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 09141A0B ASSY_VALVE 1 3091401105-001
202 09141A0C ASSY_VALVE 1
3091401105-002
203 211FC547 BRACKET 1
3091401105-003
204 225F0656 PIPE FITTINGS 2
3091401105-004
205 225F0611 PIPE FITTINGS 1
3091401105-005
206 225F0705 PIPE FITTINGS 3
3091401105-006
207 225F0706 PIPE FITTINGS 1
3091401105-007
208 225F0560 PIPE FITTINGS 1
3091401105-008
209 221AA016 ROHS:BOLT_HEX-SCT 4
3091401105-009
210 221HA004 WASHER 4
3091401105-010
211 221HA104 WASHER 4
3091401105-011
221 09141A09 ASSY_VALVE 1
3091401106-001
222 09141A0A ASSY_VALVE 1
3091401106-002
223 211FE012 BRACKET 1
3091401106-003
224 225F0656 PIPE FITTINGS 2
3091401106-004
225 225F0611 PIPE FITTINGS 1
3091401106-005
226 225F0705 PIPE FITTINGS 3
3091401106-006
227 225F0706 PIPE FITTINGS 1
3091401106-007
228 225F0560 PIPE FITTINGS 1
3091401106-008
229 221AA016 ROHS:BOLT_HEX-SCT 4
3091401106-009
230 221HA004 WASHER 4
3091401106-010
231 221HA104 WASHER 4
3091401106-011
Fig. D5
0907-001
Fig. D5-3
UNIT-3
Fig. D5
AIR SUPPLY
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC

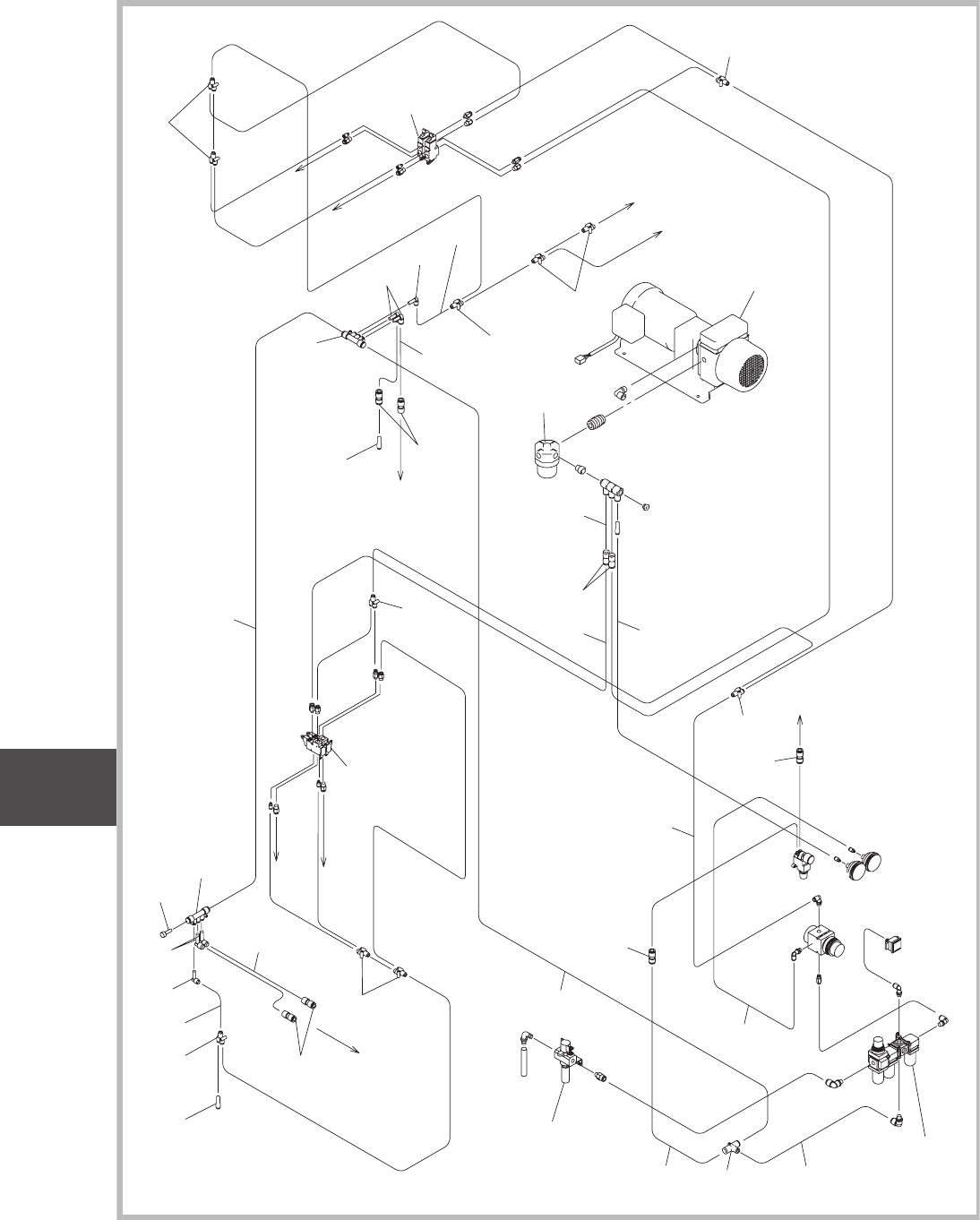

Fig. D5-4
エア配管
Air Piping
343
341
344
342
333
331
332
See Fig. D5-2
Key No.131
See Fig. D5-2
Key No.131
318
See Fig. D5-3
Key No.221
See Fig. D5-3
Key No.201
See Fig. D5-2
Key No.101
319
316
316
315
319
317
311
311
313
312
314
320
312
312
311
313
311
313
319
319
312
311
319
Multi-Layer Tray Feeder 2
Feeder Base 2
Positioning Unit 2
HEAD 2
HEAD 1
319
319
321
322
319
Positioning Unit 2
Nozzle Stocker 1,2
PCB STOPPER
PCB Z CLUMP
See Fig. D5-2
Key No.112
