P-309-002e - 第223页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 302 0929E00R BASE 1 309290400C-002 303 222L0694 GUIDE_LINEAR 1 309290400C-003 305 0929E01C BASE 1 309290400C-005 306 221AA020 ROHS:BOL T_HEX-SCT 8 309290400C-006 307 221AA…

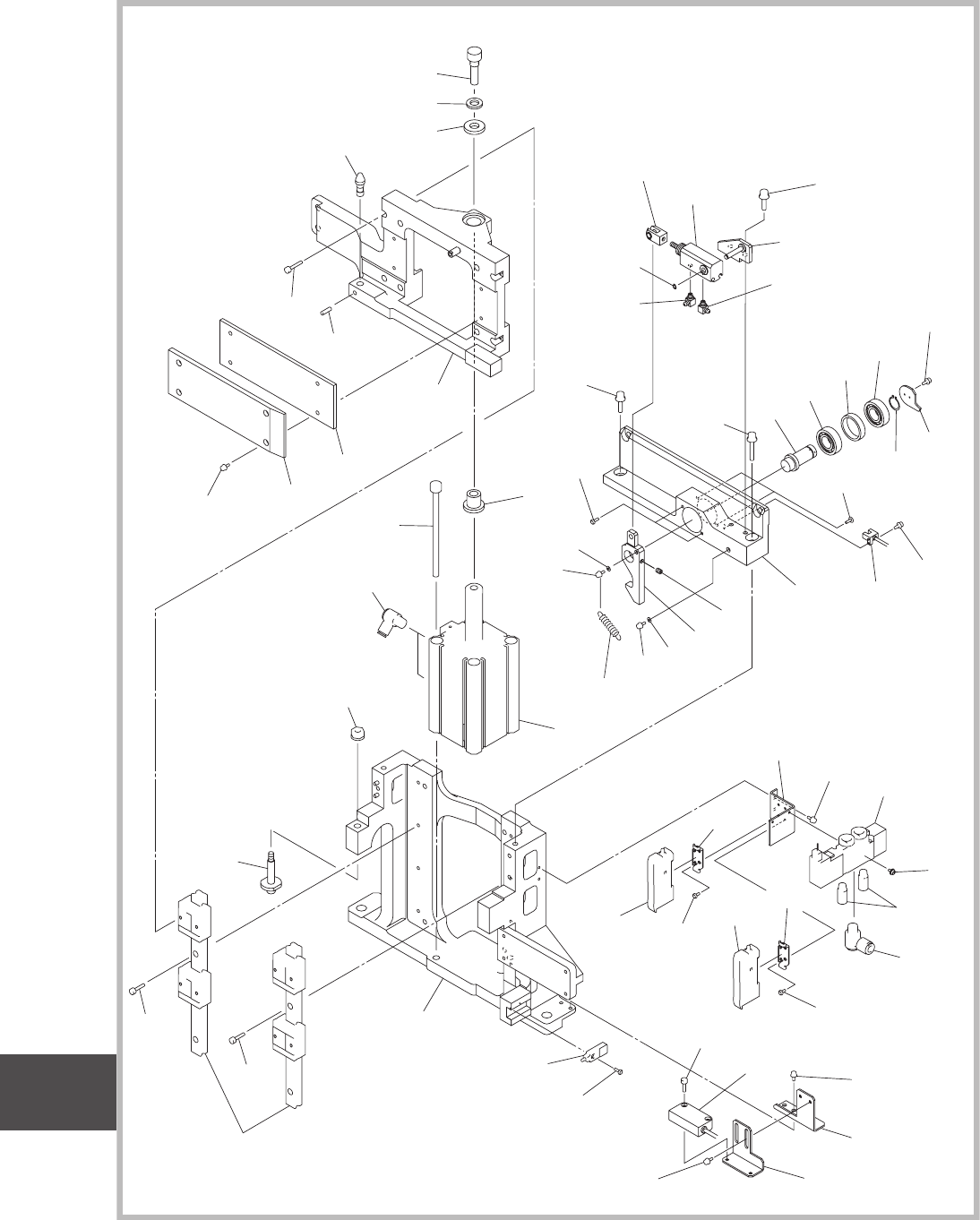

Fig. E4-4
フレームＲ
Frame R
307
316
324
322
306
306
315
327
302
317
303
321
320
305
319
323
326
325
311
329
328
312
313
314
329
371
355
356
371
355
356
362
363
361
366
355
356
370
369
364
318
364
371
355
356
365
367
368
359
365
367
368
358
360
309
372
373
334
340
313
314
353
313
314
354
339
341
340
345
331
343
332
343
344
333
346
352
348
349
350
352
330
336
374
354
312
375
316
357
347
349
350
0912-002
Fig. E4
位置決め部
POSITIONING UNIT
UNIT-4
Fig. E4
POSITION
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
302 0929E00R BASE 1 309290400C-002
303 222L0694 GUIDE_LINEAR 1
309290400C-003
305 0929E01C BASE 1
309290400C-005
306 221AA020 ROHS:BOLT_HEX-SCT 8
309290400C-006
307 221AA021 ROHS:BOLT_HEX-SCT 8
309290400C-007
309 221AA030 ROHS:BOLT_HEX-SCT 2
309290400C-009
311 09141D03 ASSY_SENSOR 1
309290400C-011
312 221FA011 NUT_HEX 2
309290400C-012
313 221HA006 WASHER 3
309290400C-013
314 221HA106 WASHER 3
309290400C-014
315 216F0999 PIN_GUIDE 1
309290400C-015
316 221CA007 SET SCREW 2
309290400C-016
317 213A1568 SHAFT 1
309290400C-017
318 09141D09 ASSY_SENSOR 1
309290400C-018
319 09141D05 ASSY_CYLINDER 1
309290400C-019
320 221AA069 ROHS:BOLT_HEX-SCT 1
309290400C-020
321 221HA008 WASHER 1
309290400C-021
322 221HA108 WASHER 1
309290400C-022
323 225F0558 PIPE FITTINGS 2
309290400C-023
324 221AA151 ROHS:BOLT_HEX-SCT 2
309290400C-024
325 211DD872 PLATE 1
309290400C-025
326 211DD870 PLATE 1
309290400C-026
327 216B1382 HOLDER 1
309290400C-027
328 221DA010 MACHINE SCREW 1
309290400C-028
329 221AA018 ROHS:BOLT_HEX-SCT 6
309290400C-029
330 0929E00X LEVER 1
309290400C-030
331 0929E00W SHAFT 1
309290400C-031
332 0929E00Y COLLAR 1
309290400C-032
333 0929E01D PLATE 1
309290400C-033
334 0929E00V BRACKET 1
309290400C-034
336 0929E01H TENSION SPRING 1
309290400C-036
339 0929E01L PIN CYLINDER 1
309290400C-039
340 225F0260 PIPE FITTINGS 2
309290400C-040
341 0929E01M D KNUCKLE JOINT 1
309290400C-041
343 222D0008 BEARING_RADIAL 2
309290400C-043
344 221K0079 RING C 15 1
309290400C-044
345 221KB001 RING E 1
309290400C-045
346 09294020 ASSY_SENSOR 1
309290400C-046
347 221DA003 MACHINE SCREW 1
309290400C-047
348 221AA001 ROHS:BOLT_HEX-SCT 2
309290400C-048
349 221HA001 WASHER 3
309290400C-049
350 221HA101 WASHER 3
309290400C-050
352 221DA207 MACHINE SCREW 4
309290400C-052
353 221AA043 ROHS:BOLT_HEX-SCT 1
309290400C-053
354 221AA046 ROHS:BOLT_HEX-SCT 2
309290400C-054
Fig. E4
0912-002
Fig. E4-4
UNIT-4
Fig. E4
POSITION
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. E4-4
0912-002
Fig. E4
355 221HA003 WASHER 8 309290400C-055
356 221HA103 WASHER 8
309290400C-056
357 0929E010 BLOCK 1
309290400C-057
358 0929E00P SW-BK-1 1
309290400C-058
359 0929E00Q SW-BK-2 1
309290400C-059
360 09294023 ASSY_DOOR_SW 1
309290400C-060
361 09294022 ASSY_VALVE 1
309290400C-061
362 225F0467 PIPE FITTINGS 1
309290400C-062
363 225B0059 AIR LINE EQPT 2
309290400C-063
364 23G00207 SENSOR_PELEC 2
309290400C-064
365 221AA016 ROHS:BOLT_HEX-SCT 4
309290400C-065
366 221AA006 ROHS:BOLT_HEX-SCT 2
309290400C-066
367 221HA004 WASHER 4
309290400C-067
368 221HA104 WASHER 4
309290400C-068
369 0929401W ASSY_SENSOR 1
309290400C-069
370 0929E02C SOL_BKT 1
309290400C-070
371 221DA010 MACHINE SCREW 6
309290400C-071
372 221HA005 WASHER 2
309290400C-072
373 221HA105 WASHER 2
309290400C-073
374 211AA031 ROHS:BOLT_HEX-SCT 1
309290400C-073
375 221FA009 NUT_HEX 2
309290400C-074
UNIT-4
Fig. E4
POSITION
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
