P-309-002e - 第261页
MEMO
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
5 0916D10D COVER 2 1091603200-005
7 0916D20L COVER 2 1091603200-007
8 4U240493 UNIT_DRIVER 2 1091603200-008
9 0916D315 BRACKET 2 1091603200-009
10 0916D316 BRACKET 2 1091603200-010
11 211FE542 BRACKET 2 1091603200-011
12 211FE243 BRACKET 2 1091603200-012
21 09163007 ASSY_BOARD 2 1091603200-101
22 4W204781 CORD 2 1091603200-102
23 4W204785 CORD 2 1091603200-103
24 0916D201 FERRITE CORE 2 1091603200-104
25 23N30172 ACCESSORY,WIRING 2 1091603200-105
26 23N30632 WIRING 6 1091603200-106
27 0916D209 ACCESSORY_WRING 240 1091603200-107
28 23N30005 WIRING 4 1091603200-108
29 0916320K NAME PLATE 2 1091603200-109
31 221DA106 MACHINE SCREW 2 1091603200-201
32 221DA052 MACHINE SCREW 2 1091603200-202
33 221AA002 ROHS:BOLT_HEX-SCT 4 1091603200-203
34 221HA102 WASHER 4 1091603200-204
35 221HA002 WASHER 4 1091603200-205
36 221AA100 ROHS:BOLT_HEX-SCT 16 1091603200-206
37 221AA099 ROHS:BOLT_HEX-SCT 12 1091603200-207
39 221AA102 ROHS:BOLT_HEX-SCT 8 1091603200-209
40 221DA051 MACHINE SCREW 42 1091603200-210
41 221DA050 MACHINE SCREW 12 1091603200-211
42 221DA052 MACHINE SCREW 4 1091603200-212
51 23G00313 SENSOR_PELEC 2 1091603200-301
66 09140126 ASSY_NAMEPLATE 2 1091603100-006
0912-002

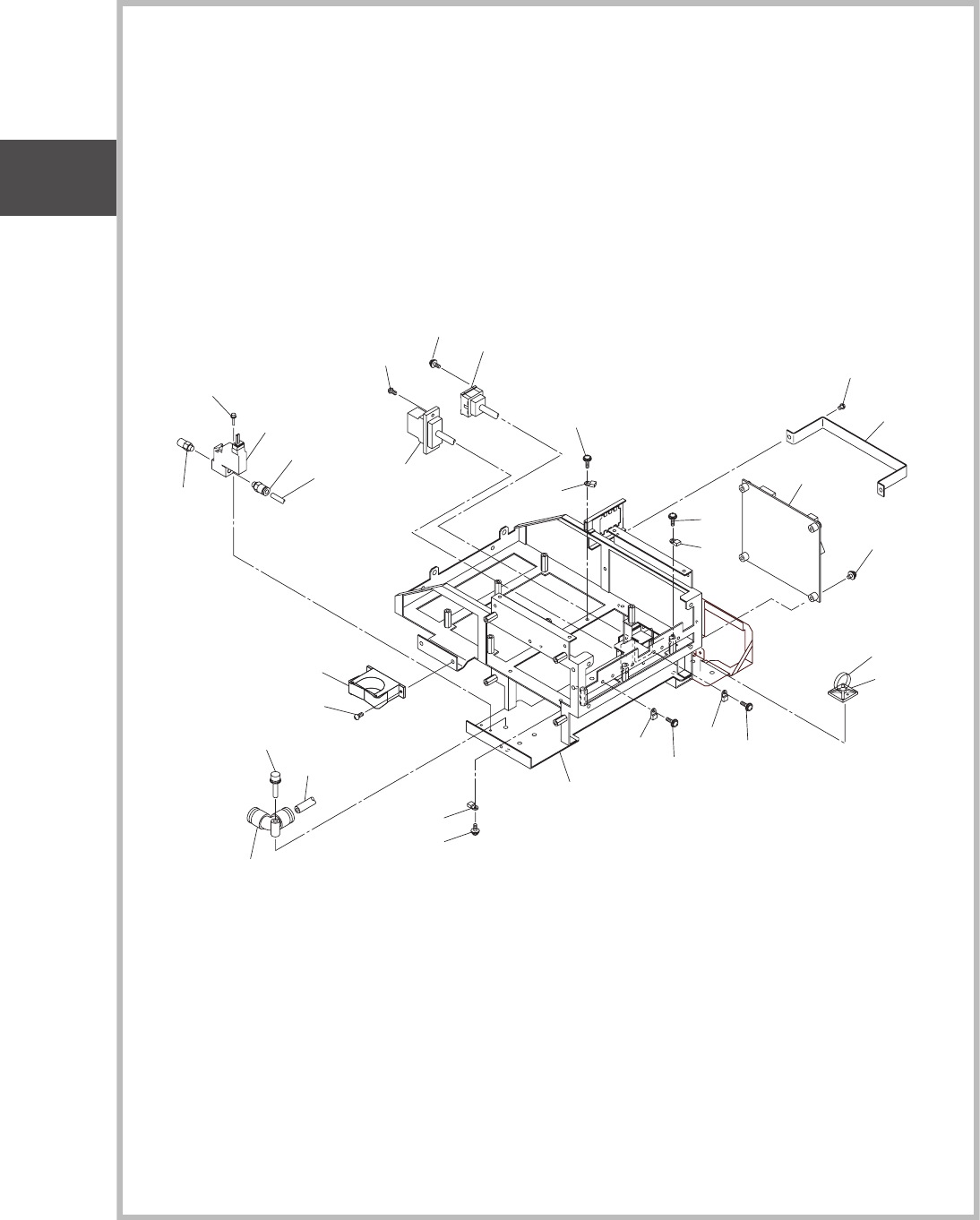

Fig. G1-1
Fig. G1
高速ヘッド部
HIGH SPEED HEAD SECTION
UNIT-6
Fig. G1
HEAD 1
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
MEMO
0912-002
Fig. G1-2
