P-309-002e - 第284页

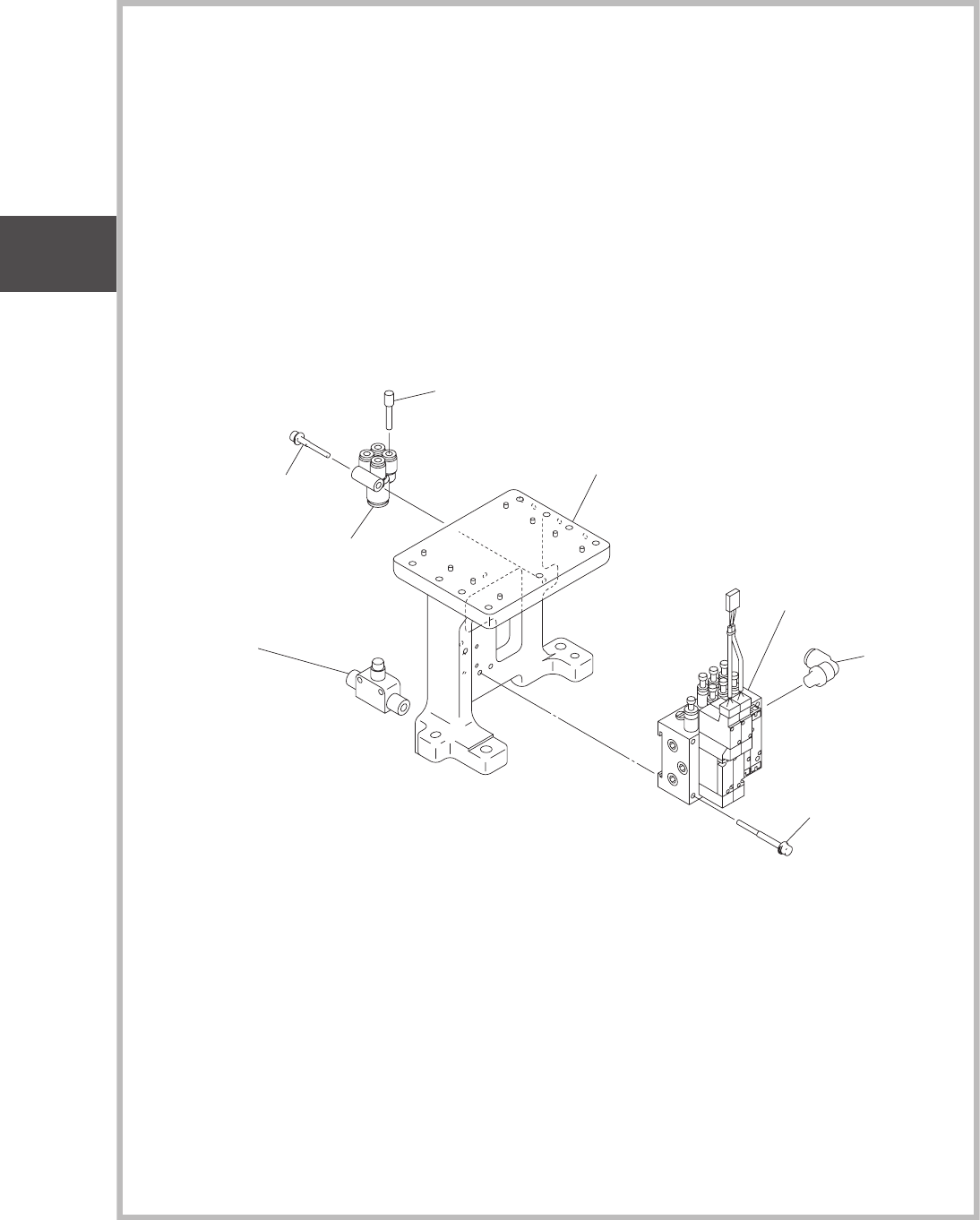

Fig. G2-3 ベース部 Base Section 0912-002 239 243 251 250 248 249 240 247 248 249 241 242 Fig. G2 高速ノズルストッカ部 HIGH SPPED NOZZLE STOCKER SECTION UNIT -6 Fig. G2 ST OCKER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
104 225F0261 PIPE FITTINGS 2 1091908012-004
105 212A2815 GUIDE 2
1091908012-005
106 216A1615 COLLAR 2
1091908012-006
107 216S3241 LEVER 2
1091908012-007
108 216D0603 PIN_HINGE 2
1091908012-008
109 222D0004 BEARING_RADIAL 4
1091908012-009
110 222N0019 SPRING_TENSION 2
1091908012-010
111 211F8213 BRACKET 2
1091908012-011
112 211F8214 BRACKET 2
1091908012-012
113 211D9588 PLATE 2
1091908012-013
114 222M0657 SPRING_COMP 2
1091908012-014
115 211G3505 BLOCK 2
1091908012-015
116 216S2914 LEVER 2
1091908012-016
117 213A1660 SHAFT 2
1091908012-017
118 221AA033 ROHS:BOLT_HEX-SCT 2
1091908012-018
119 221AA031 ROHS:BOLT_HEX-SCT 2
1091908012-019
120 221HA001 WASHER 8
1091908012-020
121 221HA101 WASHER 4
1091908012-021
122 221FA005 NUT_HEX 2
1091908012-022
123 221BA003 ROHS:BOLT_HEX 2
1091908012-023
124 221AA013 ROHS:BOLT_HEX-SCT 4
1091908012-024
125 221AA003 ROHS:BOLT_HEX-SCT 4
1091908012-025
126 221HA002 WASHER 4
1091908012-026
127 221HA102 WASHER 4
1091908012-027
128 221CA026 SET SCREW 4
1091908012-028
129 221AA006 ROHS:BOLT_HEX-SCT 4
1091908012-029
130 221HA003 WASHER 4
1091908012-030
131 221HA203 WASHER 8
1091908012-031
132 221DA003 MACHINE SCREW 6
1091908012-032
133 221FA001 NUT_HEX 2
1091908012-033
134 221AA001 ROHS:BOLT_HEX-SCT 4
1091908012-034
135 221KA003 ROHS:RING 4
1091908012-035
136 221FA003 NUT_HEX 2
1091908012-036
137 221AA005 ROHS:BOLT_HEX-SCT 4
1091908012-037
138 221AA008 ROHS:BOLT_HEX-SCT 4
1091908012-038
144 221HA201 WASHER 4
1091908012-044
153 09198100 ASSY_SENSOR 2
1091908012-053
Fig. G2
0912-002
Fig. G2-2
UNIT-6
Fig. G2
STOCKER 1
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. G2-3
ベース部
Base Section
0912-002
239
243
251
250
248
249
240
247
248
249
241
242
Fig. G2
高速ノズルストッカ部
HIGH SPPED NOZZLE STOCKER SECTION
UNIT-6
Fig. G2
STOCKER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
239 0919I00E CAST BASE 2 1091908012-039
240 09198101 ASSY_VALVE 2
1091908012-040
241 225B0393 AIR LINE EQPT 2
1091908012-041
242 225B0085 AIR LINE EQPT 2
1091908012-042
243 225B0502 AIR LINE EQPT 2
1091908012-043
247 221AA025 ROHS:BOLT_HEX-SCT 4
1091908012-047
248 221HA004 WASHER 6
1091908012-048
249 221HA104 WASHER 6
1091908012-049
250 221AA023 ROHS:BOLT_HEX-SCT 2
1091908012-050
251 225F0713 PIPE FITTINGS 6
1091908012-051
Fig. G2
0912-002
Fig. G2-3
UNIT-6
Fig. G2
STOCKER 1
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
