Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. B1 0912-002 Fig. B1-2 105 0913F109 CORNER_COV_BK_L 1 1091305100-005 106 0913F10A CORNER_COV_BK_R 1 1091305100-006 107 0914F1 1U UNDER_COVER(BA 1 1091305100-007 108 09…
0912-002

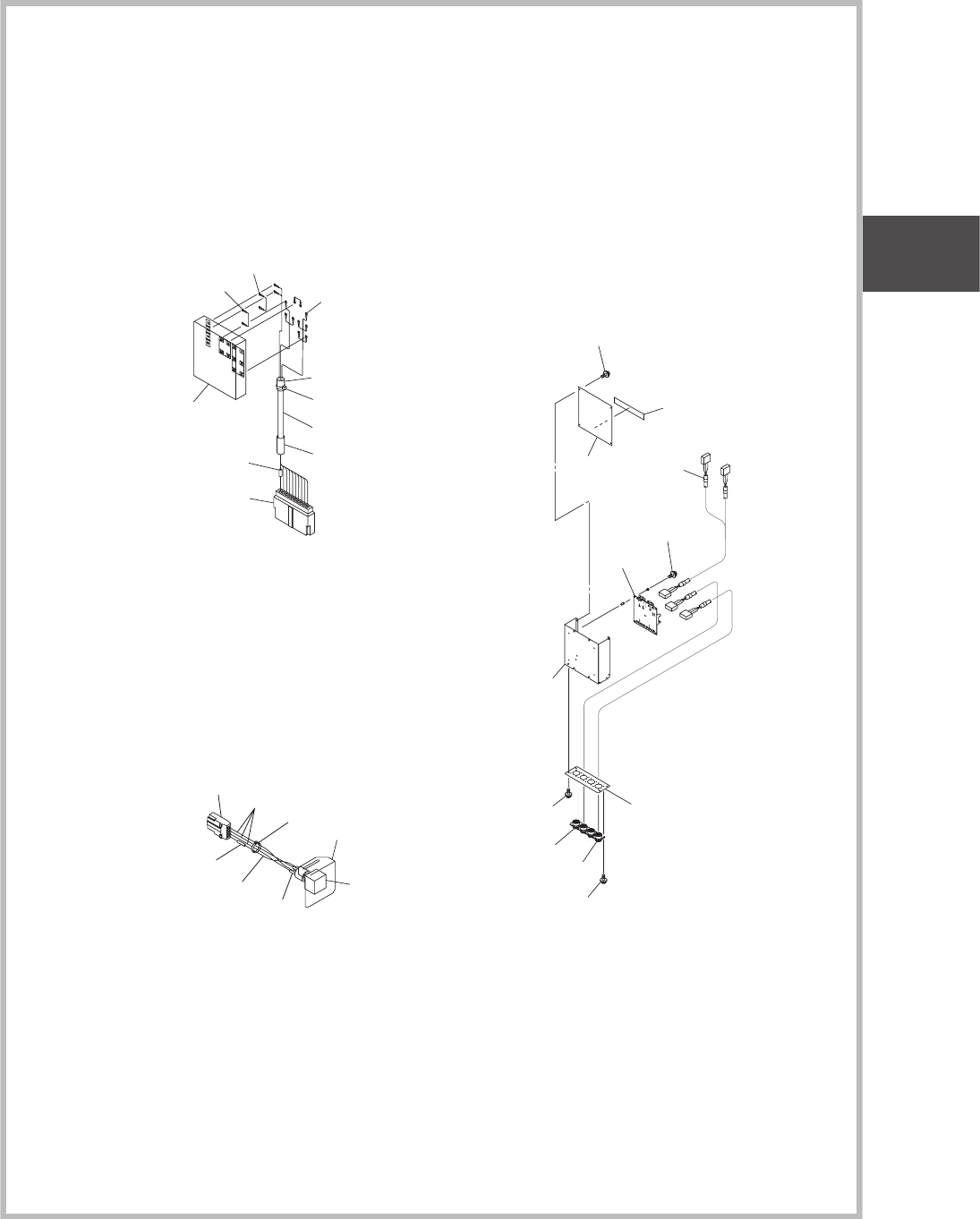

Fig. B1
DETAIL”B”
DETAIL”A” DETAIL”C”
190
184
193
192
188
191
185
190
189
186
187
155
156
154
1A1
1A4
1A2
161
162
159
160
1A5
1A6
1A7
1B2
1B7
163
158
157
X0702A-F
X0702B-F
X0702A-R
X0702B-R
X0702F
X0702R
X0701
X10701
X20701
1A8
1A9
1B5
1B6
1B0
Fig. B1-2
UNIT-1
Fig. B1
COVER
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. B1
0912-002
Fig. B1-2
105 0913F109 CORNER_COV_BK_L 1 1091305100-005
106 0913F10A CORNER_COV_BK_R 1 1091305100-006
107 0914F11U UNDER_COVER(BA 1 1091305100-007
108 0913F103 SIDE_COV_L_UP_F 1 1091305100-008
109 0913F104 SIDE_COV_L_UP_B 1 1091305100-009
110 0914F117 SIDECOVE(L_LO_F 1 1091305100-010
111 0913F10F SIDE_COV_L_LO_B 1 1091305100-011
112 211DE177 PLATE 2 1091305100-012
113 226J2637 MECH_PARTS 9 1091305100-013
114 211FE907 BRACKET 1 1091305100-014
121 0913F10R INSIDE_COV_BA_L 1 1091305100-021
123 211DE512 PLATE 2 1091305100-023
125 0914F10J IN_SIDECOVER(BR 1 1091305100-025
130 0914511L NAME_PLATE 1 1091305100-030
131 221DA213 MACHINE_SCREW 21 1091305100-031
132 221DA215 MACHIN_SCREW 12 1091305100-032
134 221AA019 ROHS_HEX-SCT 2 1091305100-034
136 221AA030 ROHS_HEX-SCT 2 1091305100-036
138 221AA044 ROHS_HEX-SCT 4 1091305100-038
140 221HA005 WASHER 6 1091305100-040
141 221HA303 ROHS_WASHER 6 1091305100-041
143 221HA004 WASHER 2 1091305100-043
145 221HA302 ROHS_WASHER 2 1091305100-045
146 221AA028 ROHS_HEX-SCT 4 1091305100-046
154 211FE908 BRACKET 1 3091401904-004
155 4S1B0032 SWITCH_BUTTON 1 3091401904-005
156 23H20003 ACCESSORY_SW 1 3091401904-006
157 9W310128 CORD 1 3091401904-007
158 9W310129 CORD 1 3091401904-008
159 23K10402 CASE_CONN 1 3091401904-009
160 4J300175 CAB_JOINTTERMIN 4 3091401904-010
161 23N20117 TUBE_WIRING 4 3091401904-011
162 23N20103 TUBE_WIRING 1 3091401904-012
163 23N30737 ACCESS_WIRING(M 1 3091401904-013
171 0913F10J GULLOCKSW_BRA_F 1 3091305101-001
173 221AA024 ROHS_HEX-SCT 3 3091305101-003
174 221HA004 WASHER 3 3091305101-004
175 221HA204 WASHER 3 3091305101-005
184 4S1F0051 SWITCH LIMIT 1 3091401902-004
185 4W203183 CORD 10 3091401902-005
186 23K10434 CASE,CONN 14 3091401902-006
187 4J300175 CABLE JOINT,TERMINAL 1 3091401902-007
188 4J300174 CABLE JOINT,TERMINAL 2 3091401902-008
189 23N20103 TUBE WIRING 1 3091401902-009
190 23N20117 TUBE WIRING 1 3091401902-010
UNIT-1
Fig. B1
COVER
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. B1
0912-002
Fig. B1-2
191 23N30737 ACCESSORY,WIRING(M 1 3091401902-011
192 9W310128 CORD 1 3091401902-012
193 9W310129 CORD 1 3091401902-013
1A1 211B1507 BOX 1 2091401A00-001
1A2 211DE285 PLATE 1 2091401A00-002
1A4 211AD718 COVER 1 2091401A00-004
1A5 4B111618 PCB_MOUNT(UB82) 1 2091401A00-005
1A6 9W210356 CABLE 1 2091401A00-006
1A7 9W210357 CABLE 1 2091401A00-007
1A8 221DA058 MACHINE SCREW 4 2091401A00-008
1A9 221DA053 MACHINE SCREW 4 2091401A00-009
1B0 221DA207 MACHINE SCREW 4 2091401A00-010
1B2 9W210340 CABLE 1 2091401A00-012
1B5 221DA056 MACHINE SCREW 16 2091401A00-015
1B6 221HA203 WASHER 4 2091401A00-016
1B7 09141A0Z NAME PLATE 1 2091401A00-017
UNIT-1
Fig. B1
COVER
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
