Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 301 0948C20D PLA TE 1 1094802206-001 302 0917C20G STEPPING_MOTOR 2 1094802206-002 303 21 1FD904 BRACKET 2 1094802206-003 304 223Q0775 PULLEY_TIMING 2 1094802206-004 305 22…

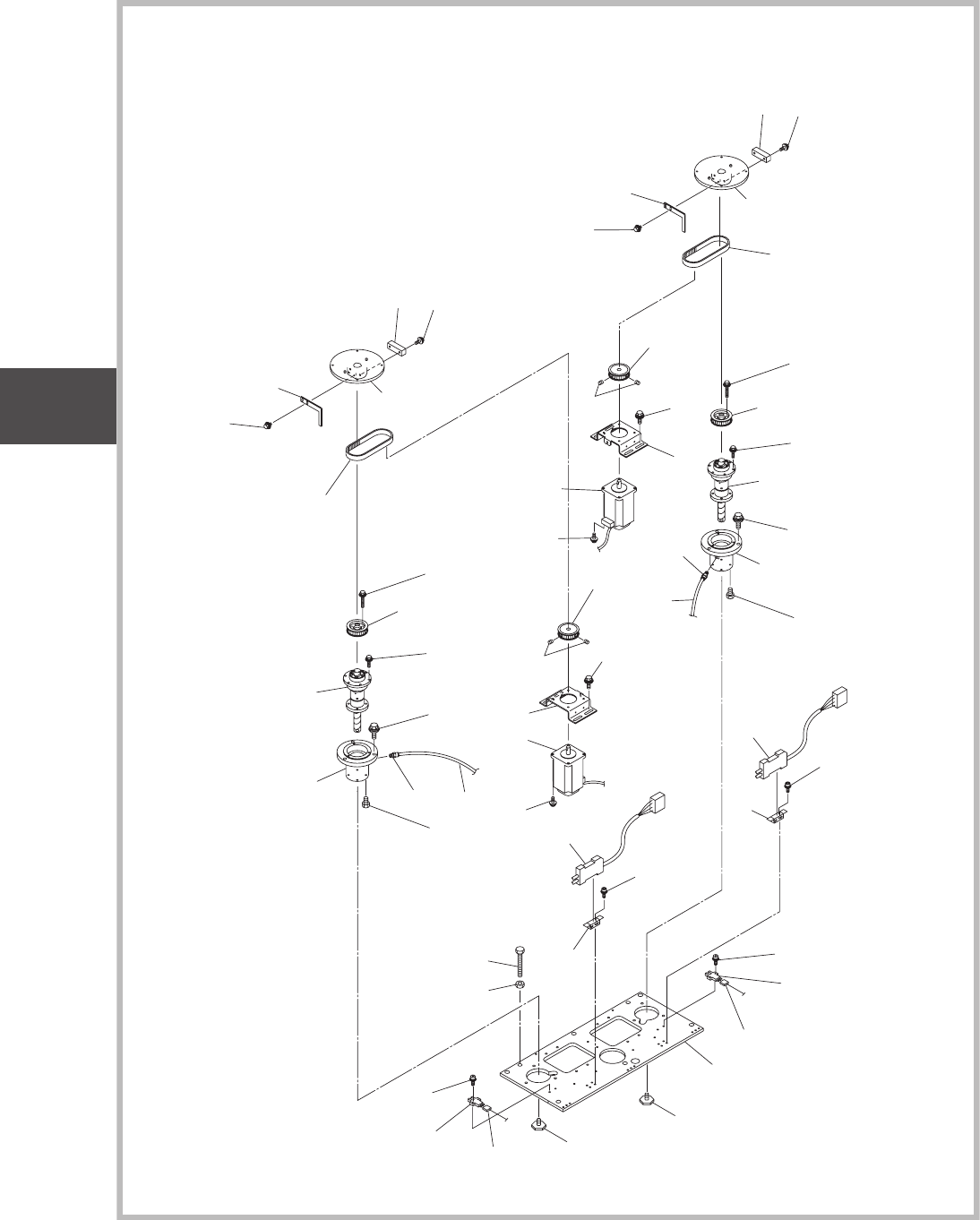

Fig. H1-4
バックアップベース１
Back-Up Base 1
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
311
311
302
335
335
303
304
326
327
332
326
327
332
321
328
333
324
329
336
337
309
318
309
317
318
304
337
324
329
336
303
302
321
328
333
023
334
330
325
333
328
322
340
328
323
333
328
323
023
334
330
325
333
328
322
340
328
323
332
327
331
332
327
331
332
327
319
301
306
306
316
315
316
314
313
341
305
308
307
305
308
307
310
310
317
333
328
323
332
327
319
313
312
338
339
UNIT-7
Fig. H1
CONVEYOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
301 0948C20D PLATE 1 1094802206-001
302 0917C20G STEPPING_MOTOR 2
1094802206-002
303 211FD904 BRACKET 2
1094802206-003
304 223Q0775 PULLEY_TIMING 2
1094802206-004
305 223B0456 BALL_SCREW 2
1094802206-005
306 221B0133 BOLT_HEX 2
1094802206-006
307 216B1817 HOLDER 2
1094802206-007
308 223Q0773 PULLEY_TIMING 2
1094802206-008
309 0948C202 COLLAR(BACKUP) 2
1094802206-009
310 225F0566 PIPE_FITTINGS 2
1094802206-010
311 211FD378 BRACKET 2
1094802206-011
312 9W210448 CABLE 1
1094802206-012
313 23G10001 SENSOR_PHOTO 2
1094802206-013
314 09482502 ASSY_SENSOR 1
1094802206-014
315 09482503 ASSY_SENSOR 1
1094802206-015
316 23G00312 SENSOR_PELEC 2
1094802206-016
317 0948C203 BLOCK(BACKUP) 2
1094802206-017
318 223L0379 BELT_TIMING 2
1094802206-018
319 221DA013 MACHINE_SCREW 4
1094802206-019
320 221AA017 ROHS_HEX-SCT 8
1094802206-020
321 221AA018 ROHS_HEX-SCT 4
1094802206-021
322 221AA019 ROHS_HEX-SCT 6
1094802206-022
323 221AA021 ROHS_HEX-SCT 12
1094802206-023
324 221AA031 ROHS_HEX-SCT 8
1094802206-024
325 221AA044 ROHS_HEX-SCT 6
1094802206-025
326 221AA005 ROHS_HEX-SCT 4
1094802206-026
327 221HA003 WASHER 12
1094802206-027
328 221HA004 WASHER 22
1094802206-028
329 221HA005 WASHER 8
1094802206-029
330 221HA006 WASHER 6
1094802206-030
331 221AA006 ROHS_HEX-SCT 4
1094802206-031
332 221HA103 WASHER 12
1094802206-032
333 221HA104 WASHER 14
1094802206-033
334 221HA106 WASHER 6
1094802206-034
335 0917C303 TUBE_D4 1
1094802206-035
336 221HA303 ROHS_WASHER 8
1094802206-036
337 221CA007 SET_SCREW 4
1094802206-037
338 221BB008 ROHS:BOLT_HEX 2
1094802206-038
339 221FA015 NUT_HEX 2
1094802206-039
340 221HA204 WASHER 8
1094802206-040
341 9W210447 CABLE 2
1094802206-041
Fig. H1
0912-002
Fig. H1-4
UNIT-7
Fig. H1
CONVEYOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC

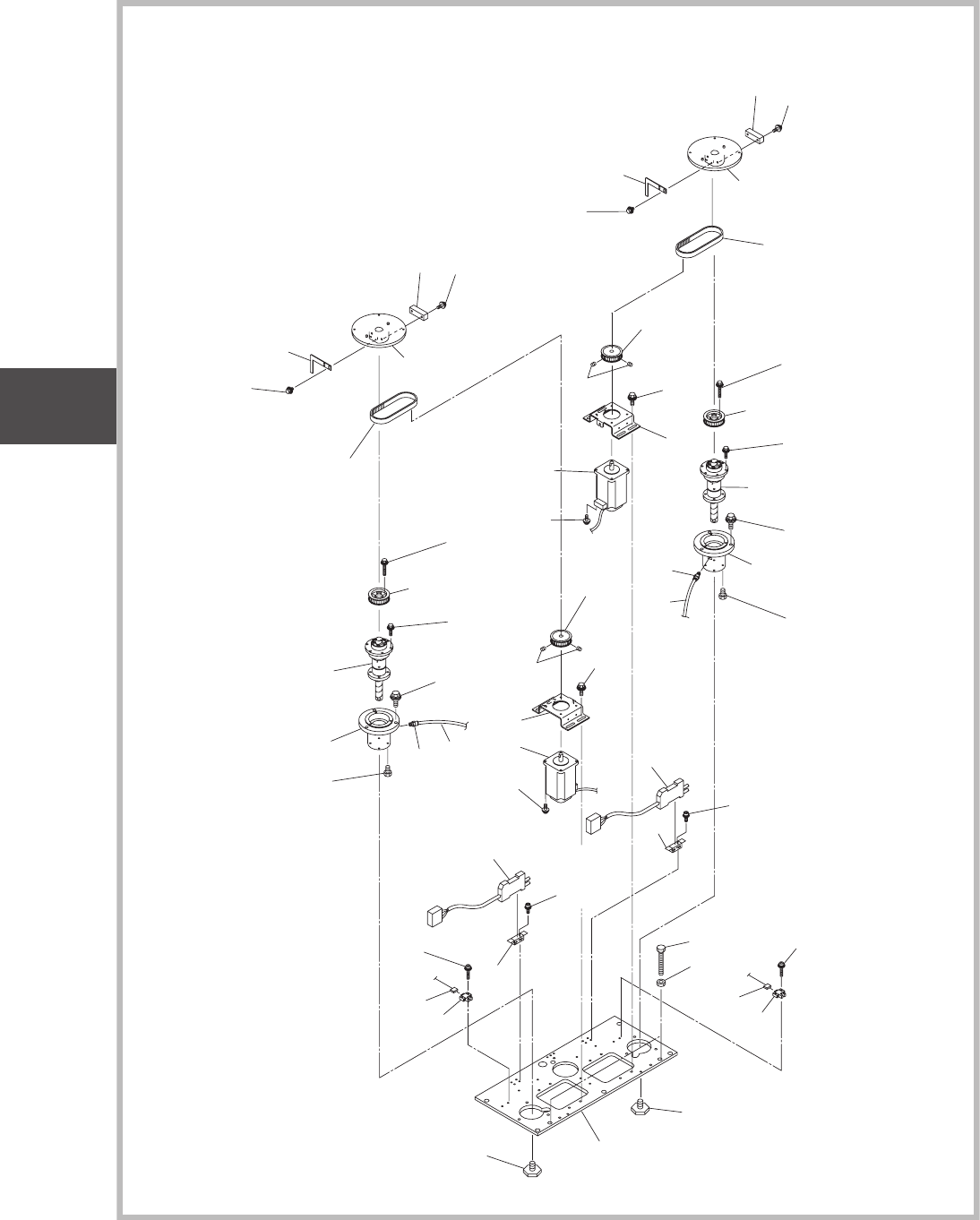

Fig. H1-5
バックアップベース２
Back-Up Base 2
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
411
411
402
403
401
404
413
441
413
412
406
419
427
432
419
427
432
426
427
432
426
427
432
421
428
433
424
429
436
437
407
408
405
409
407
408
405
423
428
440
420
423
428
440
422
428
433
422
428
433
425
430
434
425
430
434
420
409
404
437
424
429
436
403
402
421
428
433
406
410
410
438
439
435
435
432
427
431
432
427
431
416
415
416
414
417
433
428
423
417
433
428
423
418
418
UNIT-7
Fig. H1
CONVEYOR
