P-309-002e - 第343页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE A01 0948C105 CHUTE2K 1 109480210A-001 A02 223Q0663 PULLEY_TIMING 2 109480210A-002 A03 21 1DE892 PLA TE 1 109480210A-003 A04 21 1FD787 BRACKET 1 109480210A-004 A05 21 1FD78…

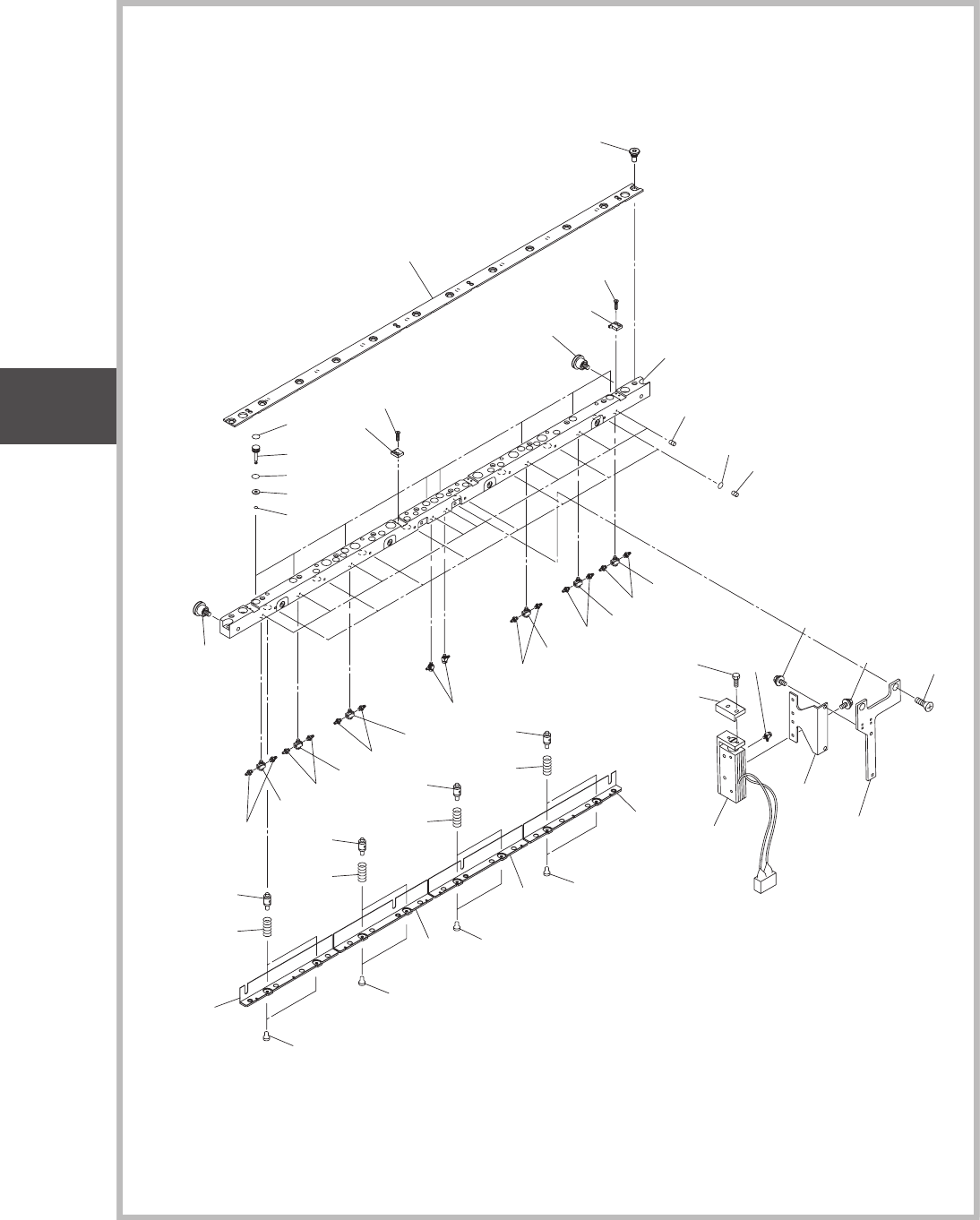

Fig. H1-11
固定シュート
B
Fixed Chute B
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
A27
A27
A27
A27
A07
A05
A04
A16
A13
A16
A13
A16
A13
A16
A13
A18
A18
A18
A18
A18
A19
A17
A17
A17
A17
A17
A17
A02
A10
A11
A09
A12
A08
A03
A02
A01
A29
A06
A14
A15
A28
A26
A22
A20
A19
A21
A23
A33
A31
A24
A25
A31
A24
A25
A32
A14
A30
A30
A18
UNIT-7
Fig. H1
CONVEYOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
A01 0948C105 CHUTE2K 1 109480210A-001
A02 223Q0663 PULLEY_TIMING 2
109480210A-002
A03 211DE892 PLATE 1
109480210A-003
A04 211FD787 BRACKET 1
109480210A-004
A05 211FD788 BRACKET 1
109480210A-005
A06 211FD789 BRACKET 1
109480210A-006
A07 211FD790 BRACKET 1
109480210A-007
A08 226A0144 SEAL 8
109480210A-008
A09 213A1378 SHAFT 8
109480210A-009
A10 226A0074 SEAL 8
109480210A-010
A11 226A0001 SEAL 8
109480210A-011
A12 216Q0044 BUSH_LOCATE 8
109480210A-012
A13 222C0133 GUIDE_SLIDE 8
109480210A-013
A14 23G00316 SENSOR_PELEC 2
109480210A-014
A15 211E1117 SPACER 8
109480210A-015
A16 222M1297 SPRING_COMP 8
109480210A-016
A17 225F0421 PIPE_FITTINGS 12
109480210A-017
A18 225F0330 PIPE_FITTINGS 6
109480210A-018
A19 225F0240 PIPE_FITTINGS 4
109480210A-019
A20 09482509 ASSY_CYLINDER 1
109480210A-020
A21 211G5843 BLOCK 1
109480210A-021
A22 211FE750 BRACKET 1
109480210A-022
A23 211FE532 BRACKET 1
109480210A-023
A24 221HA104 WASHER 4
109480210A-024
A25 221HA004 WASHER 4
109480210A-025
A26 221A0431 BOLT_HEX-SCT 12
109480210A-026
A27 221A0443 BOLT_HEX-SCT 8
109480210A-027
A28 221CA001 SET_SCREW 8
109480210A-028
A29 221C2001 SET SCREW 8
109480210A-029
A30 221DA102 MACHINE_SCREW 4
109480210A-030
A31 221AA016 ROHS_HEX-SCT 4
109480210A-031
A32 221AA006 ROHS_HEX-SCT 2
109480210A-032
A33 221DA114 MACHINE_SCREW 2
109480210A-033
Fig. H1
0912-002
Fig. H1-11
UNIT-7
Fig. H1
CONVEYOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. H1-12
可動シュート
A1,3
Moved Chute A1,3
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
B04
B01
B06
B08
B03
B05
B07
B04
B02
B04
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B06
B08
B03
B05
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B04
B07
UNIT-7
Fig. H1
CONVEYOR
