P-309-002e - 第344页

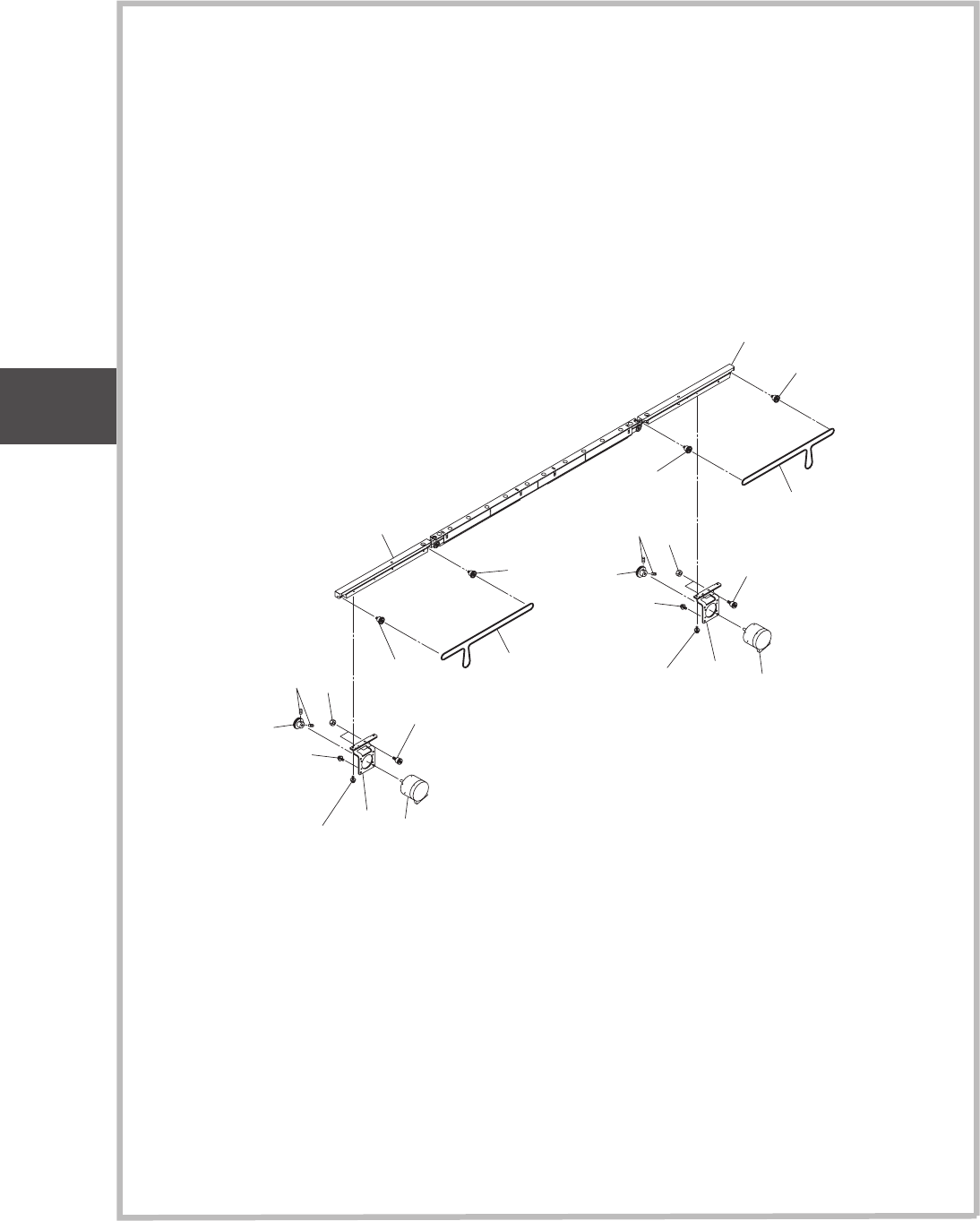

Fig. H1-12 可動シュート A1,3 Moved Chute A1,3 0912-002 Fig. H1 デュアルコンベア部 DUAL CONVEYOR SECTION B04 B01 B06 B08 B03 B05 B07 B04 B02 B04 B09 B10 B 1 1 B12 B13 B14 B16 B17 B18 B15 B06 B08 B03 B05 B09 B10 B 1 1 B12 B13 B14 B16 B17…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
A01 0948C105 CHUTE2K 1 109480210A-001
A02 223Q0663 PULLEY_TIMING 2
109480210A-002
A03 211DE892 PLATE 1
109480210A-003
A04 211FD787 BRACKET 1
109480210A-004
A05 211FD788 BRACKET 1
109480210A-005
A06 211FD789 BRACKET 1
109480210A-006
A07 211FD790 BRACKET 1
109480210A-007
A08 226A0144 SEAL 8
109480210A-008
A09 213A1378 SHAFT 8
109480210A-009
A10 226A0074 SEAL 8
109480210A-010
A11 226A0001 SEAL 8
109480210A-011
A12 216Q0044 BUSH_LOCATE 8
109480210A-012
A13 222C0133 GUIDE_SLIDE 8
109480210A-013
A14 23G00316 SENSOR_PELEC 2
109480210A-014
A15 211E1117 SPACER 8
109480210A-015
A16 222M1297 SPRING_COMP 8
109480210A-016
A17 225F0421 PIPE_FITTINGS 12
109480210A-017
A18 225F0330 PIPE_FITTINGS 6
109480210A-018
A19 225F0240 PIPE_FITTINGS 4
109480210A-019
A20 09482509 ASSY_CYLINDER 1
109480210A-020
A21 211G5843 BLOCK 1
109480210A-021
A22 211FE750 BRACKET 1
109480210A-022
A23 211FE532 BRACKET 1
109480210A-023
A24 221HA104 WASHER 4
109480210A-024
A25 221HA004 WASHER 4
109480210A-025
A26 221A0431 BOLT_HEX-SCT 12
109480210A-026
A27 221A0443 BOLT_HEX-SCT 8
109480210A-027
A28 221CA001 SET_SCREW 8
109480210A-028
A29 221C2001 SET SCREW 8
109480210A-029
A30 221DA102 MACHINE_SCREW 4
109480210A-030
A31 221AA016 ROHS_HEX-SCT 4
109480210A-031
A32 221AA006 ROHS_HEX-SCT 2
109480210A-032
A33 221DA114 MACHINE_SCREW 2
109480210A-033
Fig. H1
0912-002
Fig. H1-11
UNIT-7
Fig. H1
CONVEYOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Fig. H1-12
可動シュート
A1,3
Moved Chute A1,3
0912-002
Fig. H1
デュアルコンベア部
DUAL CONVEYOR SECTION
B04
B01
B06
B08
B03
B05
B07
B04
B02
B04
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B06
B08
B03
B05
B09
B10
B
11
B12
B13
B14
B16
B17
B18
B15
B04
B07
UNIT-7
Fig. H1
CONVEYOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
B01 0948C107 CHUTE13R 1 109480210H-001
B02 0948C106 CHUTE13L 1
109480210H-002
B03 4M140178 MOTOR_STEPPING 2
109480210H-003
B04 223Q0663 PULLEY_TIMING 4
109480210H-004
B05 223Q0749 PULLEY_TIMING 2
109480210H-005
B06 223M0059 PULLEY_FLAT 4
109480210H-006
B07 223L0384 BELT_TIMING 2
109480210H-007
B08 0948C419 MBRACKET(1LR) 2
109480210H-008
B09 221FA009 NUT_HEX 4
109480210H-009
B10 221HA005 WASHER 4
109480210H-010
B11 221HA105 WASHER 4
109480210H-011
B12 221AA006 ROHS_HEX-SCT 4
109480210H-012
B13 221HA003 WASHER 4
109480210H-013
B14 221HA103 WASHER 4
109480210H-014
B15 221CA005 SET_SCREW 4
109480210H-015
B16 221AA017 ROHS_HEX-SCT 4
109480210H-016
B17 221HA004 WASHER 4
109480210H-017
B18 221HA104 WASHER 4
109480210H-018
Fig. H1
0912-002
Fig. H1-12
UNIT-7
Fig. H1
CONVEYOR
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
