P-309-002e - 第54页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 4 21 1AD638 COVER 1 1092004000-004 5 221AA028 ROHS:BOL T_HEX-SCT 4 1092004000-005 6 221HA005 WASHER 19 1092004000-006 7 221HA105 WASHER 19 1092004000-007 8 0920E20T COVER …
0912-002

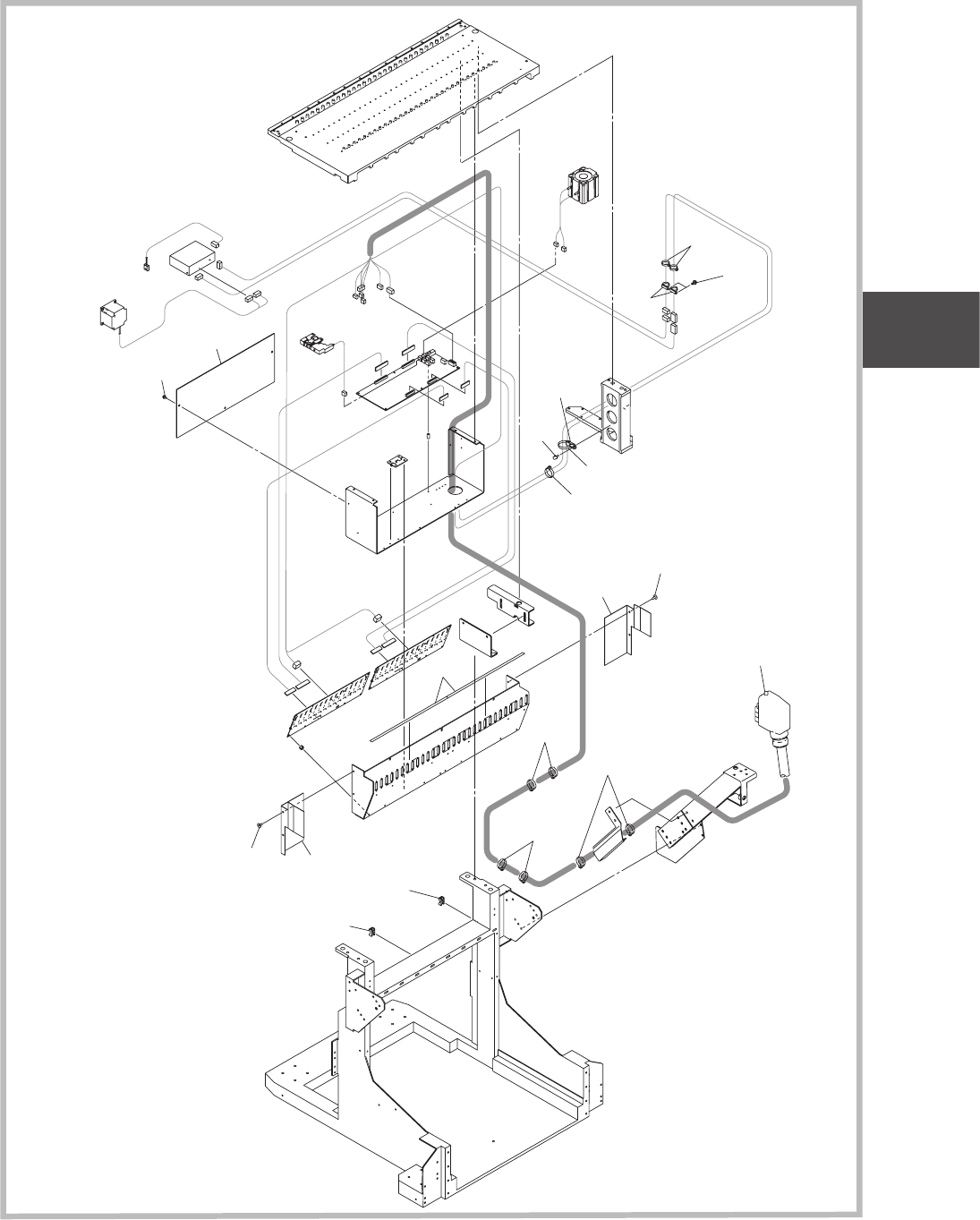

Fig. C1
Fig. C1-1
12
13
14
14
21
14
25
23
29
X6910
X6914
26
29
23
26
28
M63
X300
32
30
31
24
27
27
24
24
See Fig C1-4
Key No.3A4
32
28
31
41
UNIT-2
Fig. C1
CART
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
4 211AD638 COVER 1 1092004000-004
5 221AA028 ROHS:BOLT_HEX-SCT 4
1092004000-005
6 221HA005 WASHER 19
1092004000-006
7 221HA105 WASHER 19
1092004000-007
8 0920E20T COVER 1
1092004000-008
9 221DA212 MACHINE SCREW 2
1092004000-009
12 211AD617 COVER 1
1092004000-012
13 211AD618 COVER 1
1092004000-013
14 221DA207 MACHINE SCREW 9
1092004000-014
15 221AA029 ROHS:BOLT_HEX-SCT 11
1092004000-015
16 221AA036 ROHS:BOLT_HEX-SCT 4
1092004000-016
17 211AD641 COVER 1
1092004000-017
21 0920E10E EL BOX BACK 1
1092004000-021
22 23N30727 ACCESSORY_WIRING 2
1092004000-022
23 0916D60A ACCESSORY,WIRING(M 3
1092004000-023
24 0916E303 ACCESSORY,WIRING(M 6
1092004000-024
25 0920E303 ACCESSORY_WRING 2
1092004000-025
26 226J0373 MECH PARTS(MOUNTING BASE) 3 1092004000-026
27 23N30632 WIRING 3
1092004000-027
28 221DA208 MACHINE SCREW 2
1092004000-028
29 221DA213 MACHINE SCREW 1
1092004000-029
30 221DA022 MACHINE SCREW 1
1092004000-030
31 221HA104 WASHER 5
1092004000-031
32 221HA004 WASHER 5
1092004000-032
33 221AA017 ROHS:BOLT_HEX-SCT 4
1092004000-033
36 0920E216 COVER 1
1092004000-036
37 0920E213 BOX 1
1092004000-037
38 221AA041 ROHS:BOLT_HEX-SCT 2
1092004000-038
39 221HA106 WASHER 2
1092004000-039
40 221HA006 WASHER 2
1092004000-040
41 09200008 ASSY_NAMEPLATE 1
1092004000-041
42 0920E20Q KOTEI_KANAGU_1 1
1092004000-042
43 0920E20R KOTEI_KANAGU_2 1
1092004000-043
46 211DE267 PLATE 1
3092004106-001
47 211FE233 BRACKET 1
3092004106-002
48 211FE234 BRACKET 1
3092004106-003
49 221AA007 ROHS:BOLT_HEX-SCT 4
3092004106-004
51 0920E10A COVER 1
3092004107-001
52 211AD673 COVER 1
3092004107-002
53 221DA208 MACHINE SCREW 4
3092004107-003
54 23N30735 ACCESSORY WIRING 1
3092004107-004
Fig. C1-1
Fig. C1
0912-002
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
UNIT-2
Fig. C1
CART
MEMO
