P-309-002e - 第61页
0912-002 Fig. C1 Fig. C1-4 355 356 353 377 360 X6908 X68100B X68101B X68102B X68101A X68102A X68100A X6909 X6901 X6902 X6903 X6904 X6910 X6913 X691 1 X6912 X6914 X6915 X6906 U68 U68 U69 B6904 Y6908 B6906 382 3A3 380 381 …

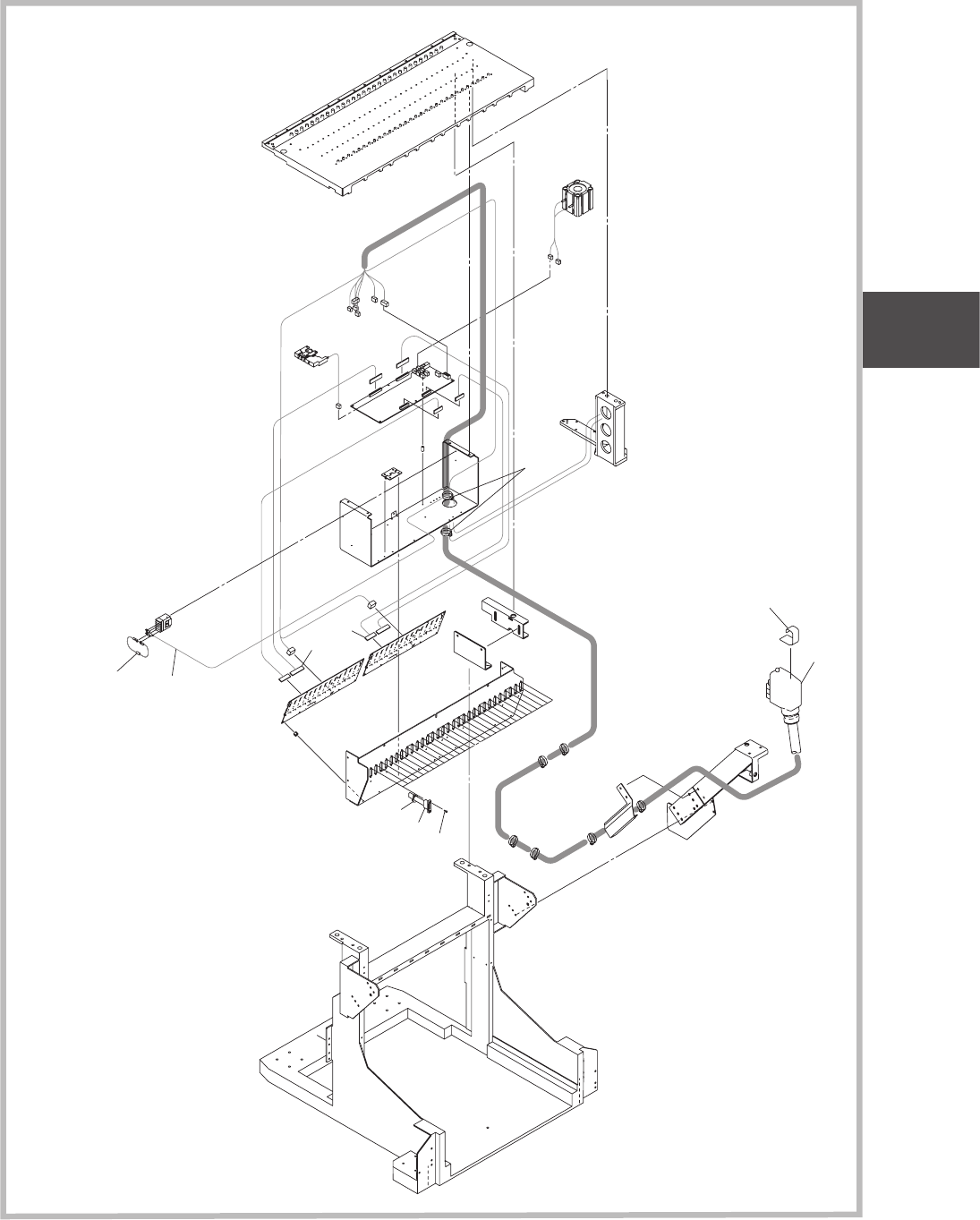

Fig. C1-4
電装ボックス
Electrical Box
0912-002
352
351
361
3A1
363
363
3A2
366
362
387
357
358
376
367
367
366
359
378
379
375
383
384
385
309
307
308
303
304
305
371
372
362
386
355
356
353
377
360
X6908
X68100B
X68101B
X68102B
X68101A
X68102A
X68100A
X6909
X6901
X6902
X6903
X6904
X6910
X6913
X691
1
X6912
X6914
X6915
X6906
U68
U68
U69
B6904
Y6908
B6906
382
3A3
380
381
373
X300
3A4
388
370
See Fig C1-5
Key No.451
306
307
308
Fig. C1
カート部
CART SECTION
UNIT-2
Fig. C1
CART
0912-002
Fig. C1
Fig. C1-4
355
356
353
377
360
X6908
X68100B
X68101B
X68102B
X68101A
X68102A
X68100A
X6909
X6901
X6902
X6903
X6904
X6910
X6913
X691
1
X6912
X6914
X6915
X6906
U68
U68
U69
B6904
Y6908
B6906
382
3A3
380
381
373
X300
3A4
388
370
UNIT-2
Fig. C1
CART
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. C1-4
Fig. C1
0912-002
303 221AA017 ROHS:BOLT_HEX-SCT 3 1092004500-003
304 221HA004 WASHER 3
1092004500-004
305 221HA104 WASHER 3
1092004500-005
306 221AA029 ROHS:BOLT_HEX-SCT 3
1092004500-006
307 221HA005 WASHER 4
1092004500-007
308 221HA105 WASHER 4
1092004500-008
309 221BA012 ROHS:BOLT_HEX 1
1092004500-009
351 211AD668 COVER 1
3092004300-001
352 0920E10D EL BOX 1
3092004300-002
353 4W204901 CORD 30
3092004300-003
355 4W204583 CORD 2
3092004300-005
356 4W204584 CORD 2
3092004300-006
357 23L10024 ACCESSORY_P_C_B 6
3092004300-007
358 23L10113 ACCESSORY_P_C_B 6
3092004300-008
359 221DA018 MACHINE SCREW 6
3092004300-009
360 221E0298 BOLT 60
3092004300-010
361 23L10114 ACCESSORY_P_C_B 16
3092004300-011
362 23N30726 ACCESSORY_WIRING 4
3092004300-012
363 221DA202 MACHINE SCREW 32
3092004300-013
366 226F0186 HINGE 2
3092004300-016
367 221DA113 MACHINE SCREW 8
3092004300-017
370 0920E10P BRACKET 1
3092004300-020
371 4S200100 RELAY 1
3092004300-021
372 23N10019 BRACKET_WIRING 1
3092004300-022
373 4W204979 CORD 1
3092004300-023
375 221DA053 MACHINE SCREW 2
3092004300-025
376 221DA208 MACHINE SCREW 1
3092004300-026
377 23N30737 ACCESSORY,WIRING(M 50 3092004300-027
378 221HA003 WASHER 6
3092004300-028
379 221HA103 WASHER 6
3092004300-029
380 4J300050 CABLE JOINT,TERMINAL 2 3092004300-030
381 23N20112 TUBE WIRING 2
3092004300-031
382 23N20128 TUBE WIRING 1
3092004300-032
383 221DA021 MACHINE SCREW 3
3092004300-033
384 221HA104 WASHER 3
3092004300-034
385 221HA004 WASHER 3
3092004300-035
386 226J0373 MECH PARTS(MOUNTING BASE) 1 3092004300-036
387 23N30725 ACCESSORY_WIRING 1
3092004300-037
388 0920E302 ACCESSORY_WRING 3
3092004300-038
3A1 4B111623 PCB_MOUNT(UB74) 2
3092004300-101
3A2 4B111609 PCB_MOUNT(UB76) 1
3092004300-102
3A3 4V320003 DIODE_DS135AC 1
3092004300-103
3A4 0920E306 CORD 1
3092004300-104
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
UNIT-2
Fig. C1
CART
