Retrofit instructions - Schmersal switch door interlock for the SIPLACE MT C 2 07/2005 Edition 17 : Pull the switch out and unscrew it from the mounting pla te. 2 2 : Unscrew the switch from its mount (2 screws). 2 2 2 T…
Retrofit instructions - Schmersal switch door interlock for the SIPLACE MTC 2
07/2005 Edition
16
: Remove the panel from the right-hand side of the MTC2 (2 screws).
2
: Detach the switch on the front from its position (2 screws).
2
2 screws
Two screws
Switch on the front
Retrofit instructions - Schmersal switch door interlock for the SIPLACE MTC 2
07/2005 Edition
17

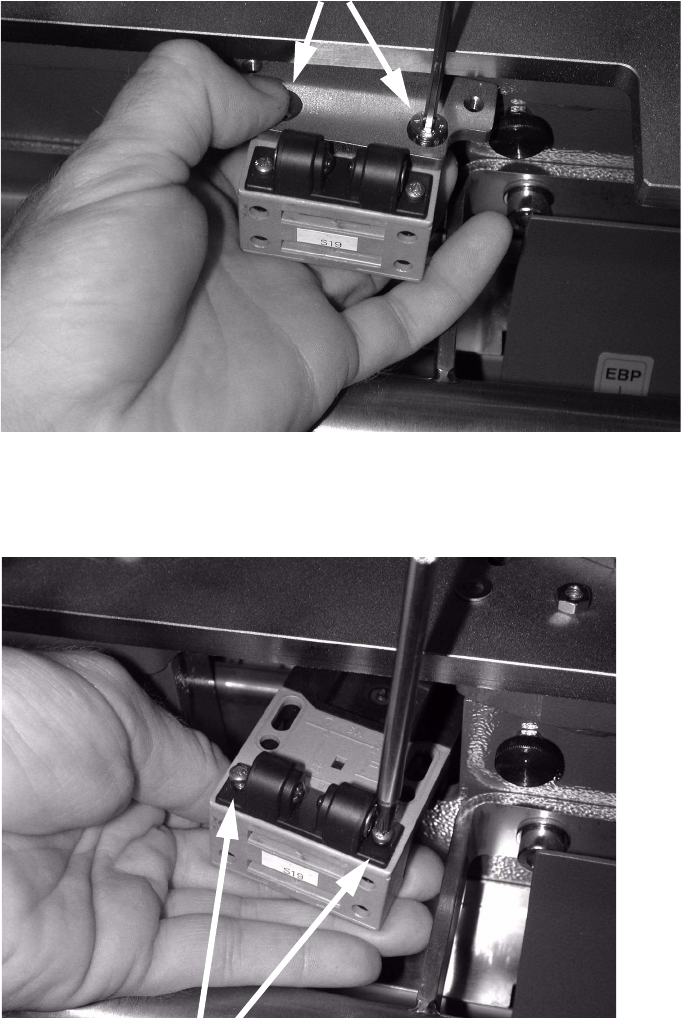

: Pull the switch out and unscrew it from the mounting plate.
2
2
: Unscrew the switch from its mount (2 screws).
2
2
2
Two screws
Two screws
Retrofit instructions - Schmersal switch door interlock for the SIPLACE MTC 2
07/2005 Edition
18
: Reverse the order described above to fit the new switch.
2
: Replace the old actuator in the door with the new actuator.
2
2
: Adjust the switch and actuator with respect to one another so that
– the door can be opened and closed without resistance,
– the safety circuit is interrupted when the door is opened,
– when the door is closed, it is held closed securely by the switch.
2
2
2
2
2
2
Remove existing
actuator
Screw on the new actuator
