SIPLACE Software Guide SR.504.xx 2 Introduction and basic terms
Issue 01/03 EN 2.1 Abbreviations
11
2 Introduction and basic terms
This chapter describes the abbreviations used in this guide, as well as the indicators of a SIPLACE
machine and the system components of a SIPLACE line. 2
2.1 Abbreviations
2
2
Abbreviation Meaning
PA Processing Area
CO Component
PCB Printed Circuit Board
LC Line Computer
MC Machine Controller
MTC Matrix-Tray Changer
SC Station Computer
UPS Uninterruptible Power Supply
TSS Technical Solution System
Tab. 2.1 - 1 Abbreviations used in this guide
2 Introduction and basic terms SIPLACE Software Guide SR.504.xx
2.2 Overview Issue 01/03 EN
12
2.2 Overview
2.2.1 Overview of the SIPLACE HF
2
Fig. 2.2 - 1 Diagram showing an overview of a placement machine (e.g. the HF)
Key to Fig. 2.2 - 1
(1) Monitor (on both sides)
(2) Keyboard (on both sides)
(3) Location 1
(4) Location 2
(5) Location 3
(6) Location 4
2
2
1
1
2
4
3
5
6
SIPLACE Software Guide SR.504.xx 2 Introduction and basic terms
Issue 01/03 EN 2.2 Overview
13
A station may exist as part of a line or may be the only machine in a line. 2
Each station has a "station computer" which is located on the side of the input area behind a ma-
chine base door. This area also accommodates the uninterruptible power supply (UPS). The UPS
is available as an option.
2
A monitor with touch screen and retractable keyboard with an integrated trackball is mounted on
either side of the station (see Figure 2.2 - 1). 2
NOTE
You can operate the station computer software either via the keyboard and trackball or via the
touch screen. 2
2.2.2 Overview of the system components that make up a SIPLACE line
2

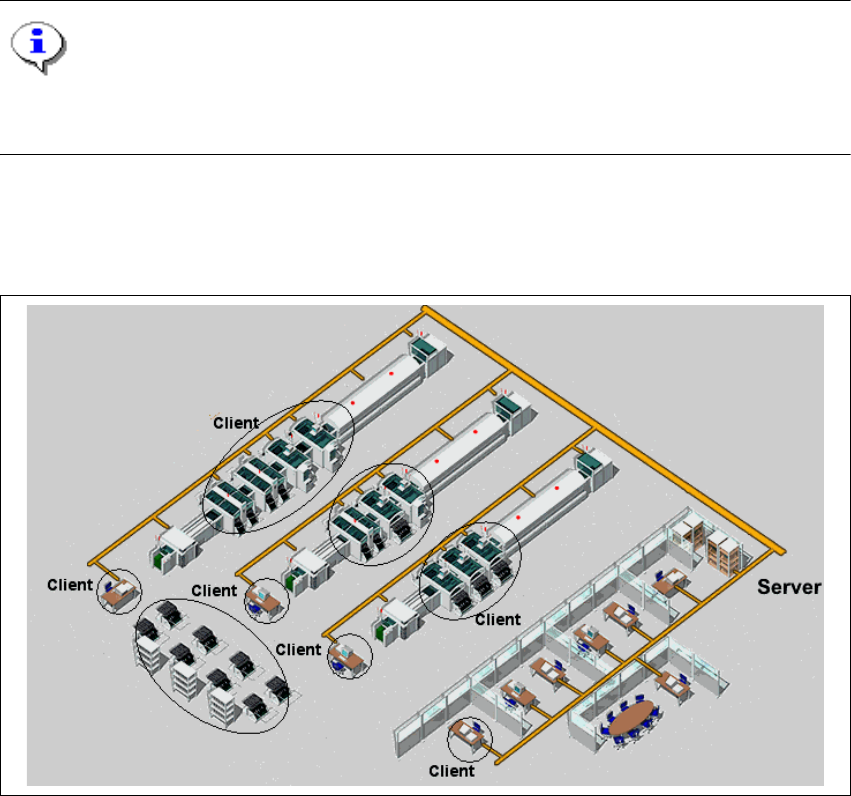

Fig. 2.2 - 2 Schematic diagram of the network in a SIPLACE line (example)
The individual stations obtain their placement data from a line control computer (SIPLACE Pro).2
The placement data is sent by the job control facility on the host computer to the various stations.2
