SIPLACE S oftware Guide SR.504.xx 3 Graphical user interface Issue 01/03 E N 3.2 Components of t he user in terface 21 Meaning of Other Icons and Markings 3 If a trac k error , mach ine er ror or c onveyor er ror occ urs…
3 Graphical user interface SIPLACE Software Guide SR.504.xx
3.2 Components of the user interface Issue 01/03 EN
20
If the PCB is located on the input conveyor, the following dialog box is opened. 3
3

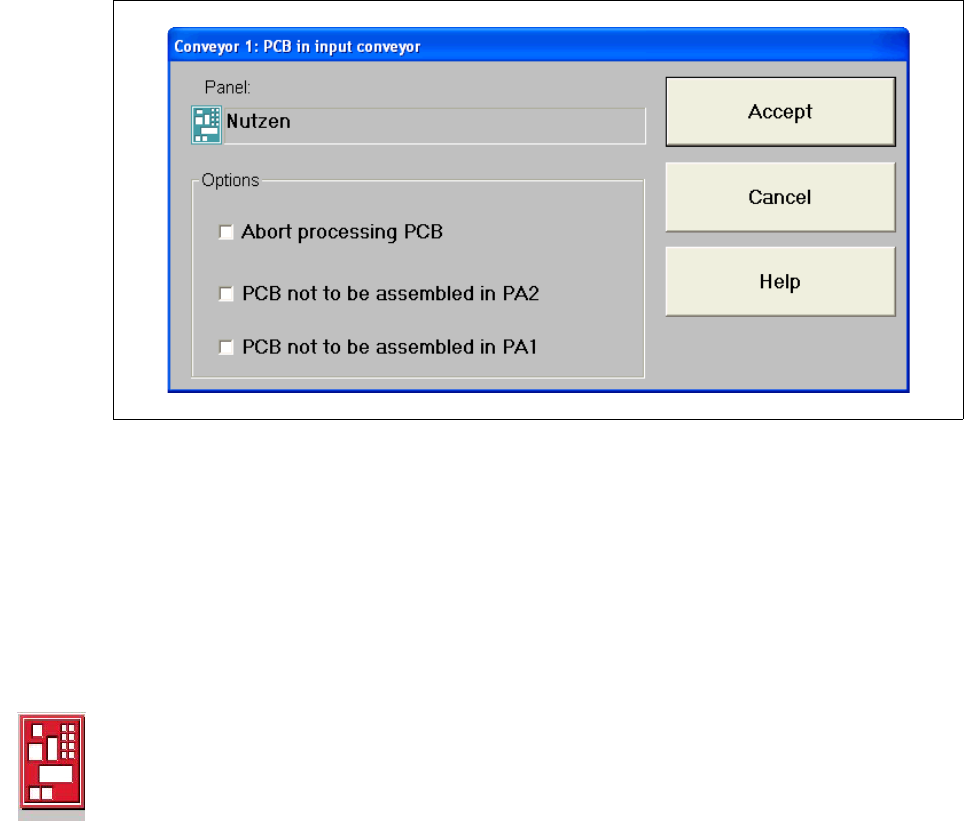

Fig. 3.2 - 3 "Conveyor 1: PCB in input conveyor" dialog
3
Å Click the checkbox "Abort processing PCB".
Å Click the Accept button.
Processing of the PCB is aborted.
The printed circuit board that has not been processed in this machine is transported onto the
output conveyor, and the operator is prompted to remove the board manually
Processing of PCB aborted 3
If processing of the PCB has been aborted by clicking the PCB icon (see example above), the
color of the PCB icon changes to red.
The icon is also displayed in red if a PCB is manually placed on processing conveyor 1 or 2. The
PCB is thus not recognized by the system and is transported to the output conveyor. 3
SIPLACE Software Guide SR.504.xx 3 Graphical user interface
Issue 01/03 EN 3.2 Components of the user interface
21
Meaning of Other Icons and Markings 3
If a track error, machine error or conveyor error occurs, then the corresponding graphic is high-
lighted in red (see examples below). 3

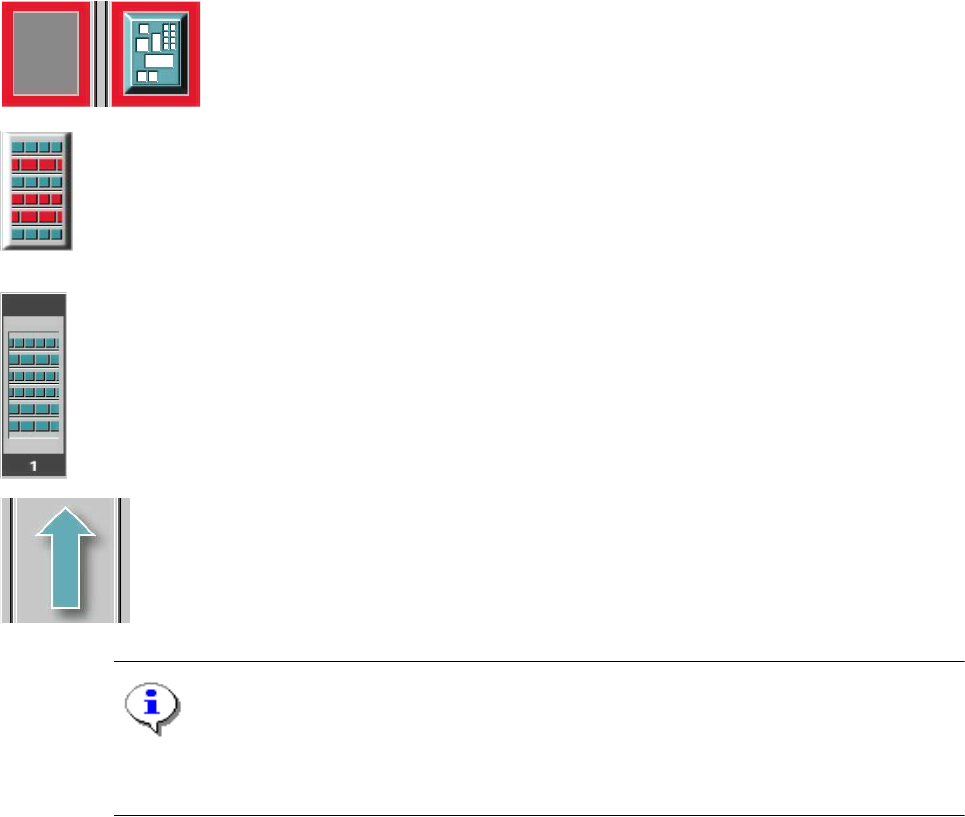

Examples:If an error occurs in a processing area, then this is displayed with a red
border.
You can abort processing of the PCB which is located in this area by clicking the
PCB icon.
If a conveyor error occurs during transport, this is indicated by the presence of red
bars on the left and right.
If a track error occurs (e.g. missing components), then individual parts of the
graphic which correspond to the layout of the current feeder location are displayed
against a red background. In addition, the graphic is displayed with a contour.
If you click this graphic you can use the appropriate functions to
reactivate all the tracks for this location. 3
Machine error (Emergency stop) 3
3
3
Components missing at location 3
3
3
3
3
Feeder location full 3
3
3
Conveyor set to "Transport through" 3
NOTE
This means that the "Process PCB" function is deactivated in the machine options.
The PCBs are passed through the entire transport process without being processed. 3
3
3 Graphical user interface SIPLACE Software Guide SR.504.xx
3.2 Components of the user interface Issue 01/03 EN
22
3
(green) starts the context-sensitive help system for the current view 3
3
(red) starts the help system that offers possible causes for the current error
and suggests ways to eliminate the error. 3
3
Once the error has been eliminated successfully, the current error is deleted. 3
3
The machine options have been changed. 3
3
The software options have been changed. 3
3
Barcode-supported component refill operation. 3
3
PCB barcode is activated. 3
3
The connection to the programming system has been interrupted. It is not possible to
receive data. 3
3
Automatic compressed air is activated. 3
3
Automatic compressed air is deactivated. 3
3
Status display for the component level indicator (option). 3
3
Status display for the Traceability (Option)
Please refer to the Traceability Manual and the online Help system for a detailed descrip-
tion. 3
3
