SIPLACE S oftware Guide SR.504.xx 3 Graphical user interface Issue 01/03 E N 3.3 User interface - views and menus 29 Matrix tra y changer 3 In order to mov e to the v iew for the Matr ix tray c hanger yo u mu st cl ick t…

3 Graphical user interface SIPLACE Software Guide SR.504.xx

3.3 User interface - views and menus Issue 01/03 EN

3.3.2.2 "View" menu"

The "View" menu contains the options for calling the placement functions, single functions and vi-

sion functions. It is also used to start the SITEST test program and call the view for running the

GEM functions. 3

Å Click the required menu option.

The screen display is switched to the corresponding view. From there you can carry out the

required functions.

NOTE

All the options in this menu can also be called by clicking the corresponding toolbar button (see

section 3.2.2) or by pressing the corresponding function key. If shortcuts have been defined, these

can also be used. 3

NOTE

The 3 menu options below belong to the group of placement functions. 3

Set-up F2 3

The setup for a feeder location is displayed in tabular form. It can be called separately for each of

the max. four locations. 3

Error F3 3

Errors are differentiated by type and each error type is presented in a separate table. You can call

separate tables for track errors, conveyor errors, machine errors, general errors and chained error

messages.

The last error to have occurred is always displayed at the top of the table. Identical errors are cu-

mulated in the error counter ("#E" column). 3

Feeders F4 3

Here you can use a variety of functions to display and fill empty tracks for vibratory stick feeders

or to display and modify inventory levels for trays or to move the MTC (Matrix Tray Changer) into

transport position. 3

SIPLACE Software Guide SR.504.xx 3 Graphical user interface

Issue 01/03 EN 3.3 User interface - views and menus

Matrix tray changer 3

In order to move to the view for the Matrix tray changer you must click the 3

button (for the appopriate location). Or, from the "View" menu, select the "Feeder" function, and

then in this view, click the button for the matrix tray changer. 3

The following window opens: 3

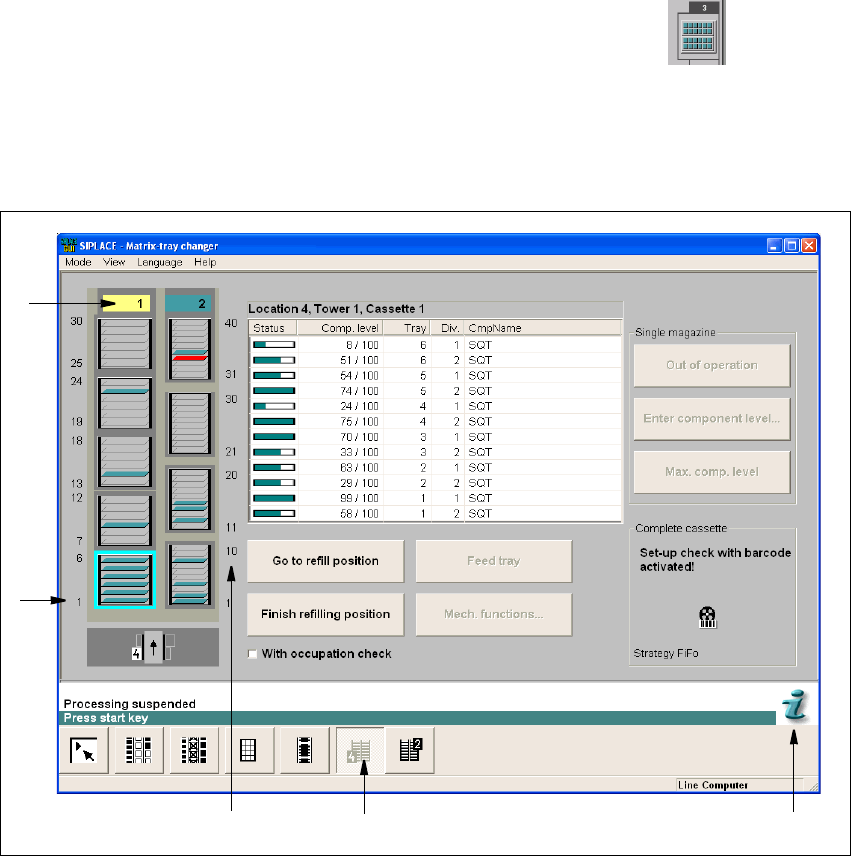

Fig. 3.3 - 3 "Matrix tray changer" view (HF)

Key to Fig. 3.3 - 3

(1) Cassette number

(2) Tower number

(3) Level number

(4) Selects the "MTC" view.

(5) Help system for the topic "MTC"

You will find a detailed description of the MTC in the Station Operating Manual. Please refer to the

online Help for parameter descriptions. 3

3 Graphical user interface SIPLACE Software Guide SR.504.xx

3.3 User interface - views and menus Issue 01/03 EN

NOTE

The following 6 menu options belong to the group of single functions.

The single functions are used to execute specific actions following fatal errors as well as to set up

and test the machine since they allow you to address the various functional modules in a defined

manner. 3

Gantry 1 F5 3

This is used to call the single functions for gantry 1. These can be used to, for example, test the

functions of the revolver head. 3

NOTE

Each of the max. 2 gantries can be addressed separately.

The functions are identical for all the gantries. 3

Gantry 2 F6 3

Single functions for gantry 2 3

Conveyor 2 F7 3

Single functions for PCB conveyor 2 (= left conveyor track in the case of dual conveyors) 3

NOTE

The single functions for Conveyor 2 can only be called if a dual conveyor has been configured.

The functions are identical to the functions for Conveyor 1. 3
