3 Graphical user interface SIPLACE Software Guide SR.504.xx
3.3 User interface - views and menus Issue 01/03 EN
38
3

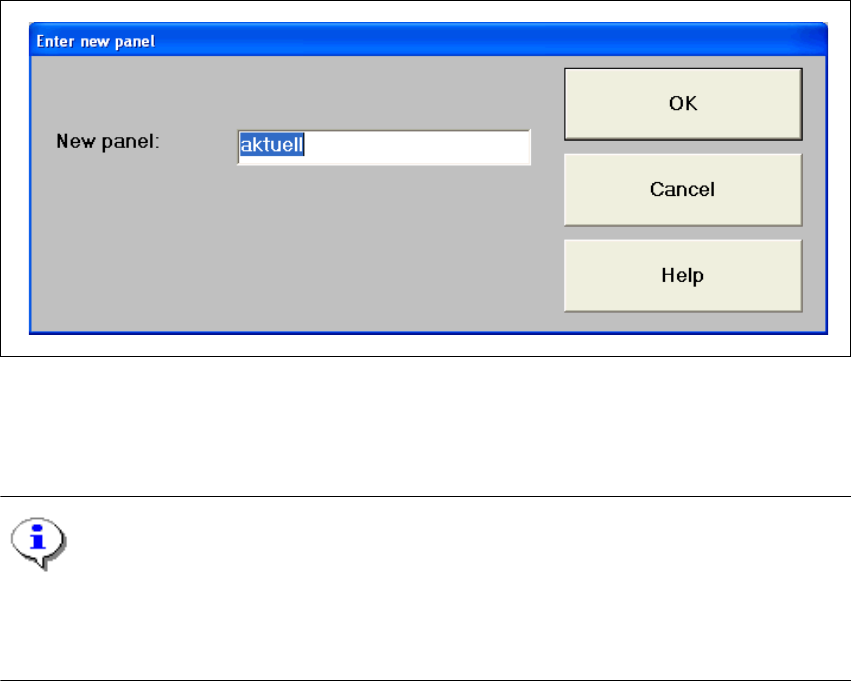

Fig. 3.3 - 10 "Enter new panel" dialog box for single conveyor
Å Now enter the name of the required panel in the displayed text box and click OK to confirm.
The panel data is now loaded.
NOTE
The data, including the fiducial and component package form data, of the last panel successfully
specified by SIPLACE Pro, is now saved on the station computer’s hard disk under the panel
name "AKTUELL" and can be loaded by entering this name. 3
SIPLACE Software Guide SR.504.xx 3 Graphical user interface
Issue 01/03 EN 3.3 User interface - views and menus
39
Å When using a dual conveyor, the following dialog appears:
3
Fig. 3.3 - 11 "Enter new panel" dialog box for dual conveyor
Å Now enter the name of the required panel in the displayed text box and click OK to confirm.
The panel data is now loaded.
NOTE
The data, including the fiducial and component package form data, of the last panel successfully
specified by SIPLACE Pro, is now saved on the station computer’s hard disk under the panel
name "AKTUELL" and can be loaded by entering this name. 3
Software options 3
This menu item is used to activate the test commands (test functions) for checking a variety of
machine components. 3
NOTE
This menu item can only be called from the "Service" access level. 3
WARNING
Settings for test commands and test command execution should be performed by service engi-
neers only. 3
3 Graphical user interface SIPLACE Software Guide SR.504.xx
3.3 User interface - views and menus Issue 01/03 EN
40
Å Click the Software options menu item.
The following window is opened.
3
Fig. 3.3 - 12 "Software options" dialog box (Example HF)
Å Select the tab corresponding to the required machine component and activate/deactivate the
test commands by clicking the corresponding checkboxes.
Å Click Accept to set the software options. The changes take effect with the next printed circuit
board.
NOTE
When the station is rebooted, the software options are reset to their original settings. 3
