SIPLACE Software Guide SR.504.xx 4 Switching the SIPLACE line on and off

Issue 01/03 EN 4.1 Switching on the SIPLACE line

4.1.3 Switching on the station / Starting the user interface of the station computer

program

CAUTION

Only switch on the station after on the SIPLACE Pro computer Line Control GUI was started and

a job was downloaded.

Now the reference run can be started. Otherwise, the station is "Waiting for a connection with

SIPLACE Pro”. 4

Å Switch on the station at the main switch and check to see if the manometer displays the re-

quired operating pressure after you have switched the station on.

The station computer software is loaded. If a SIPLACE Pro computer is connected and com-

munication is error-free, the Main view of the station computer user interface for the "Operator“

access level appears (see Fig. 4.1 - 2).

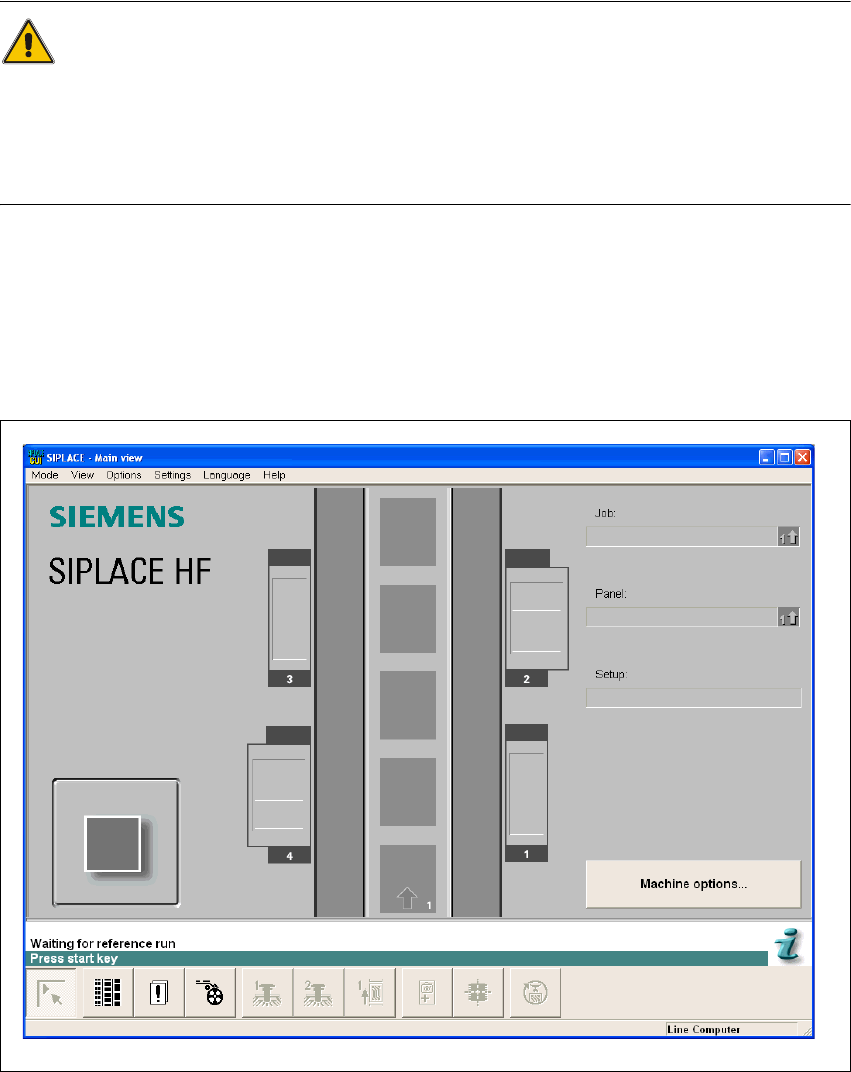

Fig. 4.1 - 2 Main view after loading the station computer software

4 Switching the SIPLACE line on and off SIPLACE Software Guide SR.504.xx

4.1 Switching on the SIPLACE line Issue 01/03 EN

NOTE

The current state of the station is displayed in the status field in the "Status“ line, and the action

you are to execute is displayed in the "Action:“ line (see Fig. 4.1 - 2). 4

Å When the "Press start button“ prompt appears, press one of the start buttons.

(The start buttons are located on the input side, output side and on the control panels on the

left and right sides of the station - HS-50 only.)

A reference run is executed on all axes. The station is ready for operation after the reference

run has been completed.

The symbol is displayed in the work area of the user interface.

4.1.4 "Switching on the SIPLACE line" flow chart

The following flow chart shows the actions executed while the SIPLACE line is being switched on

and started up. 4

SIPLACE Software Guide SR.504.xx 4 Switching the SIPLACE line on and off

Issue 01/03 EN 4.1 Switching on the SIPLACE line

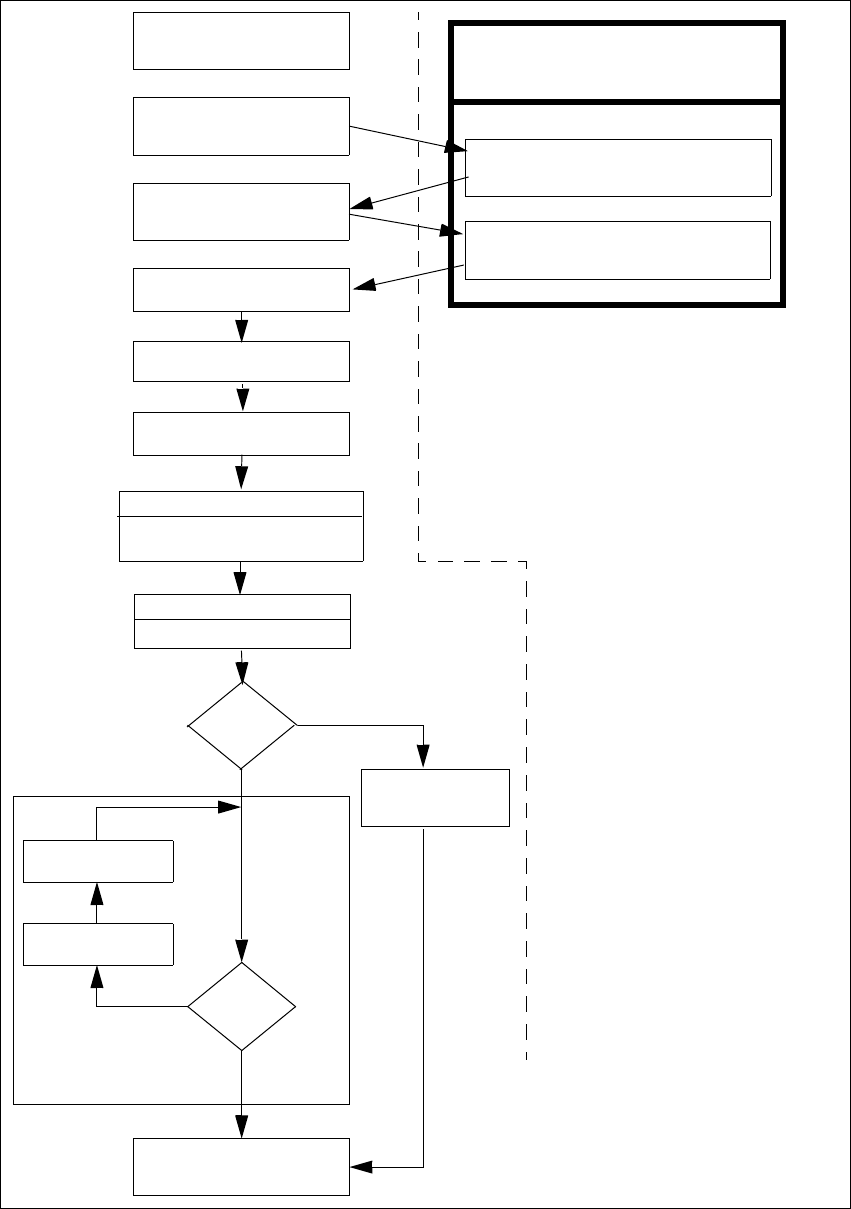

Fig. 4.1 - 3 "Switching on the SIPLACE line" flow chart

Nozzle check

If necessary, change

nozzle configuration

Test set-up

Set tracks to full

Tasks of the programming system

computer

Load panel data

Fiducials

OK?

Make settings on the machine

Download-Assistent

Check the set-up

(attach feeder modules)

Switch on

Wait for reference run

Track errors

Yes

Abort

placement

PCB to output conv.

Yes

Station computer

Bold type:

Italic type:

To be carried out by the

operator

Carried out or signaled

by the station

Confirm change over in the

download wizard

Wait for PCB

Introduce PCB

Press the Start button
