6 Online Help system SIPLACE Software Guide SR.504.xx
6.1 General Issue 01/03 EN
62
6.1.1.1 Displaying the contents of the Help system
Å In the Help menu, click the Content item or press the key combination Ctrl + F1.
The main window of the station computer Help system is opened (see Fig. 6.1 - 2).
All the topic areas present in this Help system are listed in the window’s display area.
6

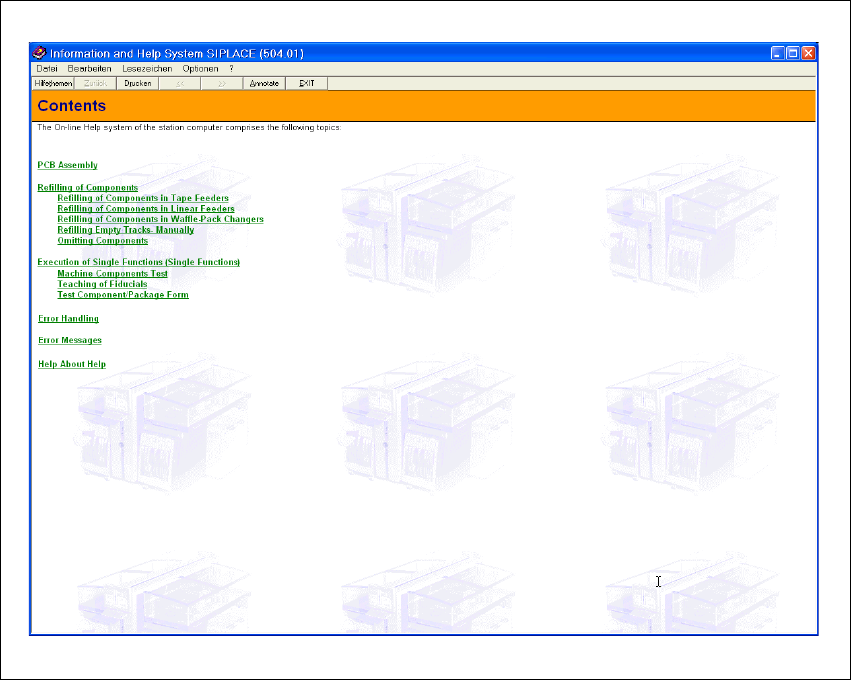

Fig. 6.1 - 2 Contents of the Help system
6
All topic area or topic entries are displayed in green and are underlined. When you click one
of these entries, the display area switches to the help information for the corresponding topic
or topic area (see Fig. 6.1 - 3). 6
SIPLACE Software Guide SR.504.xx 6 Online Help system
Issue 01/03 EN 6.1 General
63
6.1.1.2 Displaying help for a particular topic area
Å In the Help system’s "Contents" screen (see Fig. 6.1 - 2), click the entry for the required topic
area (e.g. "Help About Help").
Help information on the selected topic area is now presented in the display area (see example in
Fig. 6.1 - 3).
6
Fig. 6.1 - 3 Example: Topic area "Help About Help"
6
6
6
6
6 Online Help system SIPLACE Software Guide SR.504.xx
6.1 General Issue 01/03 EN
64
6.1.1.3 Displaying help on the current view
Å In the Help menu, click the Help menu item or click the button to call the Help system, or
use the key combination Alt + F1. The main Help system window is opened.
The display area now displays help information on the functions of the view which is currently
active in the station computer user interface (see example in Fig. 6.1 - 4).
6
Fig. 6.1 - 4 Example: Help on the current view "Empty Tracks"
6
Any entry which is linked to supplementary help information is displayed in green and under-
lined. When you click one of these entries, the display area switches to the help information for
the corresponding topic. 6
6
6
