Samsung Component Placer CP45FV Series Maintenance Refer ence 1.3.2. Other T ools Provided Spanner (7mm) T wrench Lubricant for nozzle (Nozzle Spring) Spray for removing foreign matter fro m nozzle Driver Monkey spanner …
Preventive Maintenance
1-5

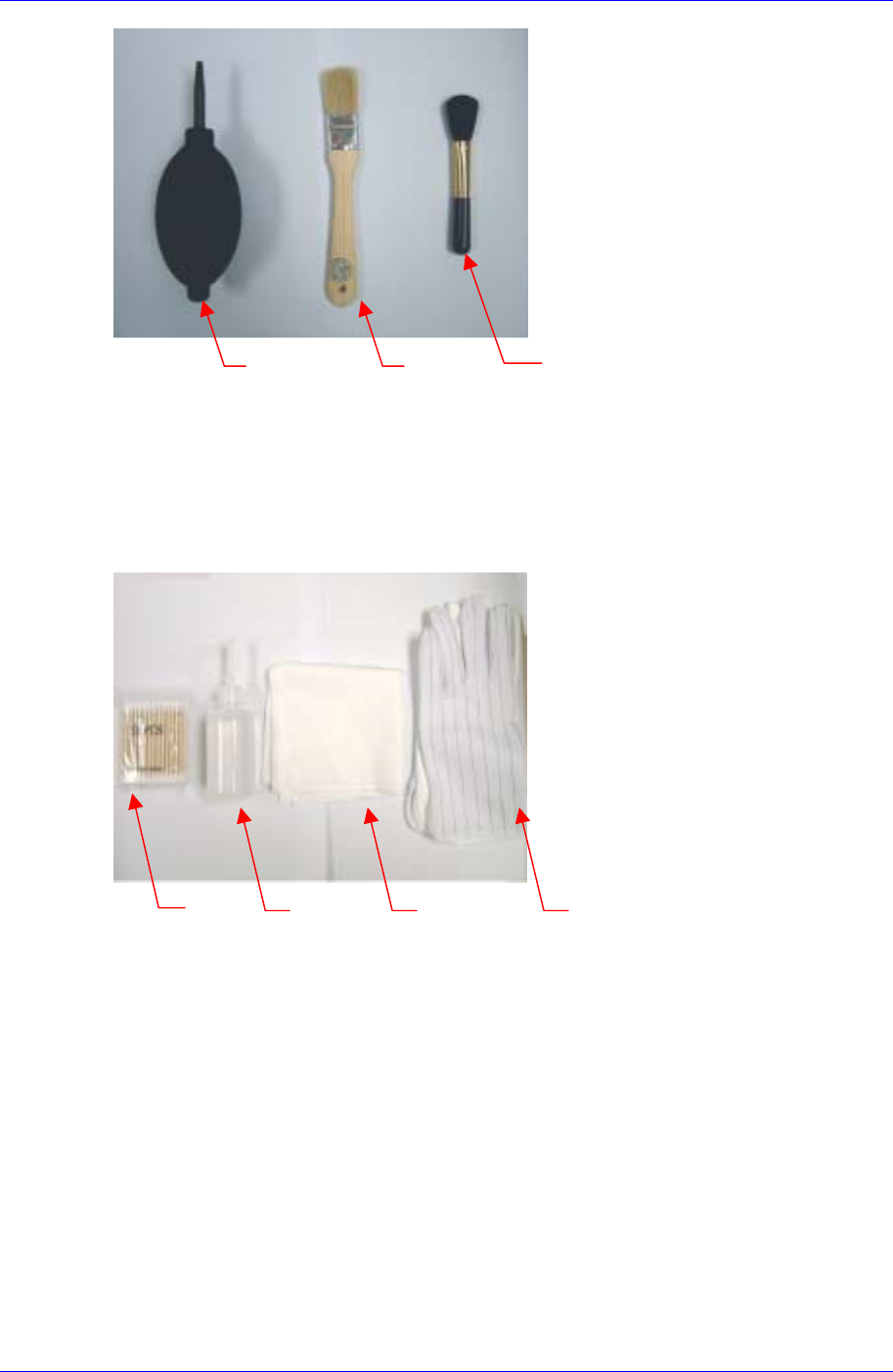

Air Ejector Brush
Small Brush
Air Ejector
Used to blow away any dirt on the surface of the camera lens.
Brush
Used to remove any chips or foreign matter on the feeder base surface.
Small Brush
Used to remove dust on the mirror surface.
Swab
Alcohol Clean Cloth Embossed glove
Swab / alcohol
Used to clean the fly camera lens surface.
Clean Cloth
Used to clean any foreign matter on the mirror or lens.
Embossed glove
Used to clean the camera or mirror.
Samsung Component Placer CP45FV Series Maintenance Reference

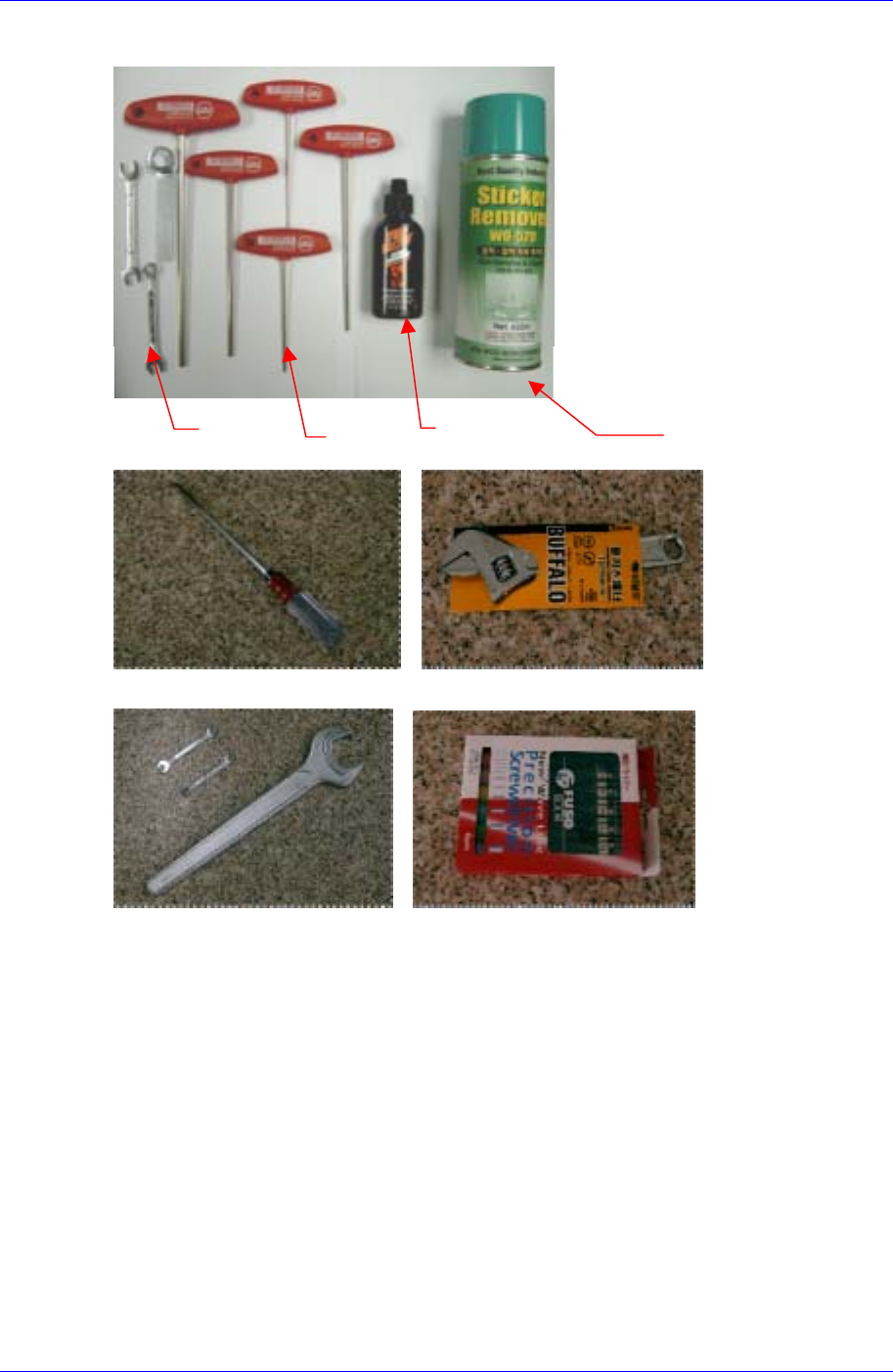

1.3.2. Other Tools Provided
Spanner
(7mm)
T wrench
Lubricant for nozzle
(Nozzle Spring)
Spray for removing
foreign matter fro
m
nozzle
Driver Monkey spanner
Spanner (46mm) Precision screw driver set
7mm Spanner: Material number J1700011
T: Material number J9099034A
Lubricant for nozzle: Material number J8001073A
Spray: Material number J8001072A
Driver: Material number J8001065A
Monkey spanner: Material number J8001066A
46mm Spanner: Material number J1700028
Precision screw driver set: Material number J1700015
1-6
Daily Inspection
Chapter 2. Daily Inspection
2-1

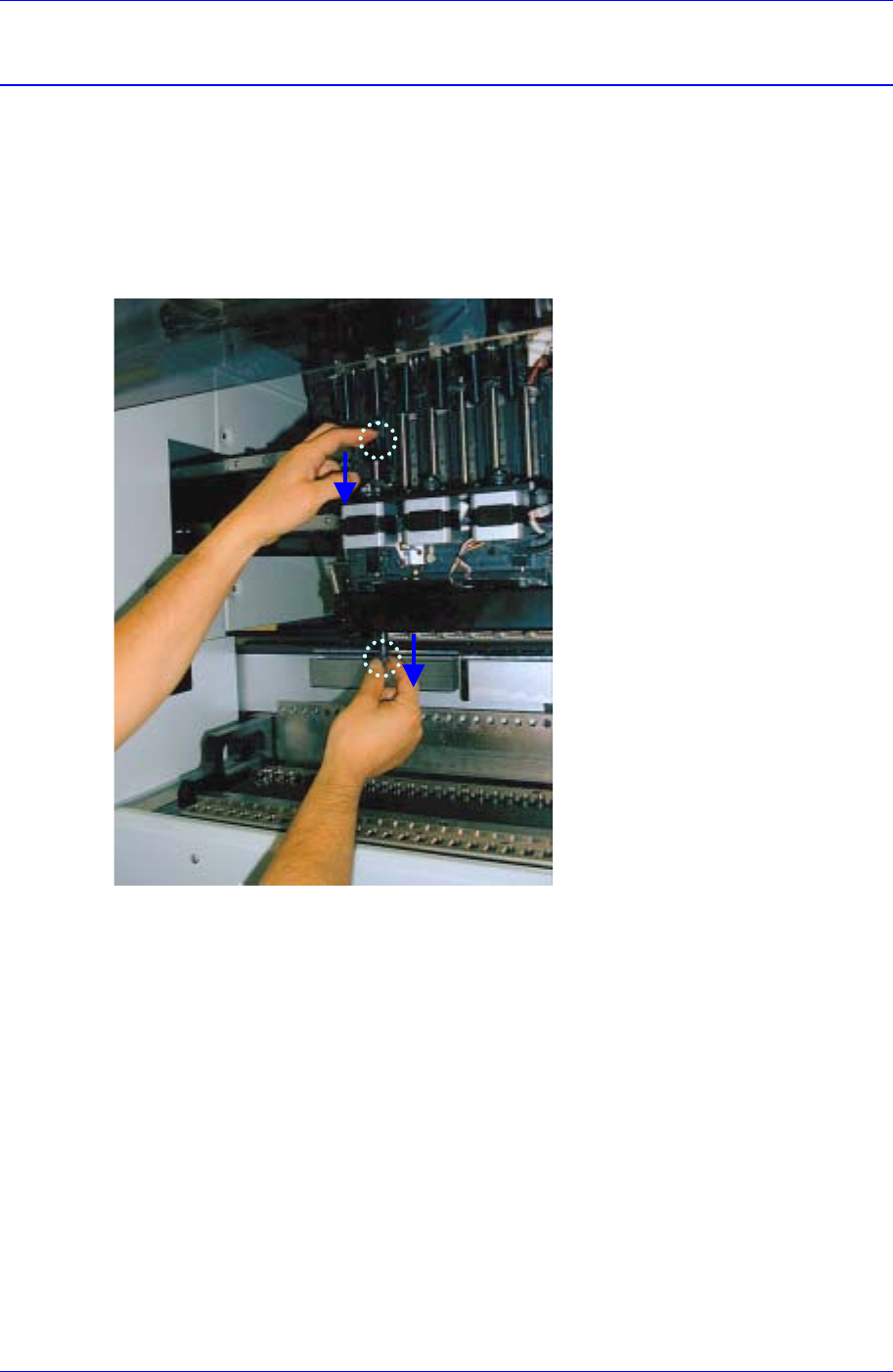

2.1. Nozzle
Inspection
Check the nozzle to see if an excessive wear occurs or if the tip of the nozzle has been
altered due to impact. In addition, check to see if any contamination, such as solder paste
is clogging the nozzle.
Solution
Clean the nozzle with cleaning liquid in case of contamination, or replace the nozzle if an
excessive wear was detect.
How to remove contaminant on the nozzle
Removing contaminant on the nozzle hole
Spray the recommended cleaning liquid on the nozzle hole by using a spray straw
After 1 minute, blow out the cleaning liquid from the tip of the nozzle by using
air pressure.
Blow out all the cleaning liquid from the nozzle hole.
If the contaminant is not removed by above method, repeat it once more.
If the contaminant still remains, contact the local agent.
Removing contaminant from the wings and tip of the nozzle
