Inspection of the Contr oller 7-7
Samsung Component Placer CP45FV Series Maintenance Guide
7.2.2.2.4. Keyboard
Check to see if the keyboard is connected properly.
Check the keyboard extension line.
7.2.2.2.5. Mouse
Check to see if the mouse is connected properly.
Check the mouse extension line.
7.2.2.3. Inspection of the Machine Controller
Check the assembling status of RACK.
Check to see if the board was properly and normally assembled.
If the power is in normal, check the jumper setting.
If the batteries of the VME CPU Board are weak and need to be replaced, replace the
batteries referring to the following specification.
MVME162-220 Board
RAYOVAC FB1225H2
MVME162P-242, MVME162PA-242, MVME162PA-252SE 보드
Panasonic CR2032
7.3. Inspection of Control Board
7-6
Inspection of the Controller
7-7
Samsung Component Placer CP45FV Series Maintenance Guide

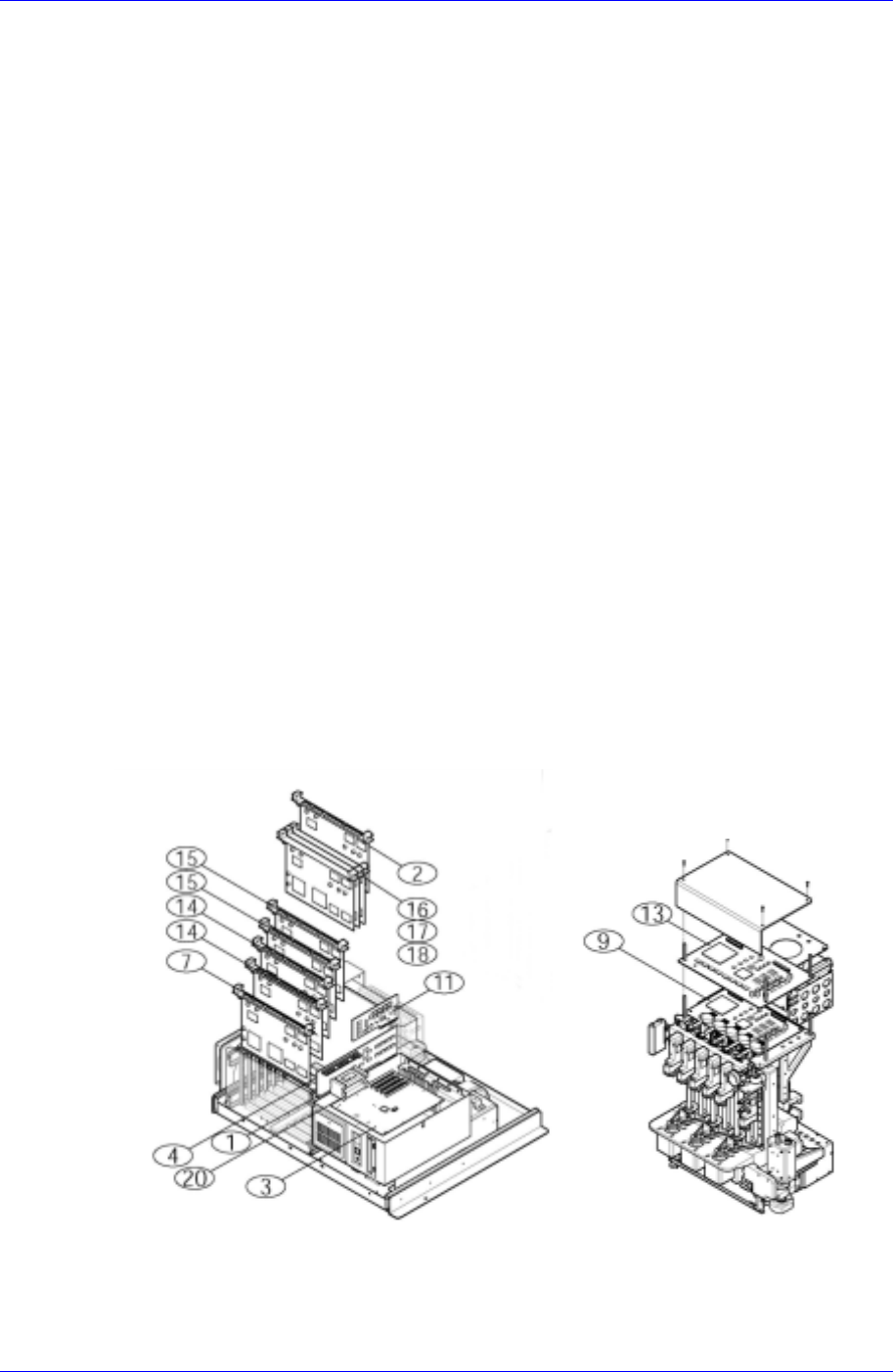

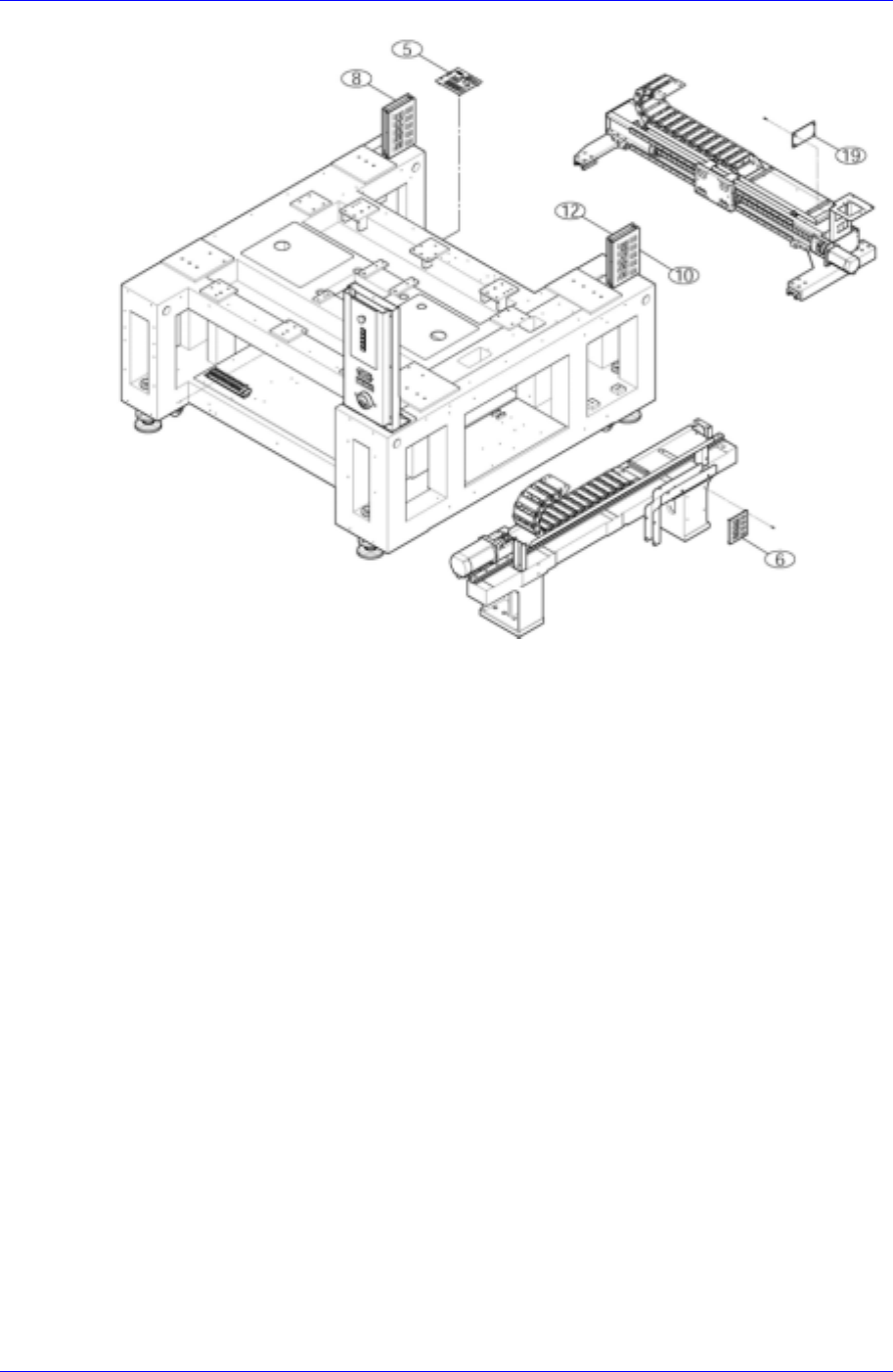

NO. PART NO. PART NAME REMARK
1
J4801015A MOTHER BOARD F815D/V FULL-SIZE SBC
2
J4809043A VME CPU BOARD MVME 162PA-252SE
3
J4809047A PCI-6S PCI/ISA BACK PLANE PCI-6S PCI/ISA BACK PLANE
4
J5001008A MODULE RAM SDRAM 128M 168PIN PC133
5
J9060014B CONVEYOR PACK BOARD ASSY 30-CONV3-IO BOARD(2)
6
J9060055A Y SUB BOARD ASS'Y CP-45 REV 1.0
7

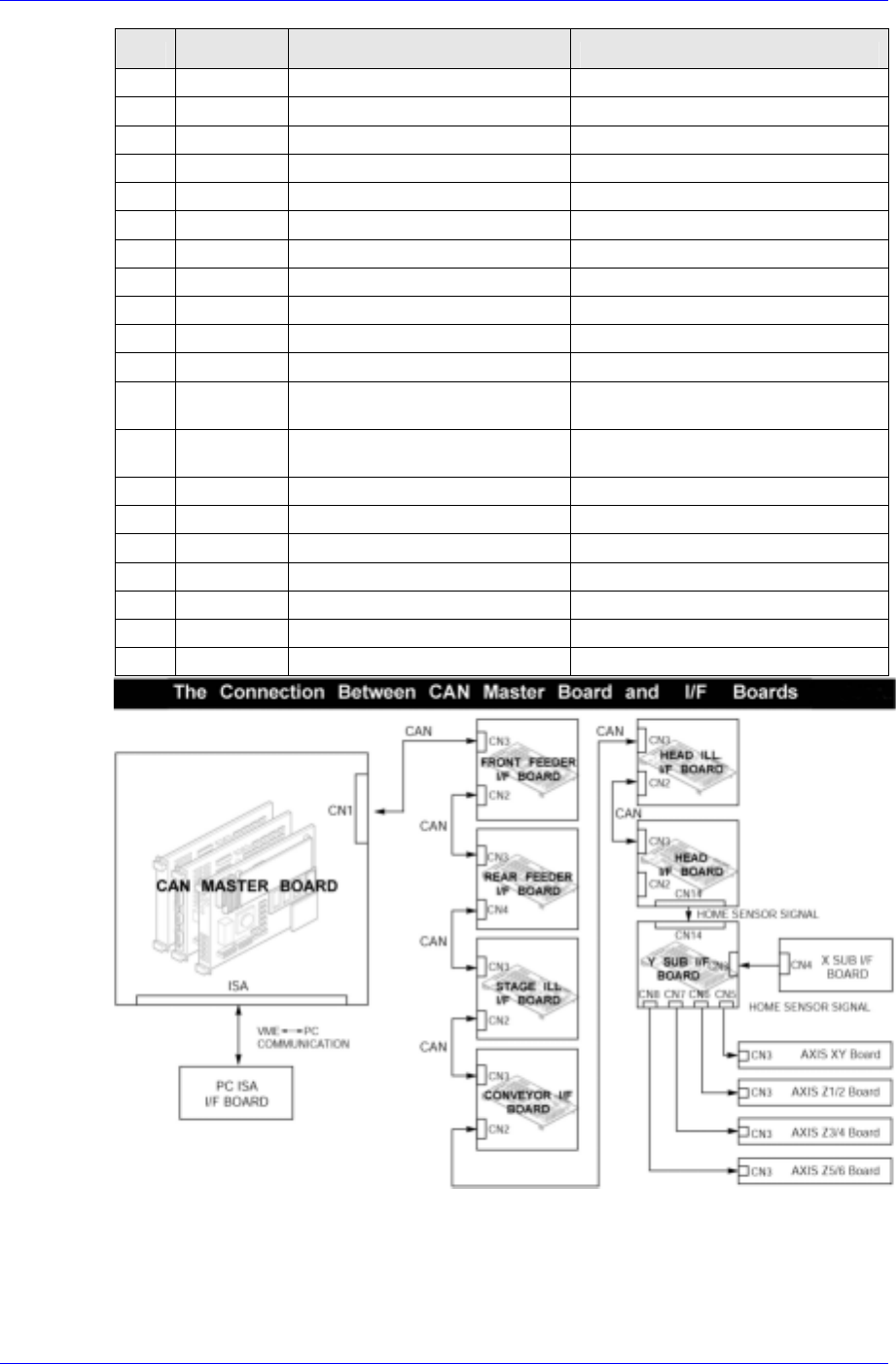

J9060059A CAN MASTER BOARD ASS'Y Refer to 7.3.1
8
J9060060C CAN FEEDER BOARD ASS'Y Refer to 7.3.4
9
J9060062B CAN HEAD BOARD ASS'Y Refer to 7.3.2
10
J9060063B CAN CONVEYOR BOARD ASS'Y Refer to 7.3.3
11
J9060132A PC ISA I/F CARD ASS'Y CP-45 REV 1.0
12
J9060139C
CAN STAGE
Illumination
BOARD ASS'Y
Refer to 7.3.5
13
J9060140E
CAN HEAD
Illumination BOARD
ASS'Y
Refer to 7.3.5
14
J9060161A VME AXIS(3) BOARD ASS'Y J9060161A
15
J9060162A VME AXIS(4) BOARD ASS'Y J9060162A
16
J9060229B MK3 AD/DA BOARD ASS'Y MK3 REV 2.1
17
J9060230A MK3 DSP BOARD ASS'Y MK3 REV 2.0
18
J9060231B MK3 MEMORY BOARD ASS'Y MK3 REV 2.1
19
J9800398 X-AXIS I/F BOARD ASS'Y C30-Z2-206-00-20 P/S
20
J4901012A CPU INTEL CELERON 1.3GHz(Including fan)
