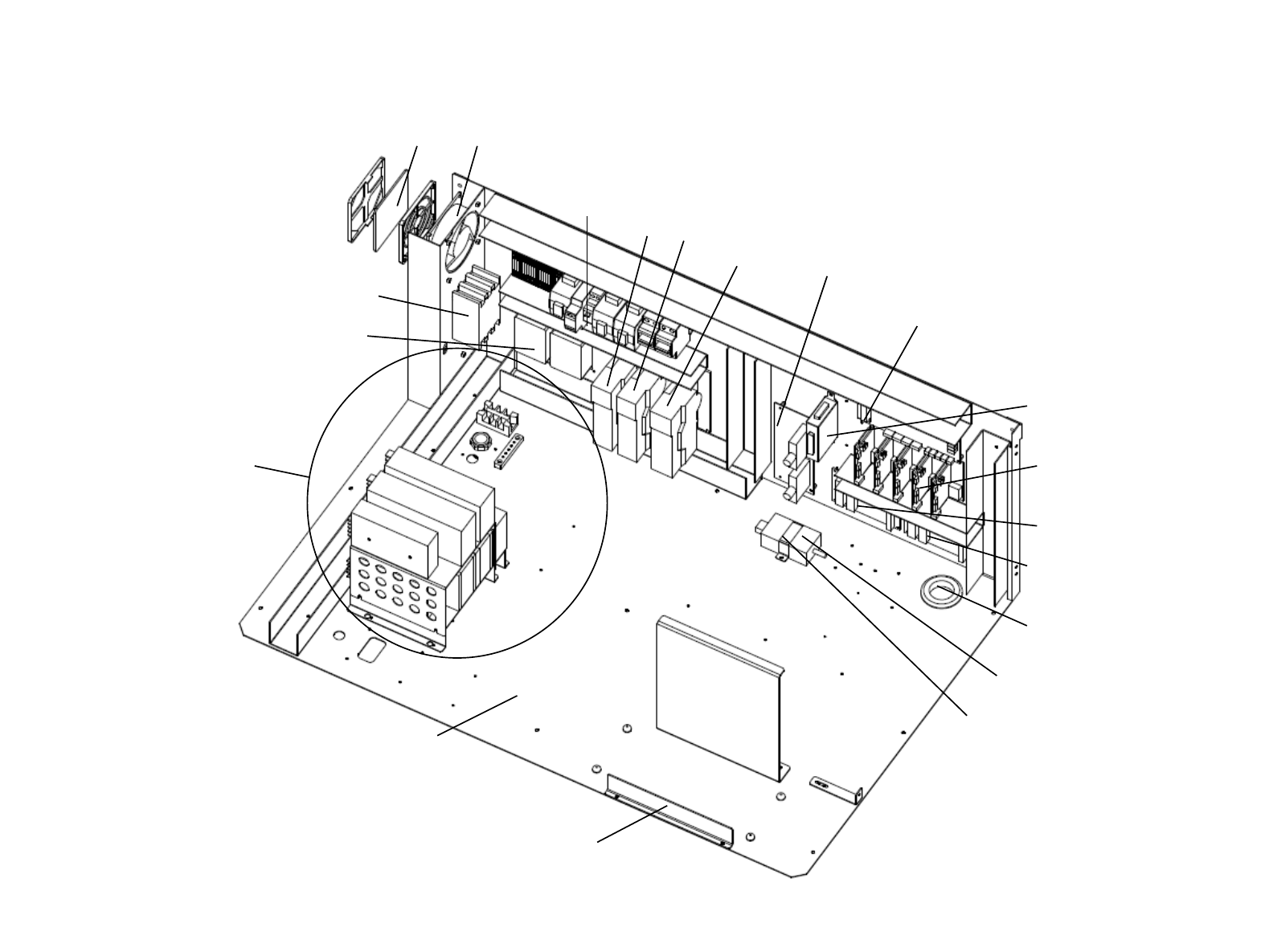

1.2.1 ELECT RIC BOX 16 NE X T P AGE 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 18 17 18 8
No. Item Code No. Specification Description Type Q’TY Remark
1 V080-L12001 ELECTRIC BOX Assembly 1 1.2.1
2 V080-122006-B VISION PC FIX BRKT Part 1
3 V080-122007-A FRONT DOOR BKT Part 1
4 604025-000019 AW-T5400(Quad-core E5410) Vision GUI PC Set Part 1
5 V085-120001 ELECTRIC DOOR Assembly 1 1.2.2
6 V080-MAIN AIR MAIN AIR Assembly 1 1.2.3
1.2 ELECTRIC
15
1.2.1 ELECTRIC BOX
16
NEXT PAGE
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
18
17
18
8
No. Item Code No. Specification Description Type Q’TY Remark
1 551918-000005 SG53C(EB3BSC-015B) MCCB Part 1
2 551711-000001 MBS-1220-22 NOISE FILTER Part 1 NF1
3 V085-120001-A POWER BOX Part 1
4 V080-122005-B CAMERA PWR BRKT Part 1
5 552611-000001 DP1201 CAMERA ADPTOR (POWER SUPPLY) Part 1
6 559090-000001 C-30-BW-45-3 HOLDER Part 1
7 501012-000006 I/O I/F OUTPUT BOARD(V3.0) I/O I/F OUTPUT BOARD(V3.0) Part 1
8 501012-000005 I/O I/F INPUT BOARD(V3.0) I/O I/F INPUT BOARD(V3.0) Part 1
8 555017-000004 MDU2U3PDA STEP MOTOR DRIVER Part 5 IR,WW
9 501012-000008 MCU-EL MCU-EL(EMOTION I/O MODULE) Part 1
10 501012-000007 KY8030 I/O I/F BOARD(V1.0) KY8030 I/O I/F BOARD (V1.0) Part 1
11 501013-000019 MCB-JB V6.0 R JUNCTION INTERFACE BOARD Part 1
12 555016-000015 RS1L03AA(750W) SERVO DRIVER Part 1 SERVO Y
13 555016-000012 RS1A01AA(200W) SERVO DRIVER Part 2 SERVO X
14 555016-000012 RS1A01AA(50W) SERVO DRIVER Part 1 SERVO Z
15 V080-L12003 8030 LARGE MC CP TB Assembly 1 1.2.1.1.
16 552511-000002 DP201A2123 HBT-120X120X38 FAN Part 1 FAN1
17 552590-000001 FILTER 120X120 FAN FILTER Part 1
18 V085-122001-A COMPUTER SUPPORT Part 1
1.2.1 ELECTRIC BOX
17
