11 7. Vision Head Section 7-1. Vision Head 18 6 12 17 3 4 13 2 7 1 8 10 15 19 5 12 1 1 16 14 20 20 9 18 6 12 17 3 4 13 2 7 1 8 10 15 19 5 12 1 1 16 14 20 20 9 No. Part No. Part Name Q'ty Remarks Date of change Revis…
10
6. Laser Head Section (Option)
6-1. Laser Head (Option)
5
7
2
6
1
4
3
5
7
2
6
1
4
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
LE1-M5202-020 PLATE,LASER
1
2 LE1-M50H9-001 HEAD UNIT1 1
3 LE1-M50H8-00 CONTROL UNIT 1
4 LE1-M50HA-01 RB CABLE 5 1
5 91314-04015 BOLT HEX.SOCKET HEAD 2 M4X15
6 LE1-M524F1-100 LOW HEAD CAP SCREW 2 M5X12
7 92903-04200 WASHER PLAIN 2
11

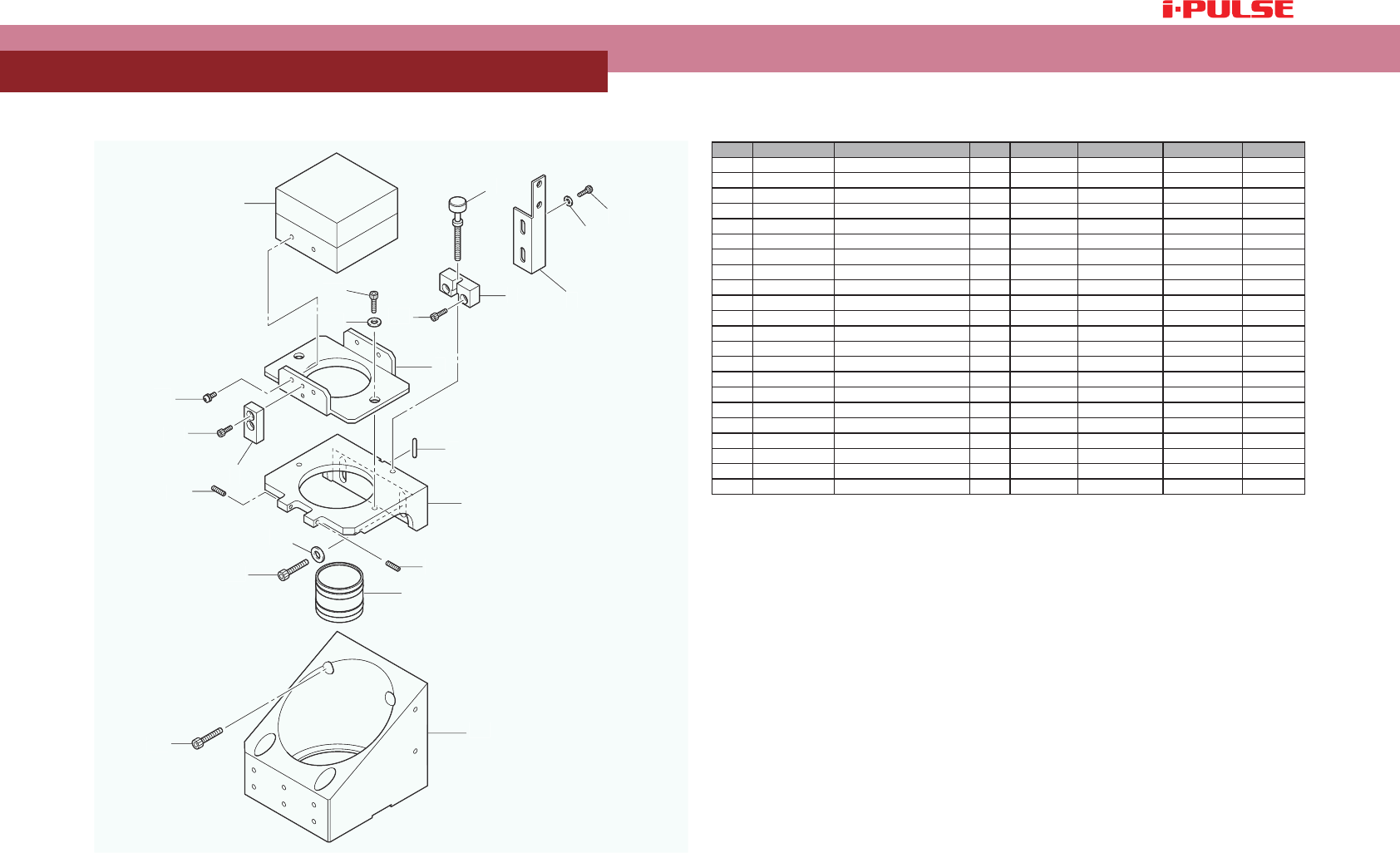

7. Vision Head Section
7-1. Vision Head
18
6
12
17
3
4
13
2
7
1
8
10
15
19
5
12
11
16
14
20
20
9
18
6
12
17
3
4
13
2
7
1
8
10
15
19
5
12
11
16
14
20
20
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M7201-02 BRACKET,CAMERA(1) 1
2 LE1-M7202-01 BRACKET,CAMERA(2) 1
3 LE1-M7203-00 BLOCK 1
4 LE1-M7204-00 BRACKET 1
5 LE1-M7205-00 BLOCK 1
6 LE1-M72A0-00 BOLT,ADJUST 1
7 LE1-M72A1-00 KEY 1
8 LE1-M72A2-000 LENS 1 30 μ m
(8) LE1-M72A3-000 LENS (Option) 1 20 μ m
(8) LE1-M57A4-000 LENS (Option) 1 15 μ m
9 LE1-M72H0-00 COLOR CAM80U 1
10 LE1-M7301-01 BRACKET,LIGHTING 1
11 LG7-M71GY-30 BOLT HEX. SOCKET HEAD 4 M2X6
12 91317-03006 BOLT HEX. SOCKET HEAD 4 M3X6
13 91317-03008 BOLT HEX. SOCKET HEAD 2 M3X8
14 91317-04008 BOLT HEX. SOCKET HEAD 2 M4X8
15 91317-04010 BOLT HEX. SOCKET HEAD 4 M4X10
16 91317-05016 BOLT HEX. SOCKET HEAD 2 M5X16
17 92907-03200 WASHER PLAIN 2
18 92907-04200 WASHER PLAIN 2
19 92907-05200 WASHER PLAIN 2
20 92A08-03308 SET SCREW 2 M3X8
12
8. Lighting Unit Section
8-1. Lighting Unit
1
7
2
8
3
9
4
5
6
1
7
2
8
3
9
4
5
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M7301-01 BRACKET,LIGHTING 1
2 LE2-M7302-00 RING,PCB 1
3 LE2-M7303-01 RING,PCB 1
4 LE2-M7304-01 COVER,LIGHT 1
5 LE2-M7305-00 PLATE,CABLE 1
6 LE2-M7350-00 GROMMET 2
7 LE1-M73H1-00 BOARD,KIR REV.A 1
8 LE1-M73H2-00 BOARD,KDL 1
9 LE2-M73H1-00 BOARD,KSL REV.A 1
