13 9. PCB Holder Section 9-1. PCB Holder 5 7 24 16 6 14 9 4 26 26 17 17 3 4 13 13 22 15 15 25 20 23 12 8 21 26 10 27 26 17 2 1 23 17 19 1 1 21 28 22 18 14 9 5 7 24 16 6 14 9 4 26 26 17 17 3 4 13 13 22 15 15 25 20 23 12 8…
12

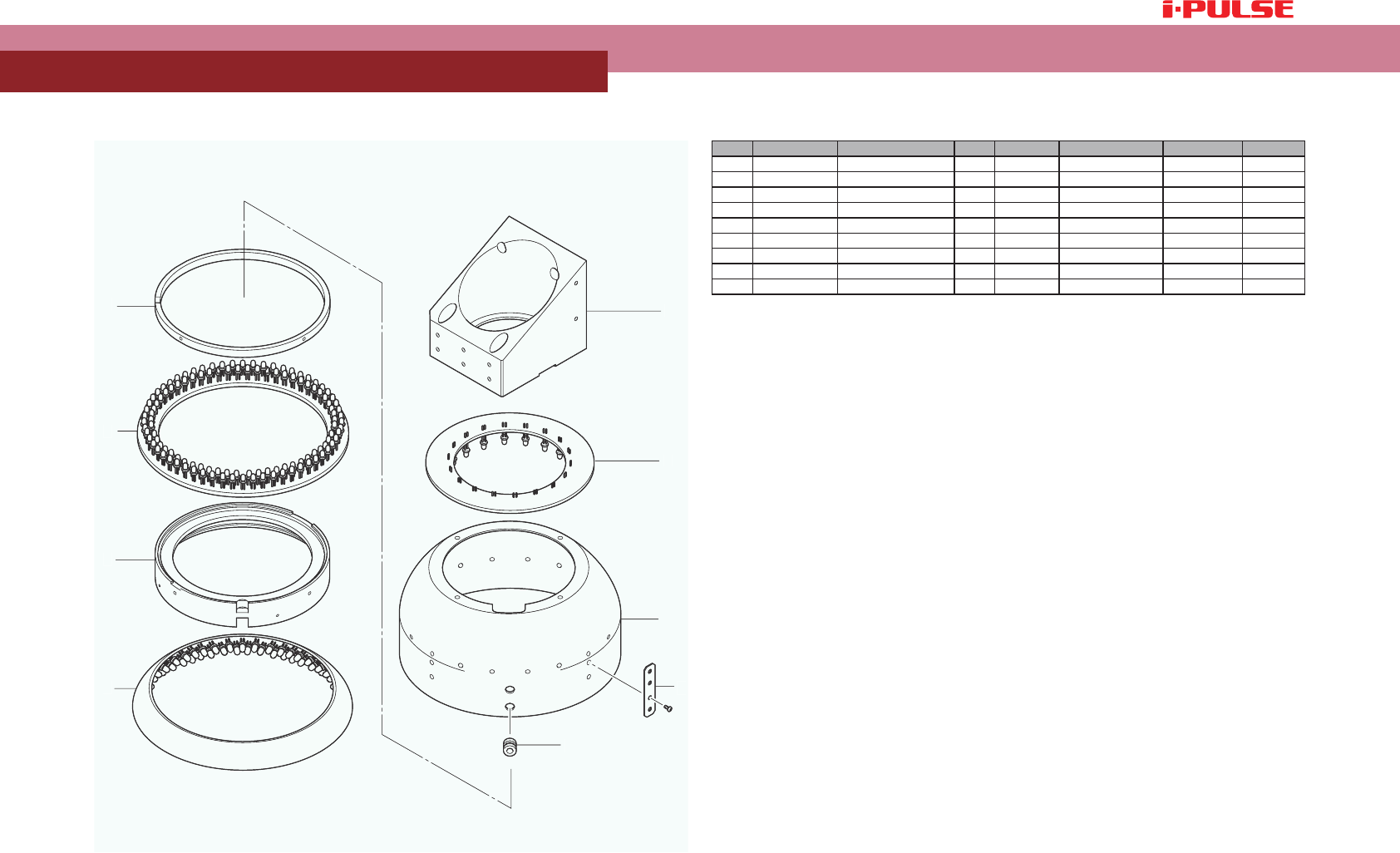

8. Lighting Unit Section
8-1. Lighting Unit
1
7
2
8
3
9
4
5
6
1
7
2
8
3
9
4
5
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M7301-01 BRACKET,LIGHTING 1
2 LE2-M7302-00 RING,PCB 1
3 LE2-M7303-01 RING,PCB 1
4 LE2-M7304-01 COVER,LIGHT 1
5 LE2-M7305-00 PLATE,CABLE 1
6 LE2-M7350-00 GROMMET 2
7 LE1-M73H1-00 BOARD,KIR REV.A 1
8 LE1-M73H2-00 BOARD,KDL 1
9 LE2-M73H1-00 BOARD,KSL REV.A 1
13

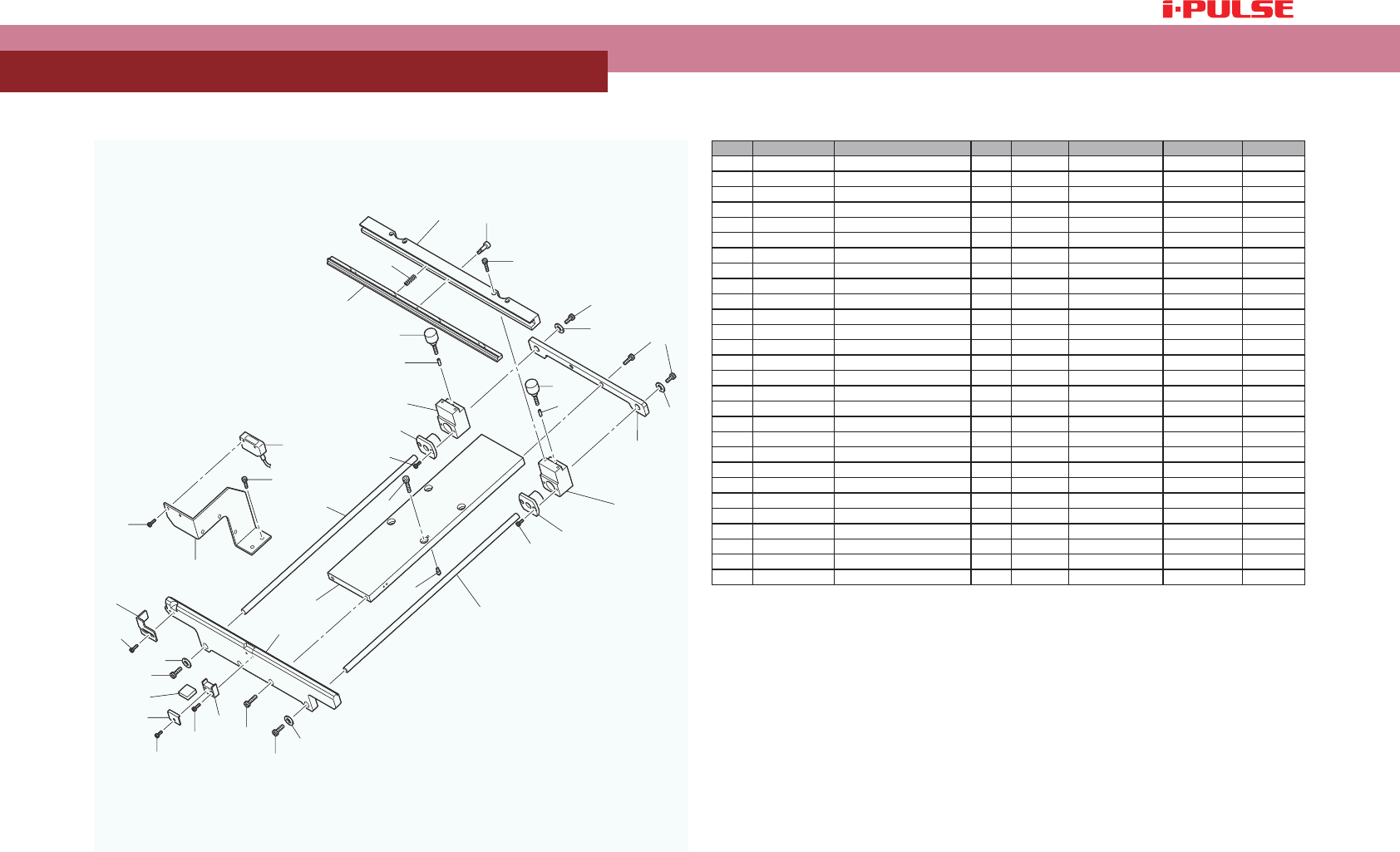

9. PCB Holder Section
9-1. PCB Holder
5
7
24
16
6
14
9
4
26
26
17
17
3
4
13
13
22
15
15
25
20
23
12
8
21
26
10
27
26
17
2
1
23
17
19
11
21
28
22
18
14
9
5
7
24
16
6
14
9
4
26
26
17
17
3
4
13
13
22
15
15
25
20
23
12
8
21
26
10
27
26
17
2
1
23
17
19
11
21
28
28
28
28
22
18
14
9
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M9001-01 PLATE,BASE 1
2 LE1-M9002-01 PLATE,FRONT 1
3 LE1-M9003-00 PLATE,REAR 1
4 LE1-M9004-00 PLATE,MOVEMENT 2
5 LE1-M9005-01 HOLDER 1
6 LE1-M9006-01 CLAMPER 1
7 LE1-M9007-00 PIN,GUIDE 3
8 LE1-M9009-01 STOPPER,PCB 1
9 LE1-M900A-00 PIECE,SET 2
10 LE1-M900B-00 STAY,FRONT 1
11 LE1-M900C-00 COVER 1
12 LE1-M900D-01 BRACKET,SENSOR 2
13 LE1-M90A1-00 BUSHING 2
14 LE1-M90A2-00 KNOB 2
15 LE1-M90A3-10 SHAFT 4
16 LE1-M90A4-00 SPRING 4
17 LE1-M90A5-00 WASHER 4
18 LE1-M22A1-00 PIN 1
19 KGT-M8806-00 LIGHT ADJUSTER S 1
20 LC6-M90H1-00 PHOTO SENSOR 1
21 91317-03006 BOLT HEX. SOCKET HEAD 3 M3X6
22 91317-03008 BOLT HEX. SOCKET HEAD 4 M3X8
23 91317-03012 BOLT HEX. SOCKET HEAD 4 M3X12
24 91317-03014 BOLT HEX. SOCKET HEAD 4 M3X14
25 91317-04006 BOLT HEX. SOCKET HEAD 6 M4X6
26 91317-04010 BOLT HEX. SOCKET HEAD 2 M4X10
27 91317-04016 BOLT HEX. SOCKET HEAD 4 M4X16
28 91317-05012 BOLT HEX. SOCKET HEAD 2 M5X12
14

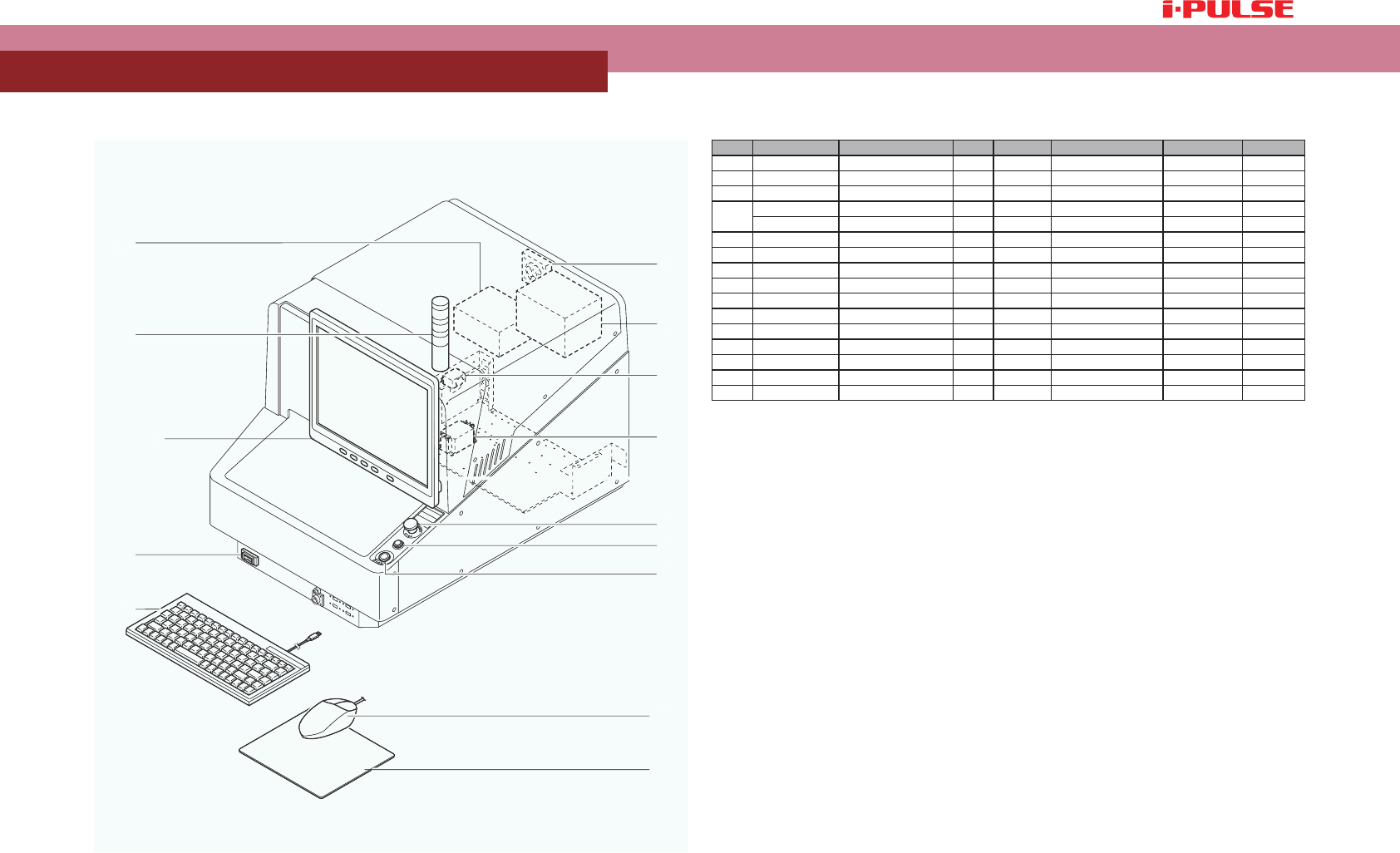

10. Exterior, etc Section
10-1. Exterior,etc
9
8
3
15
4
7
6
5
10
14
13
11,12
2
1
9
8
3
15
4
7
6
5
10
14
13
11,12
2
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M13H-00 BUZZR 1S 1
2 LE1-M42HV-00 NOISE FILTER2 1
3 LE1-M42H1-01 SW BREAKER 1
4
LE1-M6610-10 KEY BOARD JAP 1 Japanese
LE1-M6610-20 KEY BOARD US 1 English
5 LE1-M66J2-00 HNS.P4-FAN1 1
6 LE1-M40H1-00 POWER SPLY ATX 1
7 LE1-M13HO-00 EMG AW S 1
8 LE1-M50HC-00 PUSH SW BLUE 30 1
9 LE1-M66LL-10 HNS. SW6 ASSY 1
10 LE3-M65E4-00 SERIAL ATA HDD 1
11 LE1-M5C10-00 LCD S.T.D 1
12 LE1-M5C20-00 LCD TOUCH PNL 1
13 LG0-M110P-01 PAD,MOUSE 1
14 LE3-M65F1-00 MOUSE 1
15 LE1-M66JA-00 SIGNAL TOWER ASSY 1 Option
