7 4. Marker Pen Unit Section (Option) 4-1. Marker Pen Unit (Option) 21 21 16 16 10 10 21 21 4 20 7 1 1 3 21 2 22 17 9 8 18 6 1 5 20 19 18 14 20 13 12 15 21 21 16 16 10 10 21 21 4 20 7 1 1 3 21 2 22 22 17 9 8 18 6 1 5 20 …
6
3.
Controller
Section

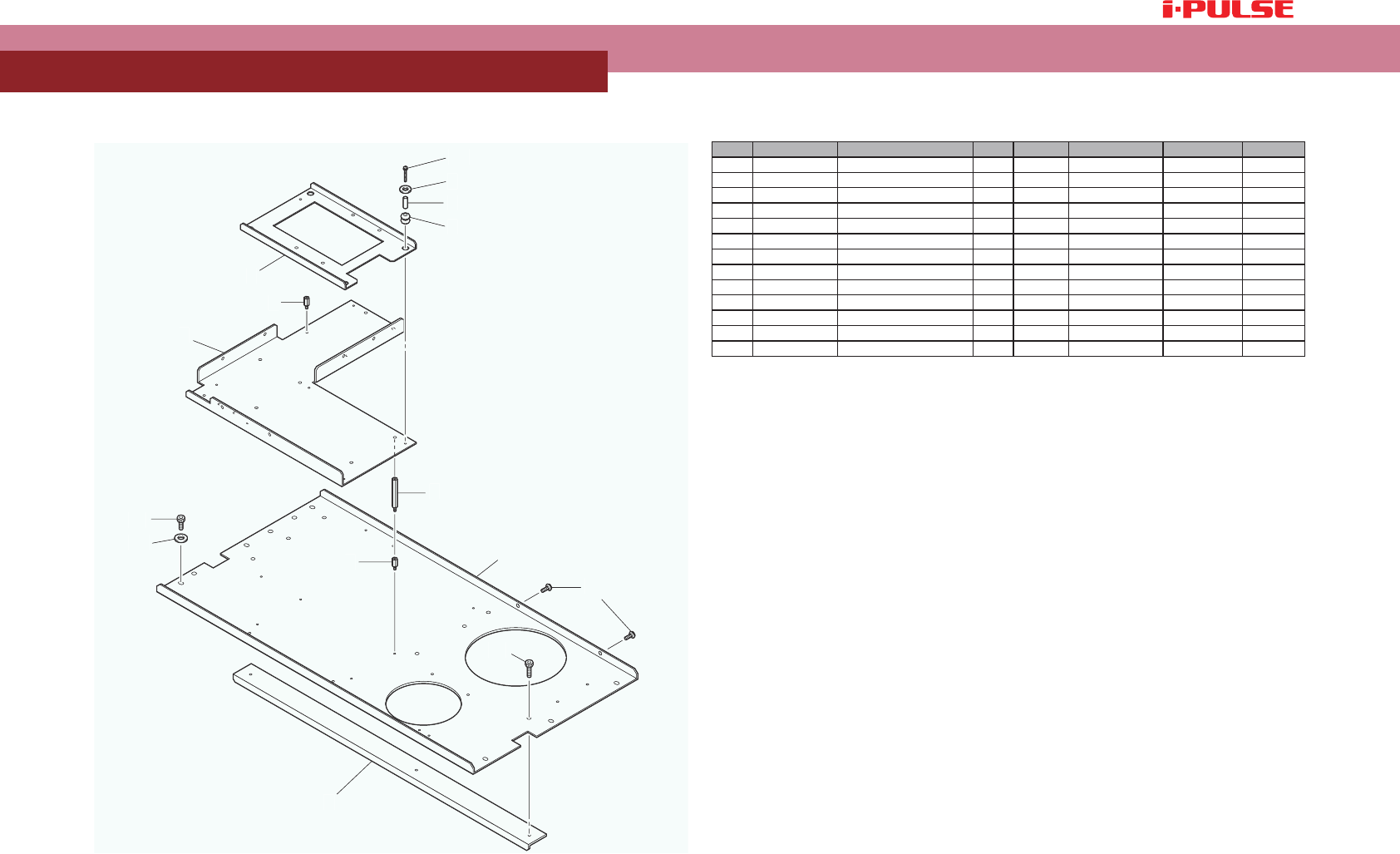

3-2. Power Control Assy -2-
10
9
7
8
3
5
2
11
12
5
6
1
11
4
13
10
9
7
8
3
5
2
11
12
5
6
1
11
4
13
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M4211-02 PLATE,CTRL 1
2 LE1-M4212-02 PLATE,CTRL(2) 1
3 LE1-M4213-00 BRKT,HDD 1
4 LE1-M4215-00 STAY 1
5 LE1-M42A2-00 SPACER 16
6 LE1-M42A3-00 SPACER 7
7 LC1-M40A2-00 SPACER,HED 4
8 LC1-M40A3-00 H.E.D. 4
9 LC1-M40F2-00 WASHER 4
10 97604-03314 SCREW, PAN HEAD W/W 4
11 91317-04006 BOLT HEX. SOCKET HEAD 9 M4X6
12 92907-04200 WASHER PLAIN 6
13 LG0-M45F1-00 SCREW, PAN HEAD (+) 2
7
4. Marker Pen Unit Section (Option)
4-1. Marker Pen Unit (Option)
21
21
16
16
10
10
21
21
4
20
7
11
3
21
2
22
17
9
8
18
6
1
5
20
19
18
14
20
13
12
15
21
21
16
16
10
10
21
21
4
20
7
11
3
21
2
22
22
17
9
8
18
6
1
5
20
19
18
14
20
13
12
15
8
4. Marker Pen Unit Section (Option)
4-1. Marker Pen Unit (Option)
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 LE1-M5101-03 BASE,GUIDE 1
2 LE1-M5102-02 HOLDER,PEN 1
3 LE1-M5103-01 STOPPER,PEN 1
4 LE1-M5104-02 HOOK 1
5 LE1-M5105-02 HOOK 1
6 LE1-M5106-01 PLATE,SENSOR 1
7 LE1-M5107-00 ADAPTER 1
8 LE1-M5111-02 PLATE 1
9 LE1-M5113-01 PLATE 1
10 LE1-M51A1-00 GUIDE 2
11 LE1-M51A2-00 KNOB 1
12
LE1-M51A3-00 PIN,HINGE
1
13 LE1-M51A4-00 SPRING 1
14 LC2-M912T-00 STOPPER 1
15 LE1-M50H7-00 LINER MOTOR 1
16 LC2-M654R-00 SENSOR. 2
17 LC7-M71G5-10 BOLT HEX.SO.LO HEAD 2
18 92D11-2F005 BOLT HEX. SOCKET HEAD 4
19 LG0-M71FP-50 WASHER PLAIN(S) 6
20 91317-03006 BOLT HEX. SOCKET HEAD 10 M3X6
21 91317-03008 BOLT HEX. SOCKET HEAD 18 M3X8
22 91317-04010 BOLT HEX. SOCKET HEAD 4 M4X10
