SEMI E102-0600 © SEMI 2000 34 27: Transfer Command to Stk.4 (carrier bbb, src St k.4/Bay_In, dest. Stk.4/Bay_o utf) (StockerSEM) 28: Transfer Command Updates from Stk. 4 (StockerS EM) 29: Transfer Command Complete (Stock…

100%1 / 7923
SEMI E102-0600 © SEMI 200033
R1-2.2 Scenario Two — Base Scenario for Delivery from Production Equipment to Stocker
MTSC reserves and manages AMHS Equipment Capacity(internal)
MTSC determines AMHS route(internal)
10: Transfer Command to Agt1(carrier bbb, src. eq.1, dest. Stk. 2/Bay_In)(IBSEM)
11: Transfer Command Updates from Agt1 (IBSEM)
14: Transfer Command Complete (IBSEM)
17: Transfer Command to Stk. 2 (carrier bbb, src. Stk. 2/Bay_In, dest. Stk. 2/Bay_out)(StockerSEM)
18: Transfer Command Updates from Stk. 2 (Stocker SEM)
19: Transfer Command Complete (StockerSEM)
20: Transfer Command to Ohs1(carrier bbb, src. Stk. 2/Bay_Out, dest. Stk. 4/Bay_In)(IBSEM)
21: Transfer Command Updates from Ohs1 (IBSEM)
24: Transfer Command Complete (IBSEM)
7: makeInTransit()
12: setMaterialTrackingLocation( MaterialTrackingLocation Agt1)
15: setMaterialTrackingLocation( MaterialTrackingLocation Stk.2)
22: setMaterialTrackingLocation( MaterialTrackingLocation Ohs1)
25: setMaterialTrackingLocation(MaterialTrackingLocation Stk.4)
2: requestJob(Jobtype Transport, Priority 1, Deadline Time1, container bbb, SourceMachine eq. 1, SourcePort 1, DestinationMachine stk7)
3: Return Job Handle TrJob1
6: informJobStateChange(Job TrJob1, previousState JobQueued, newState JobExecuting)
13: DurableLocationChangedEvent
16: DurableLocationChangedEvent
23: DurableLocationChangedEvent
26: DurableLocationChangedEvent
8: MaterialContainerStateChangedEvent
MTSC determines relay
priortiy(internal)
4: JobStateChangedEvent(..previousState JobUndefined, newState JobQueued)
5: JobStateChangedEvent(..previousState JobQueued, newState JobExecuting)
9: getUnit()
1: setUnit(unitvalue)
MTSC AMHS Equipment
Controllers
Durable
Management
Factory
Operations
Figure R1-4
Scenario Case 2
SEMI E102-0600 © SEMI 2000 34
27: Transfer Command to Stk.4 (carrier bbb, src Stk.4/Bay_In, dest. Stk.4/Bay_outf) (StockerSEM)
28: Transfer Command Updates from Stk. 4 (StockerSEM)
29: Transfer Command Complete (StockerSEM)
30: Transfer Command to Ohs2 (carrier bbb, src. Stk. 4/Bay_Out, dest. Stk. 7/Bay_In)(IBSEM)
31: Transfer Command Updates from Ohs2 (IBSEM)
34: Transfer Command Complete (IBSEM)
37: Transfer Command to Stk. 7 (carrier bbb, src. Stk. 7/Bay_in, dest. shelf) (StockerSEM)
38: Transfer Command Updates from Stk. 7 (StockerSEM)
39: Transfer Command Complete(IBSEM)
32: setMaterialTrackingLocation(MaterialTrackingLocation Ohs2)
35: setMaterialTrackingLocation(MaterialTrackingLocation Stk.7)
43: informJobStateChange(Job TrJob1, previousState JobExecuting, newState JobCompleted)
33: DurableLocationChangedEvent
36: DurableLocationChangedEvent
41: MaterialContainerStateChangedEvent
40: makeStored()
42: JobStateChangedEvent(..previousState JobExecuting, newState JobCompleted)
44: removeFinishedJob(TrJob1)
45: JobStateChangedEvent(..previousState JobCompleted, NewState JobUndefined)
MTSC AMHS Equipment
Controllers
Durable
Management
Factory
Operations
Figure R1-5
Scenario Case 2 (continued)
SEMI E102-0600 © SEMI 200035
R1-2.3 Scenario Three — Base Scenario for Batch Delivery from Stocker to Production Equipment
16: Transfer Command to stk7 (carrier aaa, src shelf, dest stk7/Bay_Out) (Stocker SEM)
2: requestBatchTransportJob(JobType Transport, Priority 1, Deadline time1, Container aaa, DestinationMachine eq3, DestinationPort Eq3/port1,
JobType Transport, Priority 1, Deadline time1, Container bbb, DestinationMachine eq3, DestinationPort Eq3/port2,
aJobRequestor factory)
3: Return Job Handles TrJob1, TrJob2
6: informJobStateChange(Job TrJob1, previousState JobQueued, newState JobExecuting)
12: informJobStateChange(Job TrJob2, previousState JobQueued, newState JobExecuting)
7: makeInTransit()
13: makeInTransit()
8: MaterialContainerStateChangedEvent
14: MaterialContainerStateChangedEvent
MTSC reserves and manages AMHS equipment capacity (Internal Service)
MTSC determines AMHS Route (Internal Service)
17: Transfer Command Updates (Stocker SEM)
18: Transfer Command Complete (Stocker SEM)
19: Transfer Command to Ohs2 (carrier aaa, src stk7/Bay_Out, dest stk8/Bay_In) (IBSEM)
20: Transfer Command Updates (IBSEM)
21: setMaterialTrackingLocation(MaterialTrackingLocation ohs2)
23: Transfer Command Complete (IBSEM)
24: setMaterialTrackingLocation(MaterialTrackingLocation stk8)
MTSC reserves and manages AMHS equipment capacity (Internal Service)
MTSC determines AMHS Route (Internal Service)
26: Transfer Command to stk7 (carrier bbb, src shelf, dest stk7/Bay_Out) (Stocker SEM)
27: Transfer Command Updates (Stocker SEM)
28: Transfer Command Complete (Stocker SEM)
29: Transfer Command to Ohs2 (carrier bbb, src stk7/bay_Out, dest stk8/Bay_In) (IBSEM)
30: Transfer Command Updates (IBSEM)
`
31: setMaterialTrackingLocation(MaterialTrackingLocation ohs2)
22: DurableLocationChangedEvent
25: DurableLocationChangedEvent
4: JobStateChangedEvent(..previousState JobUndefined, newState JobQueued)
5: JobStateChangedEvent(..previousState JobQueued, newState JobExecuting)
9: getUnit()
1: setUnit(unitvalue)
11: JobStateChangedEvent(..previousState JobQueued, newState JobExecuting)
15: getUnit()
10: JobStateChangedEvent(..previousState JobUndefined, newState JobExecuting)
Factory
Operations
Durable
Management
MTSC AMHS Equipment
Controllers

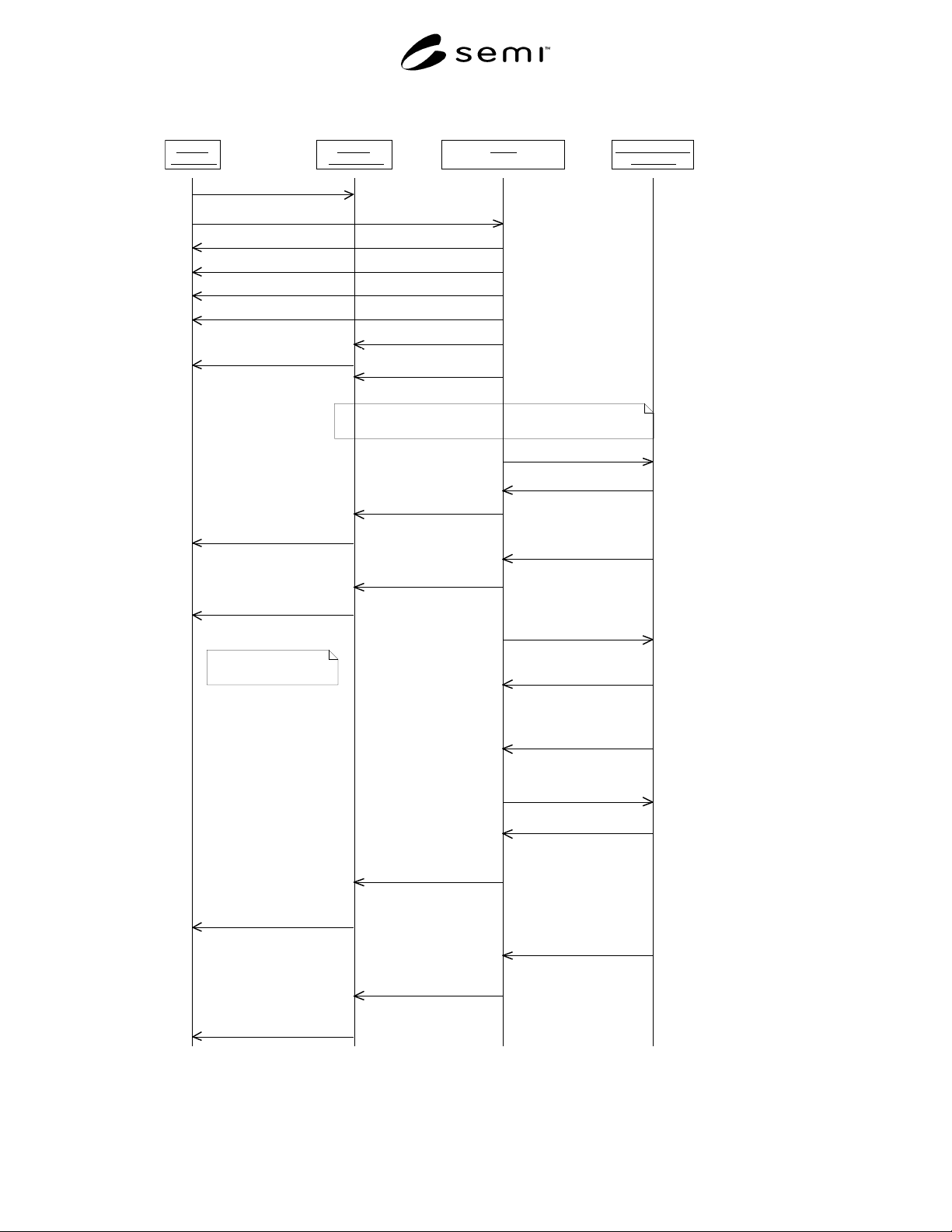

Figure R1-6
Scenario Case 3
