User manual SIPLACE E 3 Technical data and assemblies From software version SC 708.0 05/2015 Edition 3.6 PCB conveyor system 137 3.6.4 Definition of PCB warpage 3.6.4.1 PCB warpage on the conveyor PCB warpage across the …
3 Technical data and assemblies User manual SIPLACE E
3.6 PCB conveyor system From software version SC 708.0 05/2015 Edition
136
3.6.3 Controlling and width adjustment
3.6.3.1 Controlling using the Single Functions menu
The online help contains information on controlling the PCB conveyor system and on the Single
Functions menu.
3.6.3.2 Automatic width adjustment
When the command is received, the conveyor belts are set to the desired width.
See the Online Help for detailed information about changing the conveyor track width.
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 05/2015 Edition 3.6 PCB conveyor system
137

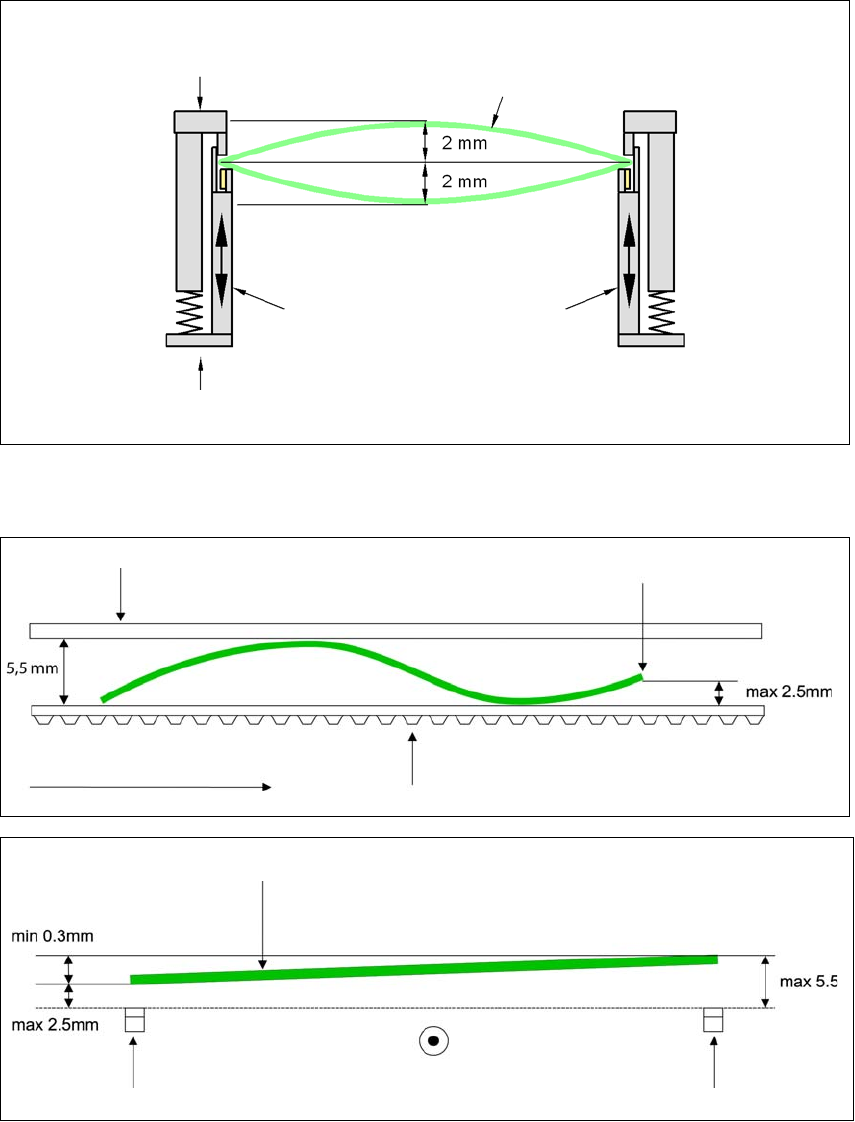

3.6.4 Definition of PCB warpage
3.6.4.1 PCB warpage on the conveyor
PCB warpage across the direction of travel max. 1% of the PCB diagonal, but not exceeding 2 mm
3
PCB warpage in the direction of transport + PCB thickness < 5.5 mm. Bending up of board edge
max. 2.5 mm.
3
3
Fixed clamped edge
Movable clamping device
Printed circuit board
Conveyor side wall
Fixed clamped edge
Conveyor belt
PCB transport direction
Front board edge
Front board edge
Left conveyor belt
Right conveyor belt
PCB transport direction
3 Technical data and assemblies User manual SIPLACE E
3.6 PCB conveyor system From software version SC 708.0 05/2015 Edition
138
3.6.4.2 PCB warpage during placement
A warpage of 2 mm can lead to problems focussing on local fiducials and ink spots in the middle
of the PCB. The digital camera's focus is 2 mm. When all the tolerances are taken into account,
this value is reduced to 1.5 mm. Also note that the component height is reduced by the warpage.
3
3
PCB warpage down, max. 0.5 mm
3
Use magnetic pin supports to achieve this value.
Movable clamping device
Fixed clamped edge
Printed circuit board
Conveyor side wall
Printed circuit board
Magnetic pin
support
Movable clamping device
Fixed clamped edge
Conveyor side wall
0.5 mm
