User manual SIPLACE E 3 Technical data and assemblies From software version SC 708.0 05/2015 Edition 3.10 Changeover t ab le for SIPLACE E 159 3.10.5 Changeover tab le for SIPLACE E The front slid er guides o f the feede…
3 Technical data and assemblies User manual SIPLACE E
3.10 Changeover table for SIPLACE E From software version SC 708.0 05/2015 Edition
158
3.10.4 Fiducial on the changeover table
3

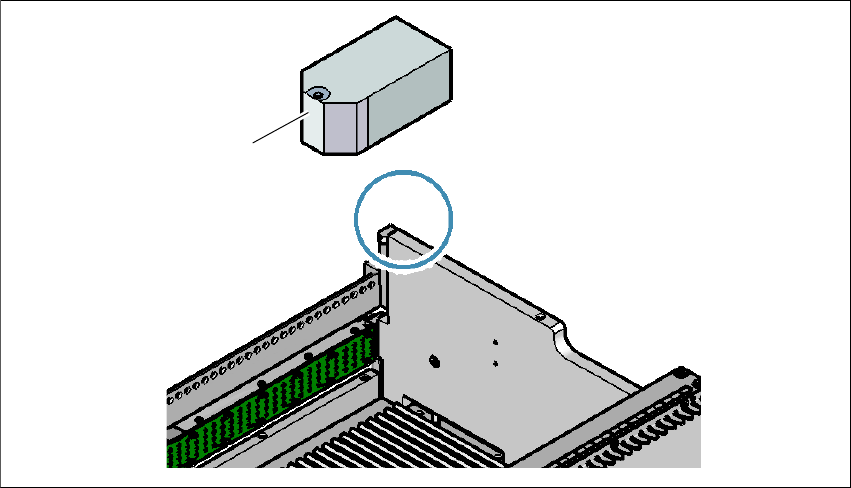

Fig. 3.10 - 4 Fiducials on the changeover table
(1) Fiducial on the changeover table
Once the SIPLACE changeover table has been docked in, the machine measures the fiducial on
the changeover table.
For components with an edge length of less than 0.5 mm, i.e. 0402 components and smaller, the
position of the component is determined with the tape pocket before the first component is picked
up.
(1)
User manual SIPLACE E 3 Technical data and assemblies
From software version SC 708.0 05/2015 Edition 3.10 Changeover table for SIPLACE E
159
3.10.5 Changeover table for SIPLACE E
The front slider guides of the feeder modules are placed on the insertion aid. As it is pushed in,
the guides of the feeder module slide on the guide profile as far as the stop bar. A centering hole
on the stop bar holds the "front" centering pin of the SIPLACE SmartFeeder E. At the same time,
the locking latch of the changeover table latches onto the locking roller of the feeder module. The
"back" centering pin on the top of the feeder module is held by the recess in the centering bar.
3
Fig. 3.10 - 5 Changeover table, back view
(1) Insertion aid
(2) Guide profile
(3) Locking bar to guide and lock the SIPLACE SmartFeeder E in place
(4) Centering bar
(1)
(2)
(3)
(4)
3 Technical data and assemblies User manual SIPLACE E
3.10 Changeover table for SIPLACE E From software version SC 708.0 05/2015 Edition
160
3
Fig. 3.10 - 6 Changeover table, front view
(1) Contact for switching the safety switch of the EMERGENCY STOP circuit
(2) Centering pin on the changeover table
(3) Waste tape container
(1)
(2)
(2)
(3)
