4 Setting up and commissioning User manual SIPLACE E 4.3 Setting up the machine From software version SC 708.0 05/2 01 5 Edition 186 Loosen the locking screw (2) . This locking screw fixes the machine feet (3) and prev…
User manual SIPLACE E 4 Setting up and commissioning
From software version SC 708.0 05/2015 Edition 4.3 Setting up the machine
185
4.3.6 Setting the machine height 900 mm to 930 mm
The machine stands on 4 feet.
4

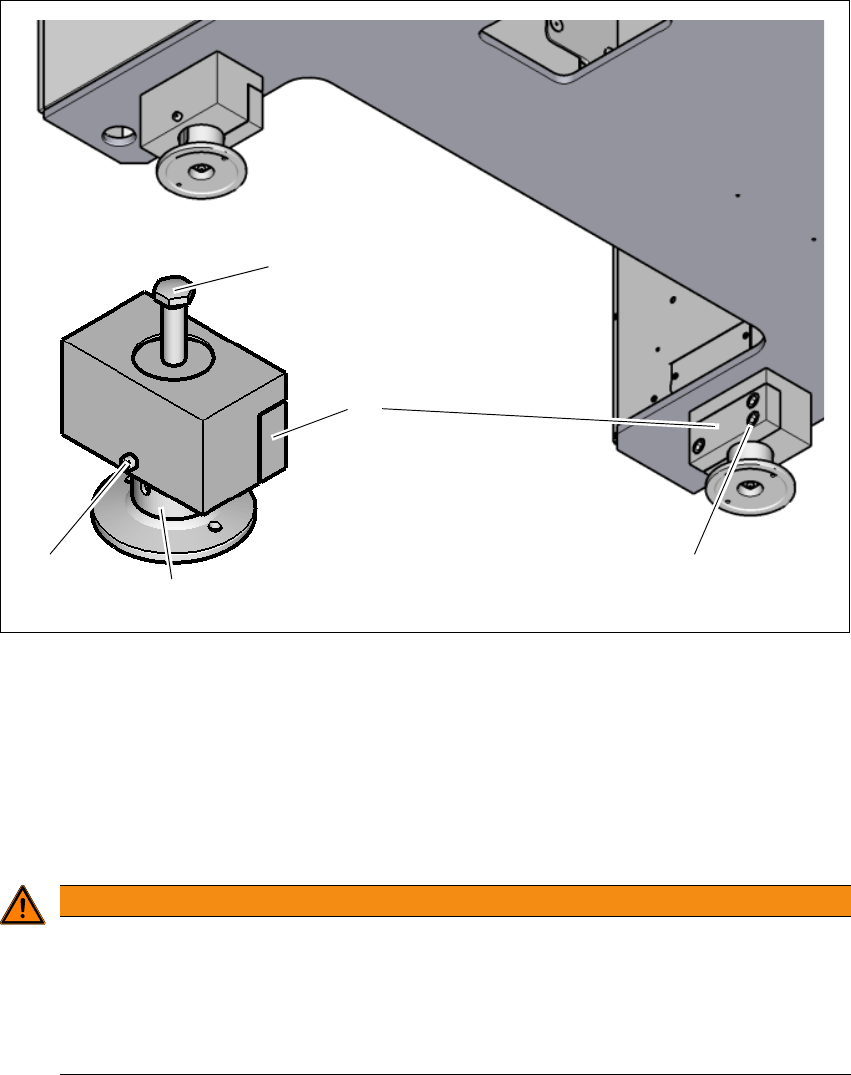

Fig. 4.3 - 2 Adjusting the height from 900 mm up to 930 mm
(1) Setting screw for adjusting the height
(2) Locking screw
(3) Machine feet
(4) Clamping
(5) Three clamping screws
4
WARNING
Risk of injuries!
After loosening the clamps, the machine feet could still fall out, despite being secured with
the grub screw in the groove, and could then injure hands and feet.
Hold the machine feet while fastening, to prevent it falling down.
Take care that your hands and feet can not be hit.
(3)
(1)
(2)
(4)
(5)
4 Setting up and commissioning User manual SIPLACE E
4.3 Setting up the machine From software version SC 708.0 05/2015 Edition
186
Loosen the locking screw (2). This locking screw fixes the machine feet (3) and prevents it
falling down as soon as the clamp has been loosened.
Loosen the three clamping screws (5) on the adapter (6).
Loosen the other three machine feets (3) in the same manner.
Use the 30 mm spanner to adjust the height of each machine feet (3) at the setting screw (1),
so that the relevant conveyor height is achieved.
Align the machine in the X and Y direction with the machine spirit level.
4
Tighten the clamping screws (5) of each machine feet to a torque of 130 Nm.
Tighten the locking screws (2) of each machine feet.
PLEASE NOTE
For a description of how to align the machine in the X and Y directions, refer to the section
4.3.7
, page 189.
User manual SIPLACE E 4 Setting up and commissioning
From software version SC 708.0 05/2015 Edition 4.3 Setting up the machine
187
4.3.6.1 Conveyor height 950 (Option)
Item no. 03111069-xx Conveyor height 950 block
4
Fig. 4.3 - 3 Conveyor height 950 block
(1) Block
(2) Bracket
(1)
(2)
