User manual SIPLACE E 5 Working with the machine From software version SC 708.0 05/2015 Edition 5 .6 The user inte rface 209 Locations The se tup can be individ ually opened for ea ch of the 2 locations. Allows you to ch…
5 Working with the machine User manual SIPLACE E
5.6 The user interface From software version SC 708.0 05/2015 Edition
208
Board processing terminated
If processing is terminated, the PCB icon will be shown in red.
Check the board
If the board is in the output conveyor and the board status needs to be checked by the operator,
the PCB icon will be shown in yellow.
5.6.3 Toolbar
The toolbar contains buttons for the main station software functions.
These enable you to switch the user interface over to other views and to use the functions avail
-
able there (see section 5.6.5
, page 212).
5

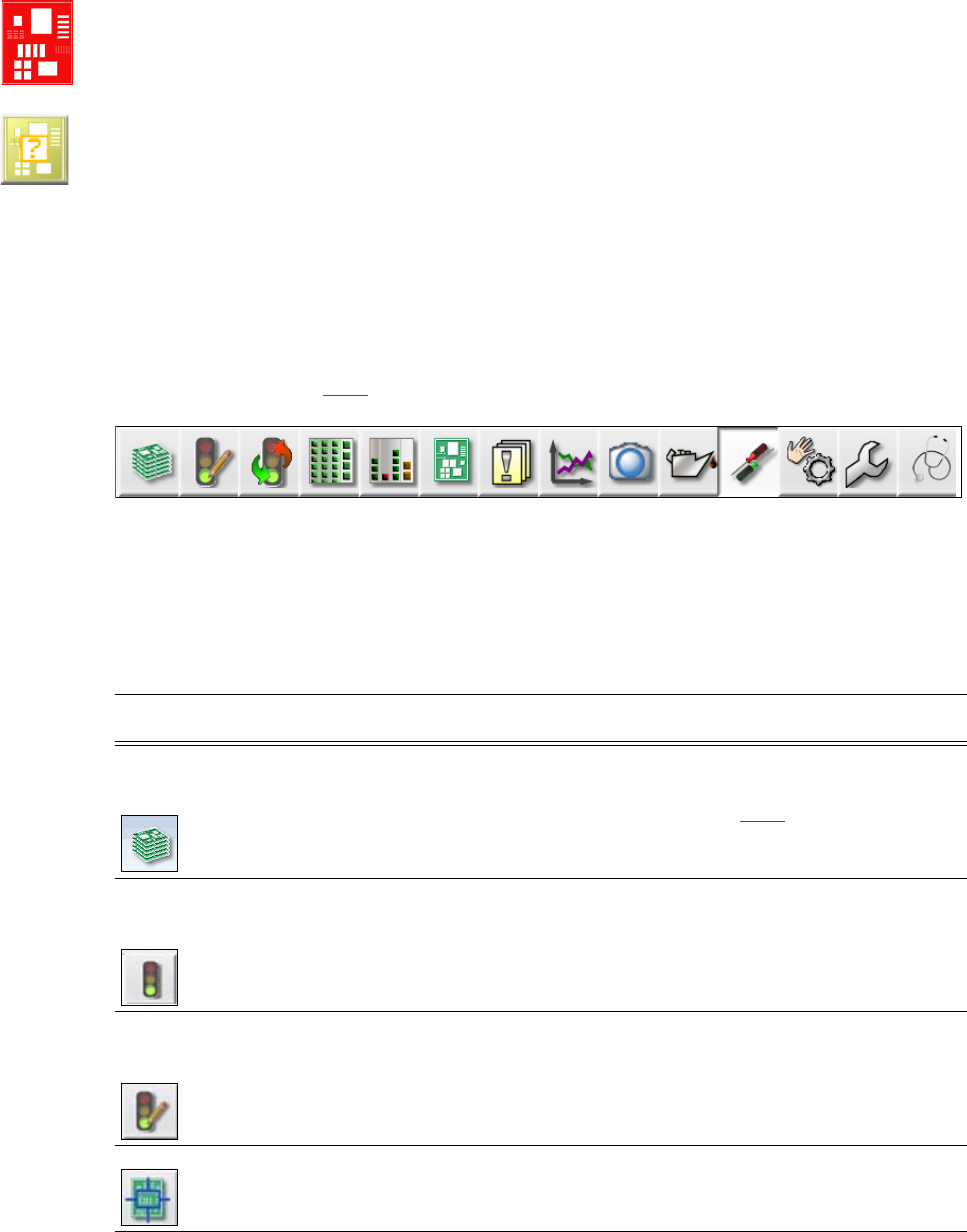

Fig. 5.6 - 2 Toolbar
The buttons vary according to your individual configuration and the operator level set. Some views
are only available in higher operator levels.
The following table briefly describes the buttons and main functions.
5
Icon View Description
Production
(main view)
Shows the machine status for the most frequently performed tasks
during production.
Shows the operating states, see section 5.6.2
, page 207.
Shows locations, name of setup, name of recipe, configuration
changes and additional options.
Job editor Opens the Job editor for SIPLACE Station Programming. The job
editor allows the user to perform any edit actions in a job. A job in
SIPLACE Station Programming consist of one or more boards and
a setup.
Only available from operator level Advanced Production.
Job control Opens the Job control for SIPLACE Station Programming.
In the job control dialog you can see which board is being produced;
you can stop/start the production of other boards and select a board
for teaching purposes.
Only available from operator level Advanced Production.
Teach job Opens the Teach job for SIPLACE Station Programming.
The teach job completes the parameterization of elements within
the job.
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 05/2015 Edition 5.6 The user interface
209
Locations The setup can be individually opened for each of the 2 locations.
Allows you to check and configure feeder modules, components
and nozzles.
Allows you to teach component shapes and component pocket
shapes.
Shows the component level indicator.
Filling level Check state of feeders filling level.
Board Shows the boards and placement positions list.
Allows you to check and configure boards and components.
Allows you to teach fiducials.
Messages Shows notifications about current and previous events. The notifi
-
cations vary according to their type. Individual tables can be viewed
for track errors, conveyor errors, machine errors, general errors and
linked error messages (see section 5.7
, page 214).
Statistics Shows the statistics for performance, quality and rejected material.
Shows the machine and board performance.
Starts the OIS (Operator Information System), for more information
refer to the OIS documentation.
SIPLACE Vision
live images
Shows the individual live camera images.
Allows you to view and save the Vision dump.
Maintenance Contains information about the maintenance status of the machine.
Refer to the maintenance guide for further information.
Settings Contains all the settings and options.
Allows you to set the operator level and the user interface language.
Allows you to display and edit the machine settings, user settings,
machine options and software options, see section 5.6.5
, page 212.
Manual opera
-
tions
Contains information and functions for tests and diagnoses.
Allows you to set the action performed when you press the start
button.
Allows you to test the complete reference run and head functions.
Single functions and continuous runs. Each gantry is addressed
individually.
Service Service tools.
Only available from operator level Machine service.
Allows you to set up and calibrate the SIPLACE placement ma
-
chines, download embedded software versions, calibrate and con
-
figure the entire machine.
Icon View Description
5 Working with the machine User manual SIPLACE E
5.6 The user interface From software version SC 708.0 05/2015 Edition
210
Test bench in
-
spection
Only available from operator level Machine service.
For a detailed description of the test bench inspection functions
refer to the Online Help.
Icon View Description
