User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 05/2015 Edition 5.7 Messages and online help
215
5.7.1 "Viewing information about the current alert
5

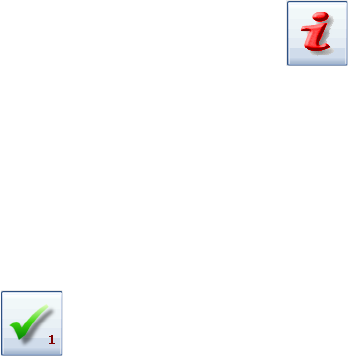

To view information about the current alert, click on the red icon to start the help system
for the station computer.
The main window of the help system will open with alert information. The information refers to the
alert currently shown and from which the help function was started.
Once an alert has been resolved and the solution has been automatically determined by the ma
-
chine, this alert will be automatically removed from the status field.
If the solution is not recognized automatically, the alert can also be manually deleted from the sta
-
tus field.
To do this, click on the icon; the alert message will no longer be shown in the status field.
5 Working with the machine User manual SIPLACE E
5.7 Messages and online help From software version SC 708.0 05/2015 Edition
216
5.7.2 Viewing information about current and past messages
Click on the button in the toolbar (1).
Click on the "Display current messages" (2) button. All the messages which occurred will be
listed.
. 5
Fig. 5.7 - 2 Example:alert list (example)
Please refer to the online help of the station software to get more informations.
5.7.3 Color coding in the online help alert information
5
(1)
(2)
(3)
Text highlight Meaning
Red text Alert number and message
Black text Possible cause(s) of alert
Green text Instructions for solving the alert
Blue underlined text Open additional information
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 05/2015 Edition 5.7 Messages and online help
217
5.7.4 Context-sensitive online help
To see information about the current view, click on the icon to start the help system for the
station computer. The main window of the help system will open with alert information. The infor
-
mation refers to the view currently shown and from which the help function was started. Use the
list of contents, index and the search function to view the contents of the Online Help.
