5 Working with the machine User manual SIPLACE E 5.10 Carrying out a sight check From software version SC 708.0 0 5/2015 Edition 228 5.10.4 Ins erting separating pla tes into the tape container The separating plate ha …
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 05/2015 Edition 5.10 Carrying out a sight check
227
5.10.3 Checking the support pins
Check the position of the support pins on the lifting table:
– Make sure that the support pins do not collide with components on the underside of the
PCBs.
– In addition, make sure that the support pins do not collide with the PCB conveyor panels.
5 Working with the machine User manual SIPLACE E
5.10 Carrying out a sight check From software version SC 708.0 05/2015 Edition
228
5.10.4 Inserting separating plates into the tape container
The separating plate has different edges and can be inserted into the tape container in two
ways. If spindles are used, the recesses for the spindles in the separating plate point up
-
wards. If you do not use spindles, the
rounded
edge of the separating plate points up.
Insert the separating plates as shown in fig. 5.10 - 2 and remember that the smallest division
of the tape container is a 2x division. This will help avoid placement errors.
Check that the separating plates engage in the same positions on the three guide rails. Oth
-
erwise the separating plate will be offset or bent.
5

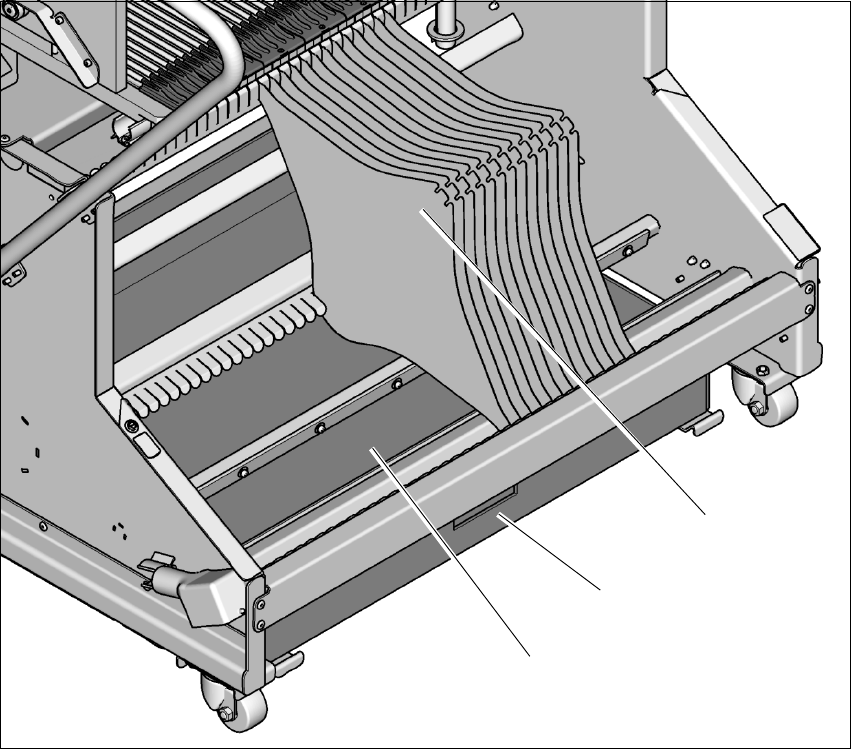

Fig. 5.10 - 2 Separating plates in the tape container
(1) Waste tape container
(2) Tape container
(3) Separating plates
(1)
(3)
(2)
User manual SIPLACE E 5 Working with the machine
From software version SC 708.0 05/2015 Edition 5.11 Setting up the feeder modules
229
5.11 Setting up the feeder modules
5.11.1 Notes on handling feeder modules
Feeder modules are precision devices. You should therefore handle the feeder modules with care.
Avoid bumping feeder modules into obstacles.
Do not drop the feeder modules.
Always use suitable tools for cleaning and checking.
5.11.2 Removing SIPLACE SmartFeeder E from the changeover table
5

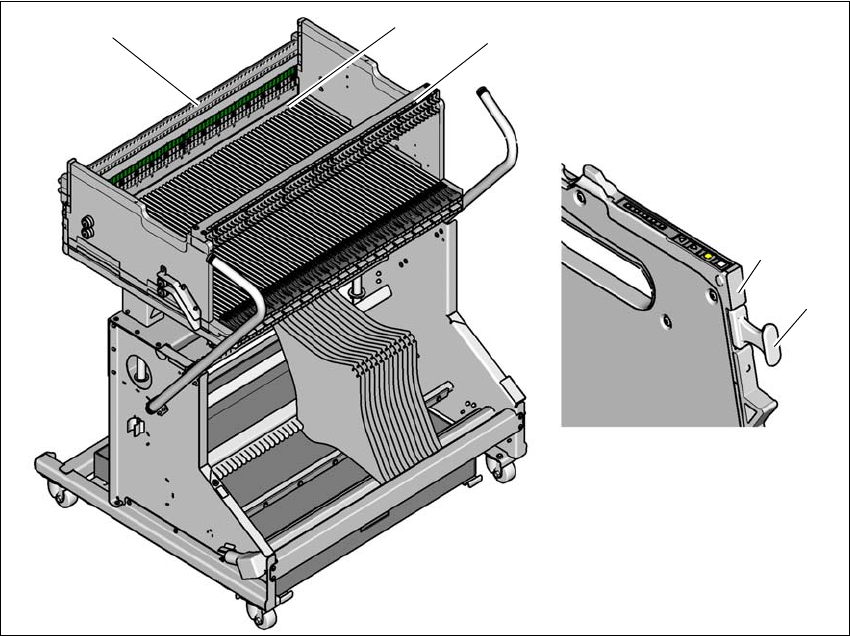

Fig. 5.11 - 1 Removing SIPLACE SmartFeeder E from the changeover table
(1) Removal handle
(2) Status display
(3) Feeder locking bar
(4) Stop bar
(5) Centering bar
(1)
(2)
(5)
(4)
(3)
