User manual SIPLACE E 6 Station extensions From software version SC 708.0 05/2015 Edition 6.1 Nozzle change r 263 6.1.2.3 Position of nozzle changer for the SIPLACE TH 6 Fig. 6.1 - 8 Position of nozzle changer for the SI…
6 Station extensions User manual SIPLACE E
6.1 Nozzle changer From software version SC 708.0 05/2015 Edition
262
6.1.2.2 Technical data
6
6
Nozzle changer for the SIPLACE TH
Number of nozzle holders max. 16 for standard nozzles
4 for special nozzles or grippers
Nozzle types 5xx, standard
4xx with adapter
8xx with adapter
9xx with adapter
Nozzle changeover time Approx. 2 s per nozzle
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 05/2015 Edition 6.1 Nozzle changer
263
6.1.2.3 Position of nozzle changer for the SIPLACE TH
6
Fig. 6.1 - 8 Position of nozzle changer for the SIPLACE TH - example
6
(1) Changeover table on location 1
(2) Changeover table on location 2
(NC) Nozzle changer
(RB) Reject bin
(PA) Placement area
(GA) Gantry
(2)
(1)
6 Station extensions User manual SIPLACE E
6.1 Nozzle changer From software version SC 708.0 05/2015 Edition
264
6.1.2.4 Assembly
In SIPLACE E machines, the nozzle changers are installed on the machine frame.
6

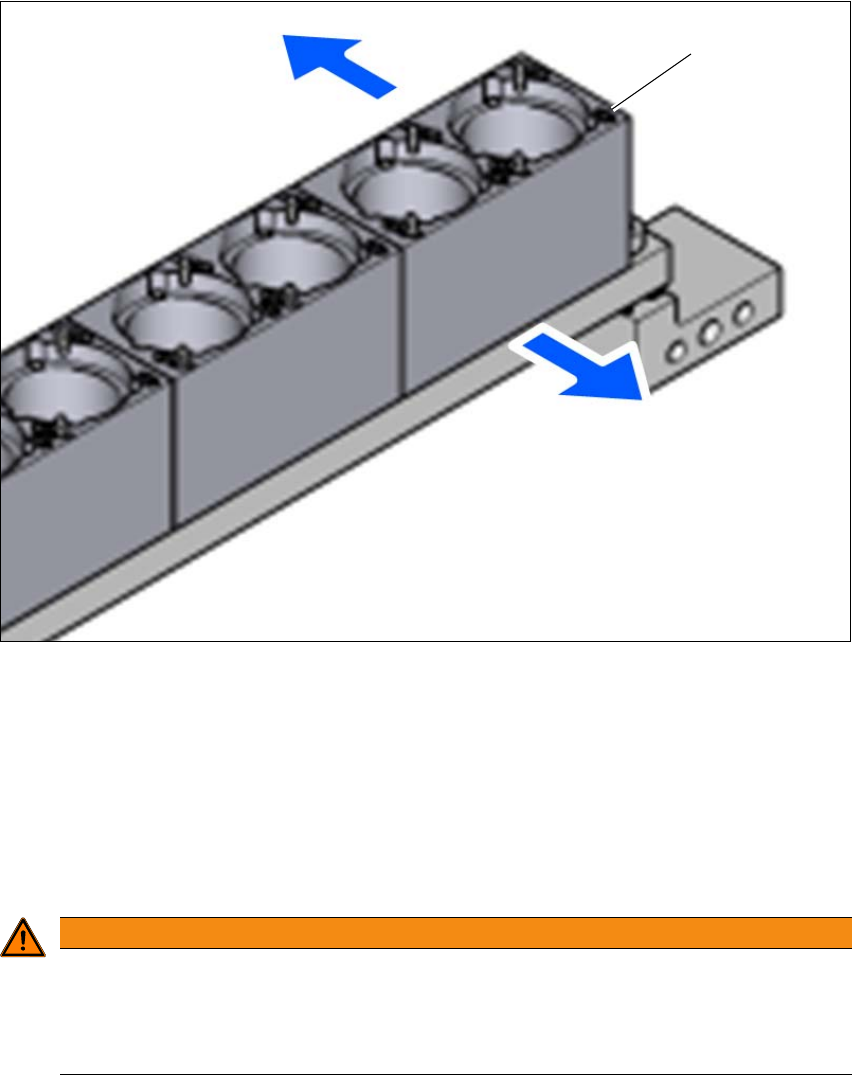

Fig. 6.1 - 9 Assembly position
(1) Marking hole
(2) Arrow pointing toward the PCB conveyor
(3) Operator side
6
Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op
-
erator.
6
6
WARNING
Risk of head crashes with mixed configurations!
There is a risk of head crashes with mixed configurations.
Only install the associated nozzle changer for each placement head, with the nozzle
magazines for the respective placement head.
(1)
(3)
(2)
