6 Station extensions User manual SIPLACE E 6.3 SIPLACE JTF-MW From software version SC 708.0 05/2015 Editio n 284 6.3 SIPLACE JTF-MW Item no. 031188 94-xx SIPLACE JTF-MW 6 Fig. 6.3 - 1 SIPLACE JTF-MW (1) Lifting motor co…
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 05/2015 Edition 6.2 Operator panel (HMI) on location 2
283
6.2 Operator panel (HMI) on location 2
Item no. 03113590-xx Human-Machine-Interface, loc2
For machines with only one operator panel (HMI) on location 1, you can retrofit an additional HMI
to location 2.
6
Fig. 6.2 - 1 Operator panel (HMI) on location 2
6 Station extensions User manual SIPLACE E
6.3 SIPLACE JTF-MW From software version SC 708.0 05/2015 Edition
284
6.3 SIPLACE JTF-MW
Item no. 03118894-xx SIPLACE JTF-MW
6

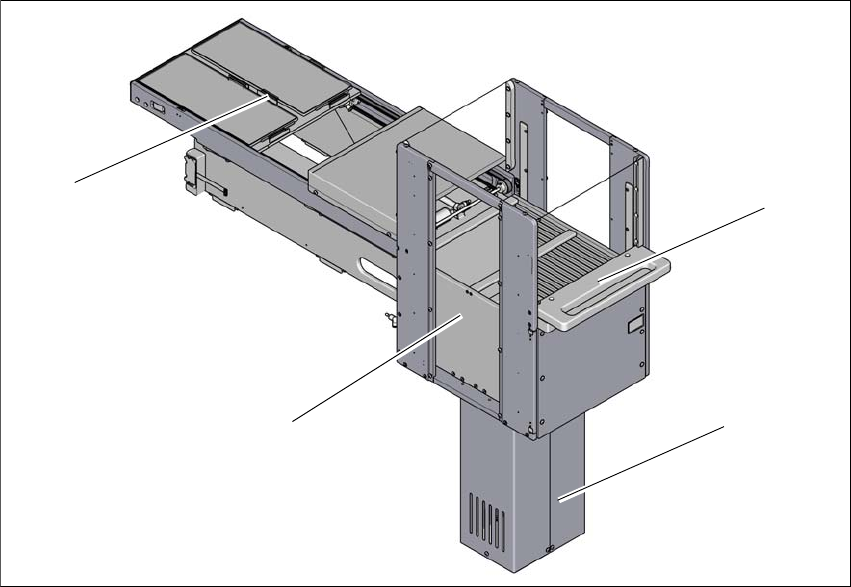

Fig. 6.3 - 1 SIPLACE JTF-MW
(1) Lifting motor cover
(2) Feed pusher assy
(3) Conveyor
(4) Tower module with magazine
6.3.1 Description
The SIPLACE JTF-MW is an automatic and fast changer for standard JEDEC waffle pack
trays.On SIPLACE E machines, a JTF-MW tray feeder can be installed on a changeover table.
The SIPLACE JTF-MW occupies a fixed area of tracks on the changeover table.
– SIPLACE JTF-MW
The SIPLACE JTF-MW stores up to 30 JEDEC waffle pack trays in an cassette and supplies
them as required.The placement machine can therefore be supplied with different component
types at variable changeover times. 6
(2)
(1)
(3)
(4)
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 05/2015 Edition 6.3 SIPLACE JTF-MW
285
6.3.2 Overview
6

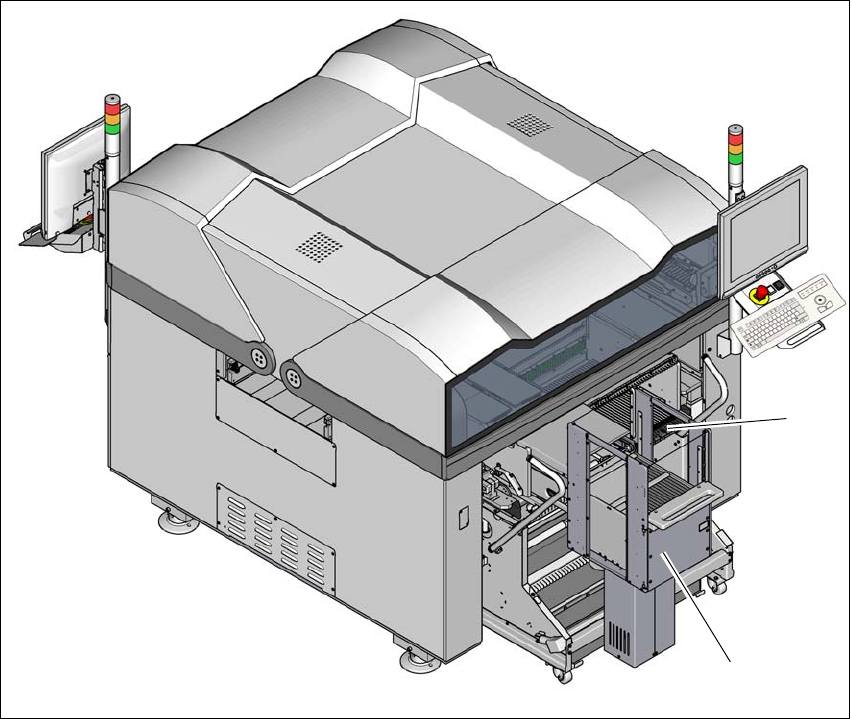

Fig. 6.3 - 2 SIPLACE JTF-MW on SIPLACE E
(1) Changeover table
(2) SIPLACE JTF-MW
(1)
(2)
