User manual SIPLACE E 6 Station extensions From software version SC 708.0 05/2015 Edition 6.3 SIPLACE JTF-M W 291 Warning label heavy weight Quantity per SIPLACE JTF-MW: 1 6 6 6 Heavy weight ! The heavy weight of the SIP…
6 Station extensions User manual SIPLACE E
6.3 SIPLACE JTF-MW From software version SC 708.0 05/2015 Edition
290
6.3.5.5 Warning labels on the SIPLACE JTF-MW
6

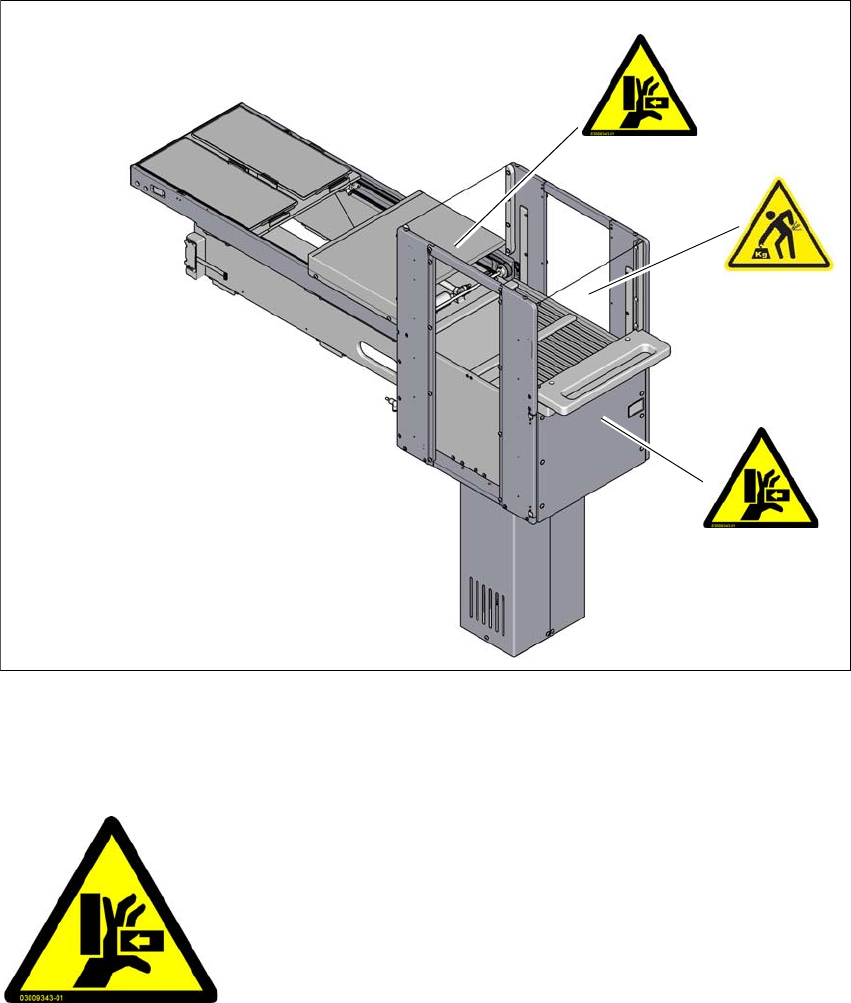

Fig. 6.3 - 4 Warning labels on SIPLACE JTF-MW
– W204, item no. 03009343-01
Warning label W204
6
Quantity per SIPLACE JTF-MW: 2
W 204
W 204
Heavy weight
6
6
6
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the SIPLACE JTF-MW while it is running
User manual SIPLACE E 6 Station extensions
From software version SC 708.0 05/2015 Edition 6.3 SIPLACE JTF-MW
291
Warning label heavy weight
Quantity per SIPLACE JTF-MW: 1
6
6
6
Heavy weight!
The heavy weight of the SIPLACE JTF-MW (
~ 60 Kg) could cause
injuries if the module is not handled correctly.
Do not lift or carry the module alone.
Use lifting aids and proper lifting techniques when removing
or replacing.
You might need to enlist the help of a second person.
6 Station extensions User manual SIPLACE E
6.4 Manual Tray holder E From software version SC 708.0 05/2015 Edition
292
6.4 Manual Tray holder E
Item no. 03113012-xx Manual Tray holder E Speed
Item no. 03113327-xx Manual Tray holder E Flex
6

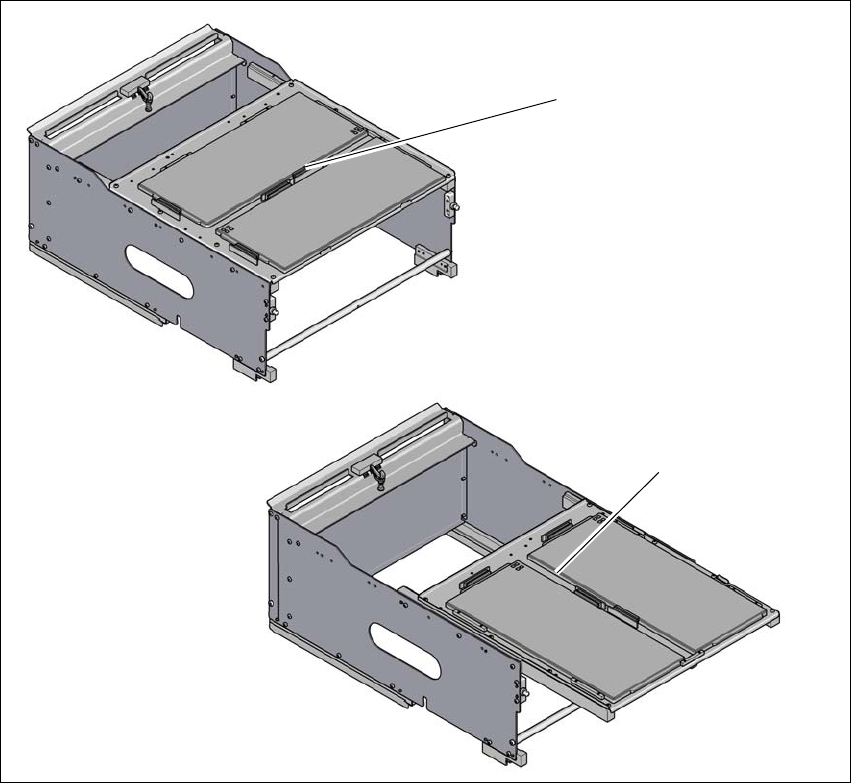

Fig. 6.4 - 1 Manual Tray holder E
(1) Manual Tray holder E Speed
(2) Manual Tray holder E Flex
Manual tray holder is used at Location 2 of an SIPLACE E, to provide tray support for 2x standard
JEDEC trays at one time. Components can be made available quickly on JEDEC trays with the
help of the manual tray holder.
If the tray holder is not present, you can use all 60 feeder tracks on the SIPLACE E changeover
table or the fixed table. When the SIPLACE E is a single sided machine, there is a plate (Arbitray
Plate E) instead of the changeover table/fixed table that allows a manual tray holder setup.
(1)
(2)
