User manual SIPLACE E 2 Operational safety From software version SC 708.0 05/2015 Edition 2.2 Warning label s 49 2.2.2 Warning labels in the machine Fig. 2.2 - 5 Warning labels in the machine - part 1 2 – W202 Shared, it…

100%1 / 308
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 05/2015 Edition
48
2.2.1.7 Warning label W204
2
W204 in fig. 2.2 - 1, page 41 and 2.2 - 2, page 42, item no. 03009343-01
Quantity per machine:
SIPLACE E double sided: 4 2
SIPLACE E single sided: 4 2
2.2.1.8 W-General warning, label on the monitor
2
W-General warning label in fig. 2.2 - 1 on page 41, 2.2 - 2 on page 42, 2.2 - 3 on page 43
and 2.2 - 4 on page 44
Quantity per machine:
SIPLACE E double sided: 2 2
SIPLACE E single sided: 1 2
2
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
2
2
2
GENERAL WARNING -
RISK OF ABRASION AND PART DAMAGE!
Remove the USB from the side port after loading the pro
-
gram.
Failure to remove may cause abrasion/minor cuts or damage to
USB port when come into contact.
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 05/2015 Edition 2.2 Warning labels
49
2.2.2 Warning labels in the machine

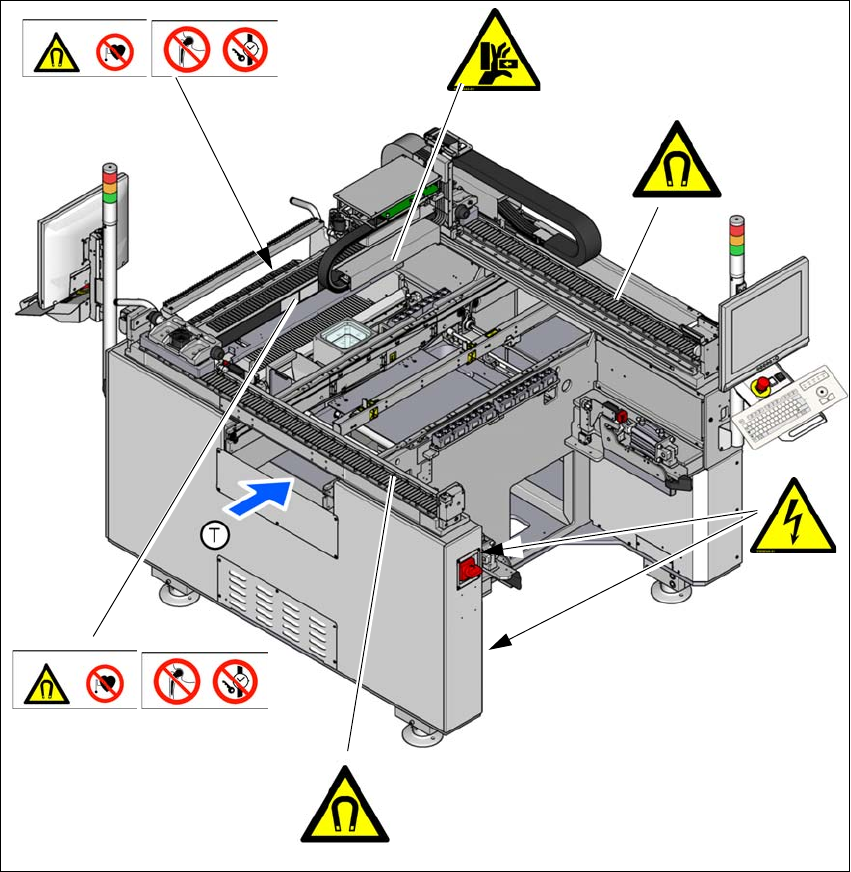

Fig. 2.2 - 5 Warning labels in the machine - part 1
2
– W202 Shared, item no. 03012700-01 (on both sides of the gantry)
– W-Magnetic field, on Y axis
– W204, item no. 03009343-01 on the cover of the trailing IF/VBI
– W206, on the side cover of the main switch
– W206, on the cover of the MGCU
W-Magnetic field
W 202 Shared
W-Magnetic field
W 202 Shared
W206
W204
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 05/2015 Edition
50

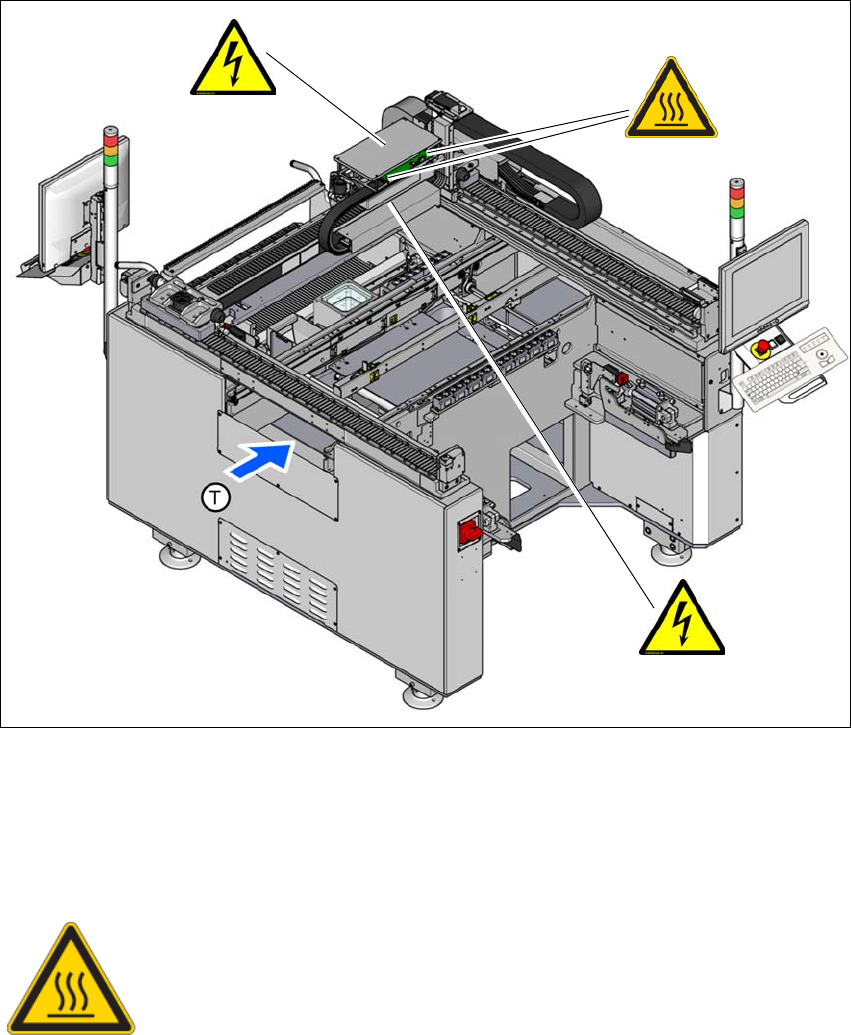

Fig. 2.2 - 6 Warning labels in the machine - part 2
– W206, on the cover of the MHCU
– W206, on the cover of the trailing IF/VBI
– W-Hot surface, on the MHCU (under the cover)
Hot surface label in fig. 2.2 - 6, page 50, item no. 03031926-01 (2 labels on the MHCU)
W206
W206
(W-Hot surface
2
RISK OF BURNS FROM HOT SURFACE!
The housing of the Head Control Unit (MHCU) can become hot during con
-
tinuous operation.
Take care when touching the Head Control Unit (MHCU).
