User manual SIPLACE E 2 Operational safety
From software version SC 708.0 05/2015 Edition 2.2 Warning labels
59
2.2.6 Warning label on the Cekon Plug
2

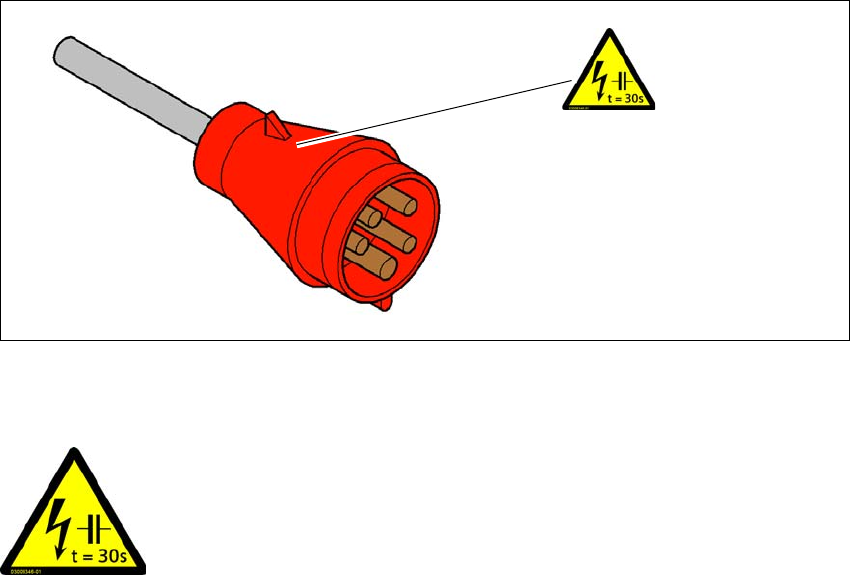

Fig. 2.2 - 12 Cekon plug
– W211, on the Cekon plug
2
W211 in fig. 2.2 - 12, page 59, item no. 03009351-01.
W211
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the capac
-
itors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
2 Operational safety User manual SIPLACE E
2.2 Warning labels From software version SC 708.0 05/2015 Edition
60
2.2.7 Warning labels power supply unit

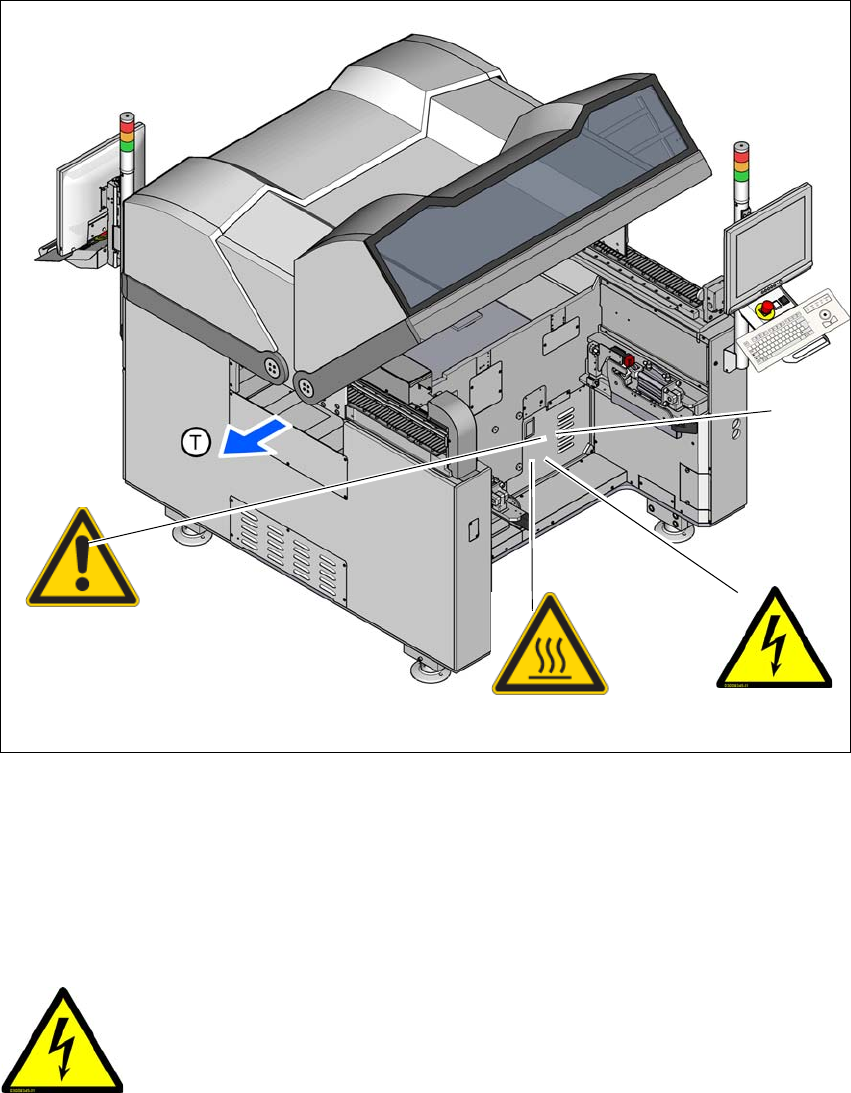

Fig. 2.2 - 13 Warning labels of the power supply unit position
(1) Position of the power supply (behind the cover)
– W206 on the position of the power supply
– W-High temperatures
– W- General warning
2
W206 in fig. 2.2 - 13, page 60, item no. 03009345-01.
W206
(1)
W-High temperatures
W-General warning
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User manual SIPLACE E 2 Operational safety
From software version SC 708.0 05/2015 Edition 2.2 Warning labels
61
2
High temperatures label in 2.2 - 13, page 60, item no. 03113901-01
General warning in fig. 2.2 - 13, page 60, item no. 03079298-01
2
RISK OF BURNS FROM HIGH TEMPERATURES!
Hot surface may cause burn. Power supply modules behind the cover be
-
come hot during continuous operation.
Do not touch during power-on and immediately after power-off.
2
GENERAL WARNING - RISK OF FIRE AND PART DAMAGE!
Be cautious when power supply is in slide-out location.
Handle the power supply unit with cautious to prevent any foreign ob
-
jects from dropping into housing of power modules.
